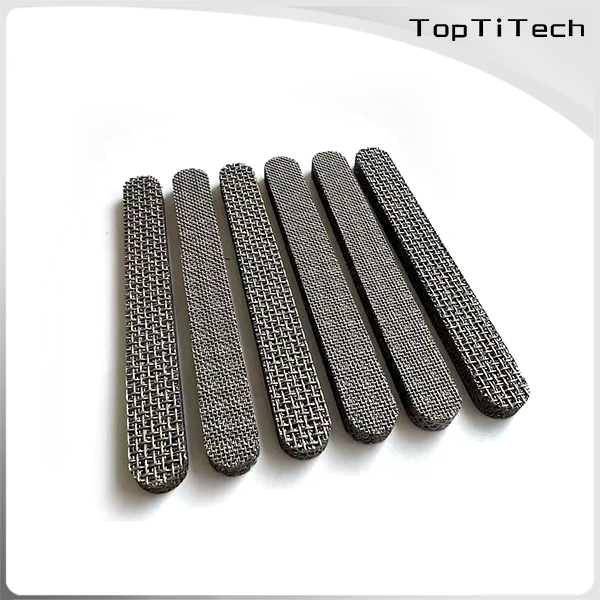

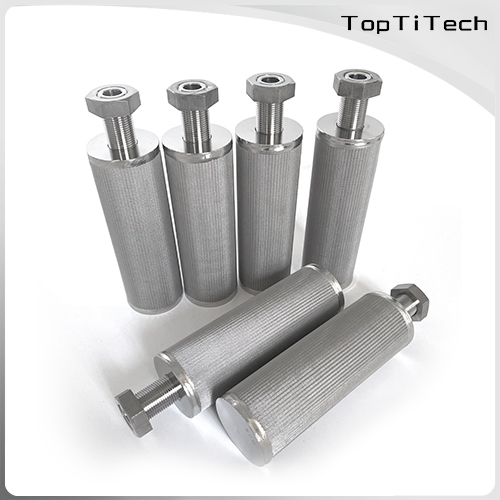

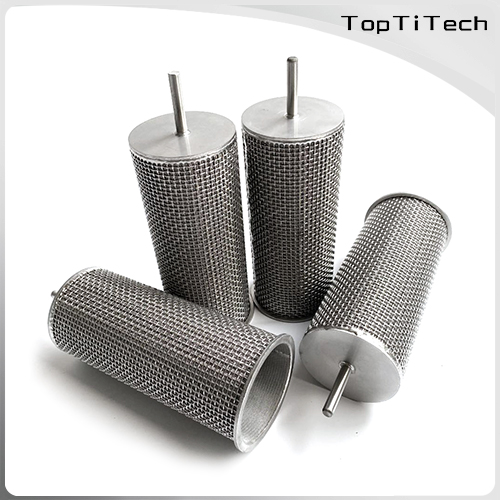

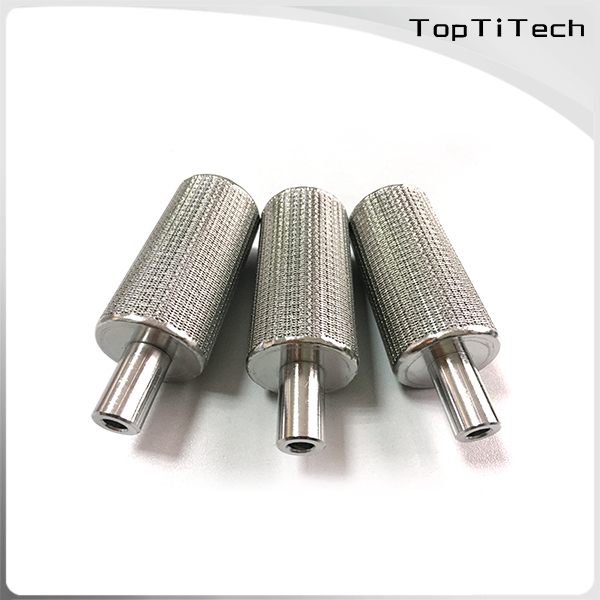

Multi-layer sintered metal mesh filter self backwashing 50um

Product Introduction

Multi-layer sintered metal mesh filters combine the advantages of woven wire mesh, with micron-level pore sizes and a diffusion-bonded wire mesh laminated plate, to provide mechanical strength and stability. Typically, fine woven metal wire mesh filters are placed within multiple layers of sintered laminated plates to protect the fine mesh from mechanical damage caused by environmental pressure. 5-layer sintered laminated plates are commonly used for sintered wire mesh filters.

Due to their stability, mechanical strength, and durability, multi-layer sintered metal mesh filters can be made into various sintered filter elements, such as cylinders, filter cartridges, candles, and discs. TOPTITECH provides customized sintered wire mesh filters to meet your specific requirements. We are committed to providing customers with high-quality filtration solutions, ensuring stability and efficiency in various applications.



Parameters

Material: SUS334L SUS316L

layers: single layer, 2 to 3 layers, 5 layers, and 6 layers or customized

Sheet size：18" × 48" 24" × 48" customized



Features

1. Uniform pore size: has a uniform pore size distribution, which can ensure that the material can pass through the filter element evenly during the filtration process, thereby achieving more efficient filtration. In addition, the uniform pore size distribution reduces clogging and damage to the filter element, thereby extending its service life.

2. High-temperature resistance and corrosion resistance: The stainless steel wire mesh filter element is made of high-quality stainless steel, which has excellent high temperature resistance and corrosion resistance. Even in an environment of high temperature or corrosive media, the filter element can maintain its structural integrity and filtration performance, thus ensuring the stability and durability of the filtration effect.

3. Cleanable and Reusable: The stainless steel wire mesh filter element can maintain its filtering performance with simple cleaning and maintenance, making it reusable. The reusability of stainless steel wire mesh filters reduces environmental impact and is more economical than disposable filters.

4. Micron-level pore size: The micron-level pore size of the stainless steel wire mesh filter element can effectively filter out tiny particles and impurities, thereby improving the filtering effect and filtering accuracy. Micron-sized pores can also help protect downstream equipment, such as pumps and valves, from damage and failure caused by the intrusion of fine impurities.



Different layers have different performance characteristics

Single layer sintered wire mesh is formed by diffusion bonding, resulting in a permanent geometric shape, pore size, and filtration level. It is a cost-effective alternative to mesh filters and is commonly found in discs, rings, and simple cylindrical shapes.

Two to three layers of sintered wire mesh have good mechanical strength and medium-sized pores, suitable for manufacturing pleated cylindrical filters, candle filters, and sintered discs. This type of sintered wire mesh has a filtering layer with the desired pore size sandwiched between outer and inner protection layers.

Five-layer sintered wire mesh consists of one layer of fine woven wire mesh sandwiched between two layers of coarser woven wire mesh protection layers. These three layers of woven wire mesh are then sintered together with two support layers to enhance the filtration performance. This type of sintered metal wire mesh laminated plate has a wide range of applications in chemical processing, food, and beverage, pharmaceuticals, and transportation, and is used for liquid and gas filtration, fluidized beds, and other applications.



Application

Oil and gas production

Drug

Chemical industry

Food

Aerospace

Polymer filtration

Energy and Nuclear Power


Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer±s designated place without damage.
