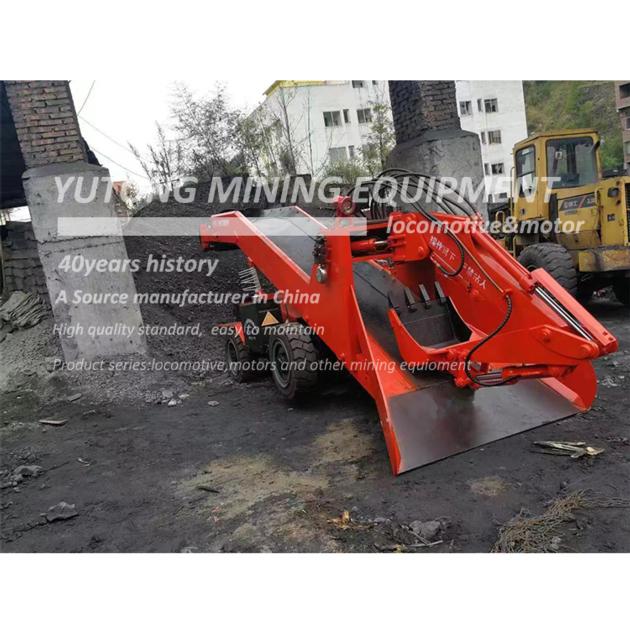

Mining Mucking Machine 120m3 Loading Capacity Muck Loader
| Price: | US$ 28000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | L/C,T/T |
| Port of Export: | Guangzhou |
Product Details
| Model No.: | ZWY120 | Brand Name: | YUTONG |
|---|
| Certification: | CE, ISO9001:2008 |
|---|---|
| Specification: |
Dimensions mm : 7200*2040*2480
Loading capacity m3/h : ≤120 Weight KG : 7900 Dig width mm : 4650 Dig height mm : 3500 Dig depth mm : 650 Operation slope degree : ≤25 Application tunnel size m : 2.8*2.8 dig distance mm : 2430 Min turn radius degree : 9 Unloading height mm : 2200 Unloading distance mm : 3200 Motor power kw : 30 voltage v : 240v50hz Chain speed m/min : 40¯2 walking speed m/s : 1.45¯5% Minimum ground clearance mm : ≤330 Track average ground contact pressure Mpa : 0.1 Working pressure Mpa : 25 |
Packaging & Delivery
| Packaging: | 1 set per wooden box |
|---|---|
| Delivery/Lead Time: | In 15 days after payment |
| Production Capacity: | 1000 sets per year |
Product Description
Product Description
The multifunctional mine muck machine is a new type of loader developed to improve labor intensity and work efficiency. The machine can directly transport rocks to the conveyor belt. The machine adopts full hydraulic control mode, which is simple and convenient to operate. The gantry frame of the machine is detachable and non-cut, which is convenient for installation in the well. In addition, the height of the rear unloading can be adjusted according to the customer's own needs. The machine is equipped with an adventure device to solve the danger of manual exploration. This machine can be used in a cave below 2.2 meters, and the loading capacity per hour is between 40-60m±.
Application
Mine slag raking machine is mainly used for phosphate ore, aluminum ore, iron ore, copper ore, gold ore, silver ore, lead-zinc ore and other mines, hydropower, tunnel projects in narrow-space mining operations. And
transportation, construction and loading. The mining slag raking machine is a combination of a manipulator and a conveyor. The slagging and conveying and loading functions are combined into one. The production device adopts an electric full hydraulic control system. It has the characteristics of safety, environmental protection, low energy consumption, and high efficiency. It is an indispensable advanced mining equipment for mining enterprises and a substitute for labor and other machinery.
|
