MRO-TEK Unmanaged Media Converter Chassis OAK13
| Price: | Rs. 15000 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | Chennai |
Product Details
| Model No.: | OAK13 | Brand Name: | MRO-TEK |
|---|
| Certification: | |
|---|---|
| Specification: |

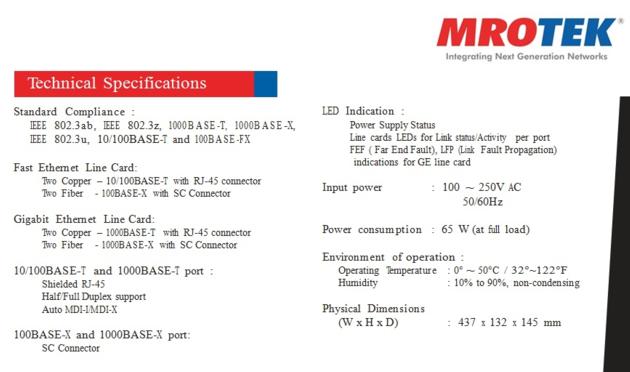

Technical Specifications
Standard Compliance : IEEE 802.3ab, IEEE 802.3z, 1000BASE-T, 1000BASE-X, IEEE 802.3u, 10/100BASE-T and 100BASE-FX Fast Ethernet Line Card: Two Copper – 10/100BASE-T with RJ-45 connector Two Fiber - 100BASE-X with SC Connector Gigabit Ethernet Line Card: Two Copper – 1000BASE-T with RJ-45 connector Two Fiber - 1000BASE-X with SC Connector 10/100BASE-T and 1000BASE-T port : Shielded RJ-45 Half/Full Duplex support Auto MDI-I/MDI-X 100BASE-X and 1000BASE-X port: SC Connector LED Indication : Power Supply Status Line cards LEDs for Link status/Activity per port FEF ( Far End Fault), LFP (Link Fault Propagation) indications for GE line card Input power : 100 ~ 250V AC 50/60Hz Power consumption : 65 W (at full load) Environment of operation : Operating Temperature : 0® ~ 50®C / 32®~122®F Humidity : 10% to 90%, non-condensing Physical Dimensions(W x H x D) : 437 x 132 x 145 mm |
Packaging & Delivery
| Packaging: | MRO-TEK company logo on the top of the box. High quality box sealed secure and packing. |
|---|---|
| Delivery/Lead Time: | 6 - 8 weeks from the date of order place |
| Production Capacity: | No limit as per customer requirement we can manufacturer |
Product Description
Description

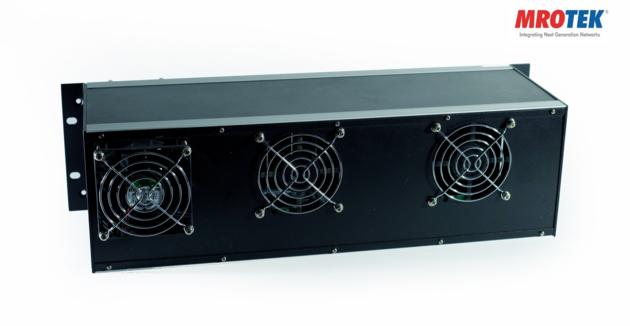

OAK13 is a Unmanaged Media Converter Rack which houses the Fast Ethernet and Gigabit Ethernet media converter line cards. It supports up to 13 line cards, Common back plane, Fan Tray with redundant power supply modules.
Each line card supports up to 2 nos of Fast Ethernet or Gigabit Ethernet Media converters & the chassis supports up to 26
Media converters. Hot-swappable line modules & redundant power supplies supplements high availability and ease of serviceability. IVY-01, FCAT01, FCAT01J and FCAT-CAD are the remote CPEs’ for the Fast Ethernet Line cards, while FCAT1000 and FCAT1000N are the remote CPEs’ for the Gigabit Ethernet Line cards.
OAK13 is a compact 3U high, 19” rack mountable device offering high port density. The high density rack chassis supports up to 13 line modules providing up to 26 independent unmanaged Fast & Gigabit Ethernet media converter circuits. Hot-swappable line modules & redundant power supplies supplements high availability and ease of serviceability.

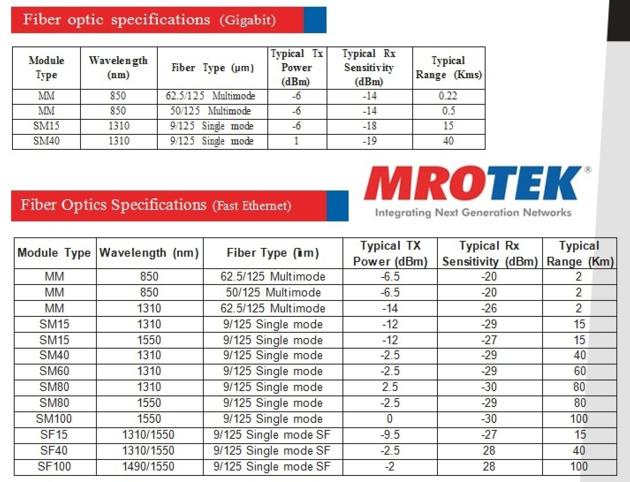

OAK13 is a rugged, reliable access distribution device, supporting variety of optical fiber cables like MMF (2 Km) and SMF to support distance range up to 100 Km. The redundant and hot-swapable power supplies ensures higher availability to meet stringent SLA requirements.
Key Features
19” Rack enclosure, 3U size
13 line modules support in a single rack
Houses Fast Ethernet (10/100Mbps) or Gigabit (1000Mbps) Ethernet line cards
Each line card supports up to two media converters
Maximum port density is 26 Media converters
Common Back plane supports power distribution for all line cards
SC Connector for Optical ports
Hot swap support for line cards
Line cards support Single mode, Multimode and Single fiber options
LED Indications for Link/Activity, Speed & Power supply status
Redundant AC Power supply option

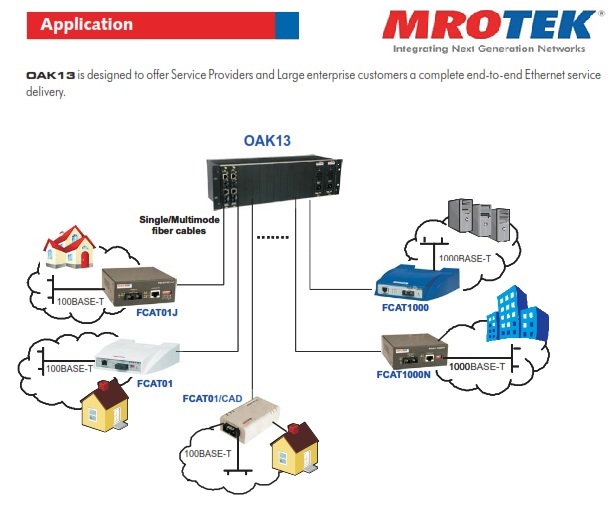

Application
OAK13 is designed to offer Service Providers and Large enterprise customers a complete end-to-end Ethernet service delivery.
|
