MRO-TEK TDM Over Ethernet Access Multiplexer ECAT-01L
| Price: | Rs. 20000 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | Chennai |
Product Details
| Model No.: | ECAT-01L | Brand Name: | MRO-TEK |
|---|
| Certification: | |
|---|---|
| Specification: |

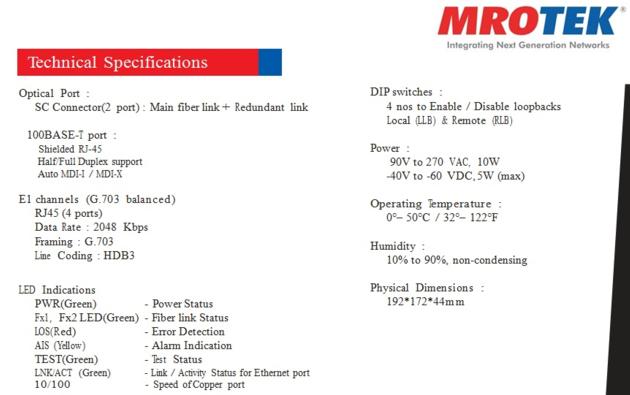

Technical Specification
Optical Port : SC Connector(2 port) : Main fiber link + Redundant link 100BASE-T port : Shielded RJ-45 Half/Full Duplex support Auto MDI-I / MDI-X E1 channels (G.703 balanced) RJ45 (4 ports) Data Rate : 2048 Kbps Framing : G.703 Line Coding : HDB3 LED Indications PWR(Green) - Power Status Fx1, Fx2 LED(Green) - Fiber link Status LOS(Red) - Error Detection AIS (Yellow) - Alarm Indication TEST(Green) - Test Status LNK/ACT (Green) - Link / Activity Status for Ethernet port 10/100 - Speed of Copper port DIP switches : 4 nos to Enable / Disable loopbacks Local (LLB) & Remote (RLB) Power : 90V to 270 VAC, 10W -40V to -60 VDC, 5W (max) Operating Temperature: 0ê– 50êC / 32ê– 122êF Humidity: 10% to 90%, non-condensing Physical Dimensions : 192*172*44mm |
Packaging & Delivery
| Packaging: | MRO-TEK company logo on the top of the box. High quality box sealed secure packing. |
|---|---|
| Delivery/Lead Time: | 6 - 8 weeks from the date of order place |
| Production Capacity: | No limit as per customer requirement we can manufacturer |
Product Description
Description
ECAT-01L is a 4-channel E1 and Fast Ethernet-over-Fiber optical transport multiplexer device, with optical redundancy suited for point-to-point optical circuits. In addition to various optical distances supported, the ECAT-01L provides rich diagnostic features with DIP switches to ease installations
The ECAT-01L is a low cost ‘TDM’ Access Multiplexer which multiplexes up to 4 E1 channels and one Fast Ethernet over single 100Base -X fiber link.
ECAT-01L provides simple, flexible and cost-effective solution for transporting 4 E1channels and one Fast Ethernet transparently over single Fast Ethernet fiber for point- to-point applications at distances upto 100 km / 62 miles.
ECAT-01L transmits each of the E1 channels independently offering clear channels maintaining high throughput for E1 channel over fast Ethernet optical link without any traffic performance
degradation.
To ease system diagnostics, EC AT-01L provides the Link and Port Status of local and remote units. This feature coupled with the Loopback support for diagnostics provides exhaustive monitoring capabilities for easy maintenance and support. The Alarm monitor provides easy trouble- shooting to ensure high uptimes.
Key Features
4E1channels and 1 Fast Ethernet over fiber port
Link and port status of local and remote units
DIP switches for loopback diagnostics
Alarm monitoring Indication
Built-in auto-ranging AC-DC power supply

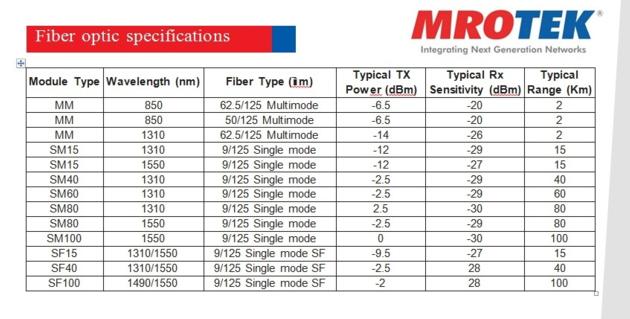

Multimode or single mode fiber support
SC connector for Optical network port
Support for long haul transmission upto 100Kms
Confirms to ITU G.703, G.823, G.824, GR-499 core jitter requirements

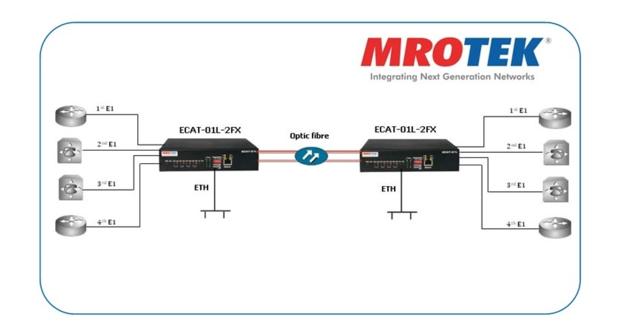

Application
The ECAT-01L unit permits improved utilization of Fiber links, due to its capability to multiplex 4E1 and one Fast Ethernet channels over 100BASE-X Fiber link. ECAT-01L can be utilized by Telcos, Carriers & Service Providers to transport E1 channels over long haul fiber links. The E1 channels are transmitted as packets and are de-multiplexed and reconstructed at the remote end. ECAT-01L deployment benefits Carriers & Service Providers in reducing their operational and maintenance cost considerably.
|
