MRO-TEK Managed Gigabit Media Converter FCAT1000-J
| Price: | Rs. 35000 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | Chennai |
Product Details

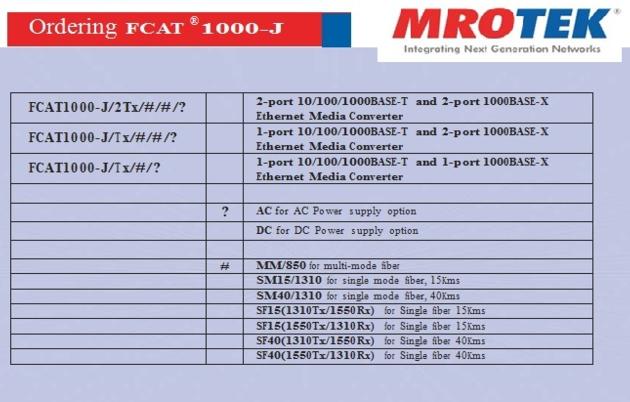

| Model No.: | FCAT 1000-J | Brand Name: | MRO-TEK |
|---|
| Certification: | |
|---|---|
| Specification: |

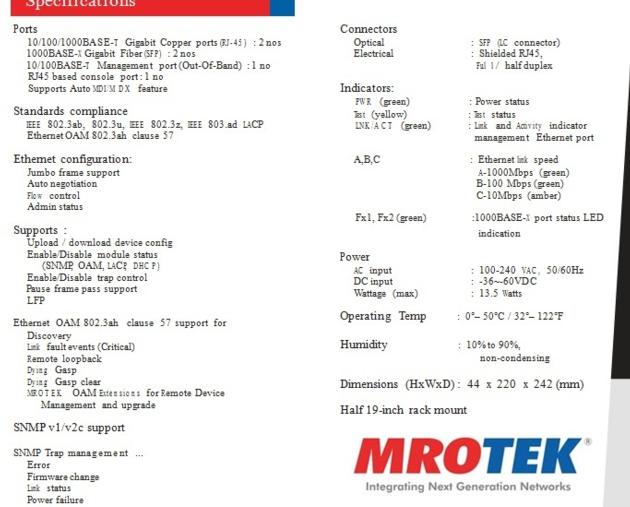

Specifications
Ports 10/100/1000BASE-T Gigabit Copper ports (RJ-45) : 2 nos 1000BASE-X Gigabit Fiber (SFP) : 2 nos 10/100BASE-T Management port (Out-Of-Band) : 1 no RJ45 based console port : 1 no Supports Auto MDI/MDX feature Standards compliance IEEE 802.3ab, 802.3u, IEEE 802.3z, IEEE 803.ad LACP Ethernet OAM 802.3ah clause 57 Ethernet configuration: Jumbo frame support Auto negotiation Flow control Admin status Supports : Upload / download device config Enable/Disable module status (SNMP, OAM, LACP, DHCP) Enable/Disable trap control Pause frame pass support LFP Ethernet OAM 802.3ah clause 57 support for Discovery Link fault events (Critical) Remote loopback Dying Gasp Dying Gasp clear MROTEK OAM Extensions for Remote Device Management and upgrade SNMP v1/v2c support SNMP Trap management ... Error Firmware change Link status Power failure Connectors Optical : SFP (LC connector) Electrical : Shielded RJ45, Ful l / half duplex Indicators: PWR (green) : Power status Test (yellow) : Test status LNK/ACT (green) : Link and Activity indicator management Ethernet port A,B,C : Ethernet link speed A-1000Mbps (green) B-100 Mbps (green) C-10Mbps (amber) Fx1, Fx2 (green) : 1000BASE-X port status LED indication Power AC input : 100-240 VAC, 50/60Hz DC input : -36~-60VDC Wattage (max) : 13.5 Watts Operating Temp : 0û– 50ûC / 32û– 122ûF Humidity : 10% to 90%, non-condensing Dimensions (HxWxD) : 44 x 220 x 242 (mm) Half 19-inch rack mount |
Packaging & Delivery
| Packaging: | MRO-TEK company logo on the top of the box. High quality box sealed secure packing. |
|---|---|
| Delivery/Lead Time: | 6 - 8 weeks from the date of order place |
| Production Capacity: | No limit as per customer requirement we can manufacturer |
Product Description
Description
FCAT 1000-J is a feature-rich dual-channel Gigabit Ethernet media converter, with a standard SNMP management, offering versatile connectivity and support for dual channel conversion from 10/100/1000 Mbps electrical to 1000 Mbps optical interface. FCAT 1000-J supports SFP modules to suit any mode and optical budget, provides rich operational management features with IEEE802.3ah OAM.
Ethernet is now the preferred broadband access technology between carrier and customer networks. It would save carriers a fortune in CAPEX and help them deliver more bandwidth, meaning more customers and more revenue.

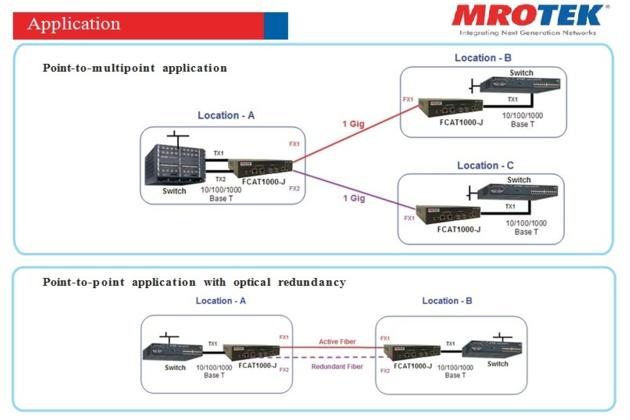

But as its usage continues to grow in public networks, Operations, Administration and Maintenance (OAM) becomes a critical necessity for the carriers to run their networks more efficiently. FCAT 1000-J, the Dual-channel Managed Gigabit Ethernet Media converter from MRO-TEK supports a variety of advanced features and flexible interface options, giving service providers the power to quickly and profitably deploy Ethernet services. Enterprise customers can leverage existing Gigabit Ethernet infrastructure for long haul connects.
FCAT 1000-J is a rugged & reliable Dual-channel Gigabit Ethernet media converter providing seamless extension of Gigabit Ethernet on single mode/multi mode fiber ranging from 0.5 kms to 40 kms.
The flexibility to adapt to different connectivity needs make FCAT 1000-Jþ an essential component of your network design. FCAT 1000-J brings the long haul advantages of single mode fiber to Gigabit Ethernet backbones and campus LANs.
The FCATþ delivers the power of Gigabit ethernet to speed up network performance, while providing easy usability and plug-and-play installation.
Key Features
Dual channel stand-alone Gigabit Media Converter
Complies to IEEE standard specification

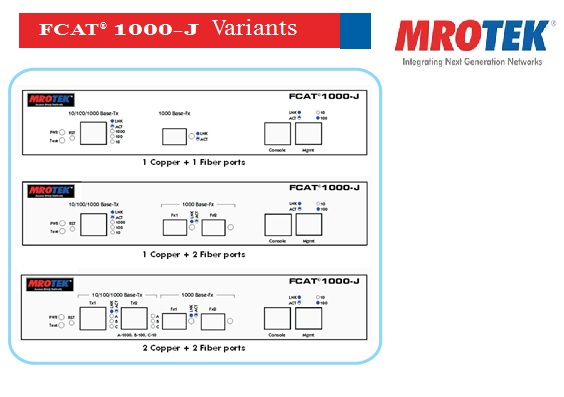

1 or 2 nos - 10/100/1000BASE-T Copper port
1 or 2 nos - 1000BASE-X Gigabit Fiber port
Jumbo Frame support
Pause frame pass support
LFP configuration support
10/100 Mbps port for Out-of-Band management
In-band management support
SFP connector for 1000BASE-X port

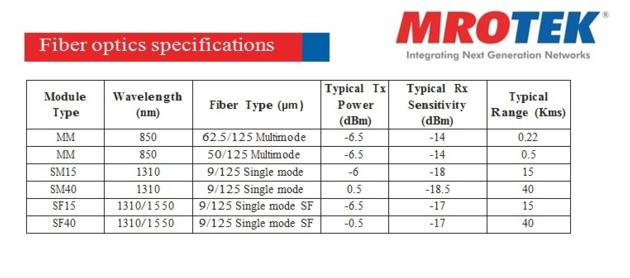

Supports Multimode, Single mode & Single fiber
Transparent pass-through for non-tagged and
Tagged Data Traffic.
Management
CLI based console port
IP address for management
SNMP v1/v2c protocol support
Telnet support
Dual image support (Primary & Secondary)
Supports TFTP client for remote firmware up gradation
HTTP Web configuration
LITEVIEW NMS software on Linux platform
IEEE 802.3ah OAM Clause 57
Dying gasp alarm generation/clear (IEEE 802.3ah)
|
