Product Description

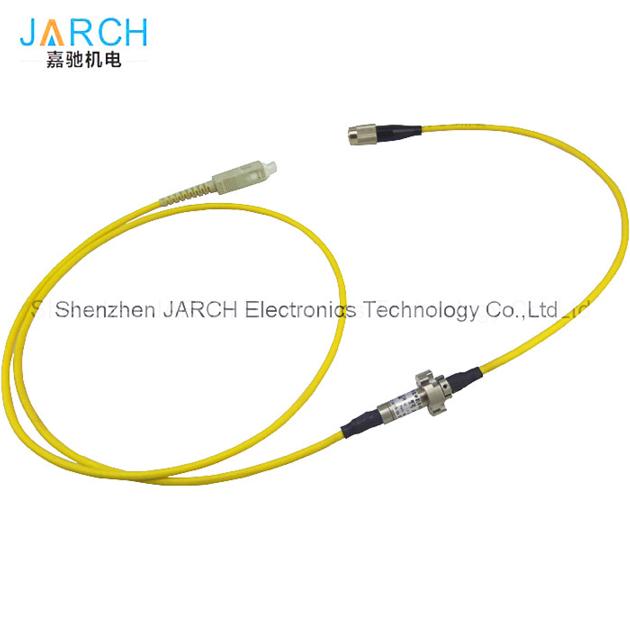

JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint

SF series Fiber Optic Rotary Joints (FORJs) are extremely compact. So small they can even be used in the middle of fluid flows. They are the world's smallest and lightest. They feature very low insertion loss and impressive return loss performance. Model SF typically yields return loss figures higher than 60 dB.

JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating jointJARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating jointJARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint

SPECIFICATIONS

PARAMETERS VALUES
Wavelength range 650-1650 nm
Insertion loss <2 dB (typical: <0.5 dB)
Insertion loss ripple <+/-0.25 dB (typical: +/-0.15 dB)
Return loss (SM) >40 dB (typical: 45 dB, 23 C), >55 dB (MJXA)
Maximum speed 2,000 rpm
Water submersion 1 m, (model RPC for pressure compensation)
Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm
Estimated life cycle >500 million revolutions (1,000 rpm, 365 days, continous)
Optical power handling 23 dBm
Working temperature -40 to 85 C
Storage temperature -50 to 85 C
Package style Pigtails on both ends
Housing material Stainless steel
Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC (and APC finishes)
Dimensions 6.8 mm dia. x 28 mm length
Weight 10 g
Vibration MIL-STD-167-1A
Mechanical shock MIL-STD-810G
IP rating IP 68 for all models





Benefits



JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint



Using light signal transmission, no electromagnetic leakage.
Good sealing.
Resistance to electromagnetic interference
No contact transmission, no wear and tear.
Long life, can be up to 10 million RPM.
No friction, can be used in inflammable and explosive environment.
Can be used in extreme natural environment.
High magnetic current interference, also can work normally.



JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint


Installation Instructions

JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery



Applications:

• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking





Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through fusion splice (without the use of connectors). Insertion loss of all receptacle type of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.
