Industrial Endoscope Digital Borescope Veterinary Instrument
| Price: | US$ Negotiable |
|---|---|
| Minimum Order: | |
| Payment Terms: | T/T, Westunion, Paypal |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
Portable Device

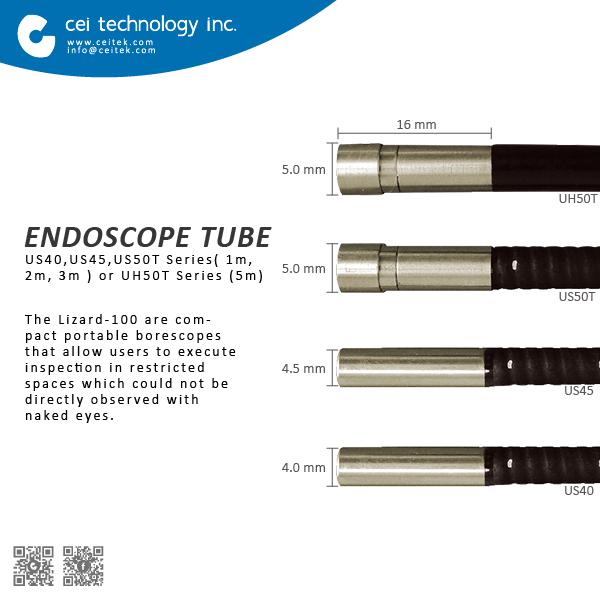

Designation Lizard-100 Display 4.8" TFT LCD, 800 x 400 Pixels Display Strength Tempered Glass Interface Micro USB 2.0 / AV out Battery Rechargeable Lithium Battery (3.7V) Power adapter 100~240V AC in, 50/60Hz 0.12 A 5.0V DC out, 0.85A ~ 1A Recording Medium Free 4G SD card Photo Storage Format JPEG (640 x 480) Storage Capacity Up to 20,000 pictures or 480 min. of video on 4 GB card Video Recording Format AVI (640 x 480) Video Out Format NTSC & PAL Frame rate 30 fps Compression Format MPEG4 Video size 10 min. (150 MB) Working& Storage/ Battery charging temperature range -10 ~ 65 ªC (14 ~ 149 ªF) Functions Snapshot, Video recording, Images (Photo & video) review on LCD screen, TV out, Transfer of photo & video from SD card to PC, Digital zoom Magnifier 3 x Battery Life 3 hours Ingress Protection IP 54 Camera Tubes Designation US40 Series US45 Series US50T Series UH50T Series Tube type Semi-Rigid Hose Tube Surface Treatment EPD /PE Cover PVC Cover Image sensor CMOS Image Sensor Resolution VGA (640 x 480 pixels) Light Source 6 adjustable white LED s Size tip diameter 4.0 mm 4.5 mm 5.0 mm Tube length 1m, 2m, 3m 5m Field of View (FOV) 80 ª Depth of Field (DOF) 1 cm ~ 10 cm Resistant to water & fuels Yes (For most fuels and solvents) Min bending radius 50 mm Working temperature range -10 ~ 65 ªC (14 ~ 149 ª F) Ingress Protection IP 67 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
INSTRUCTION

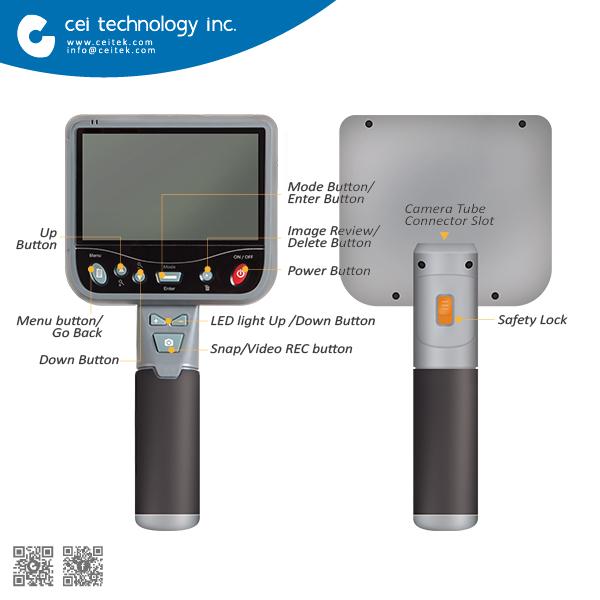

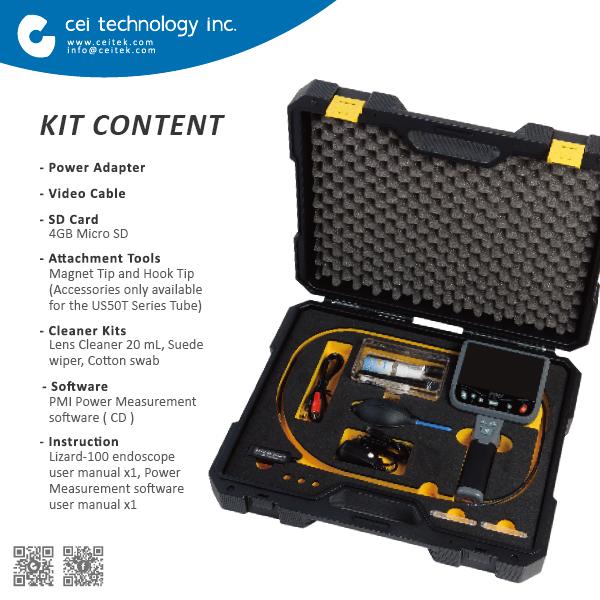

The Lizard-100 series are compact portable borescopes that allow users to execute inspection in restricted spaces which could not be directly observed with naked eyes. The PMI Lizard-100 series set includes a portable device, a camera tube, a cleaning kit, a power adapter, a video connector, and a 4GB SD card. The portable device with 4.8” TFT LCD screen is capable of viewing, capturing and reviewing photos and video images. Images can also be displayed directly on a TV screen. The portable device is powered by rechargeable Li-Ion battery and a universal charger is included.
Features
Super wider angle camera
Digital signal with high resolution, VGA (640 x 480 pixels)
4.8" Wider screen
Quick snap/ Video recoding
Special design marked scale on probe to measuring
Waterproof & Grease proofing
Comfortable TPR handle
Image editor software
|
