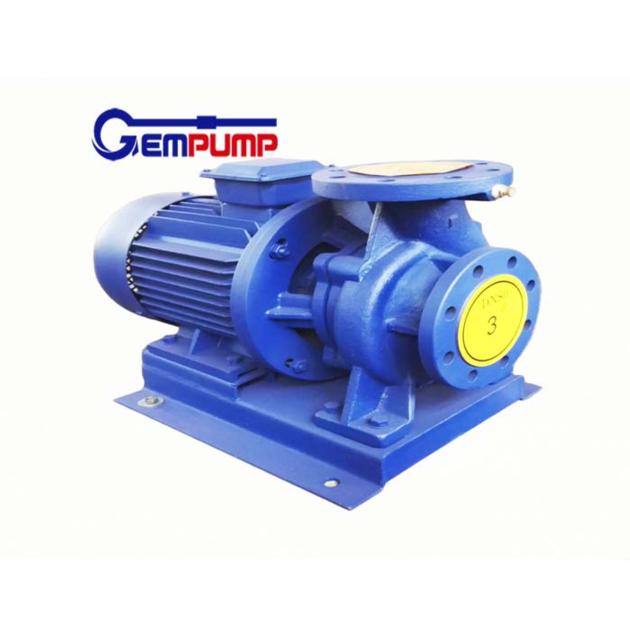

ISW series Horizontal centrifugal pipeline pump

ISW horizontal pipeline water supply pump is based on IS-type centrifugal pump and vertical pump unique combination of structural design, and in strict accordance with international standards ISO2858 and the latest national pipeline centrifugal pump standard JB / T53058-93 design and manufacture of energy efficient products. ISW horizontal pipeline pump using the domestic advanced hydraulic model optimized design. At the same time according to the use of temperature, medium and other different in the ISW-based derived from the hot water pump, high temperature pumps, chemical pumps, pumps, etc., is the current national standard stereotypes to promote products.

Structure Explanation:

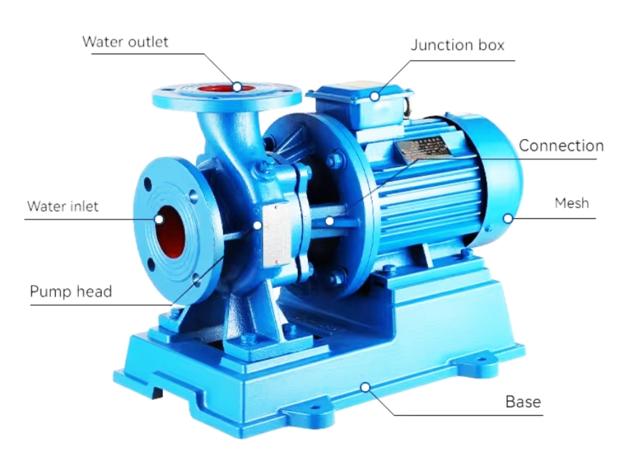

See the structure picture. This pump composes of electric motor and pump with pump structure including the pump body, impeller, pump cover, mechanical seal. The pump is single stage and single suction centrifugal and horizontal type with inlet and outlet at the same horizontal line and same dia. Able to mount on any pipe line at any place easily and small occupying place. The
Pump has foot to increase the consolidation of the pump and with the flange of inlet/outlet, a pressure hole can equip with pressure meter to ensure the pump long and lasting operation with in its rated performance.

Technology Parameters
Flow: 6.3-1600m3/h
Head: 5-150m
Rotary Speed: 980-2900r/min
Calibre: Φ15-Φ500
Temperature: 0~+120º C
Working Pressure: ≤ 1.6Mpa

Main Application:
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous,
noncorrosive, non-crystallizable, chemically neutral and close to water.
Such as:
· Tank filling · Domestic water supply · Water transfer · Pressure boosting · Irrigation
