INDUSTRIAL REAL-TIME ETHERNET EDGE I/O CONTROLLER

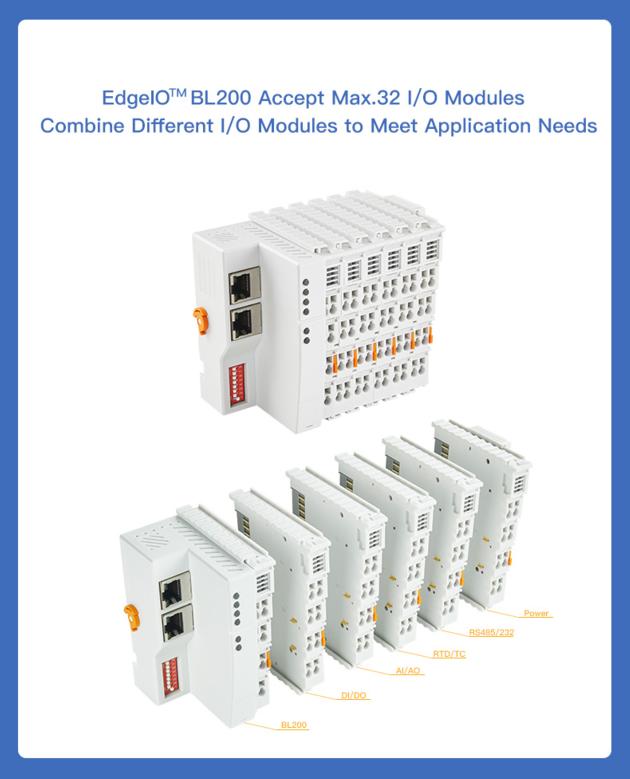

Consisting of distributed IO coupler, I/O modules and terminal module. Among them, the I/O modules can be freely combines according to your needs. It supports up to 32 I/O modules. (notice: more than 20 I/O module need to add a power module)

There are a variety of models to choose from, which can support various Fieldbus protocols. (such as Modbus, MQTT,
OPC UA, Profinet, EtherCAT, BACnet etc.)

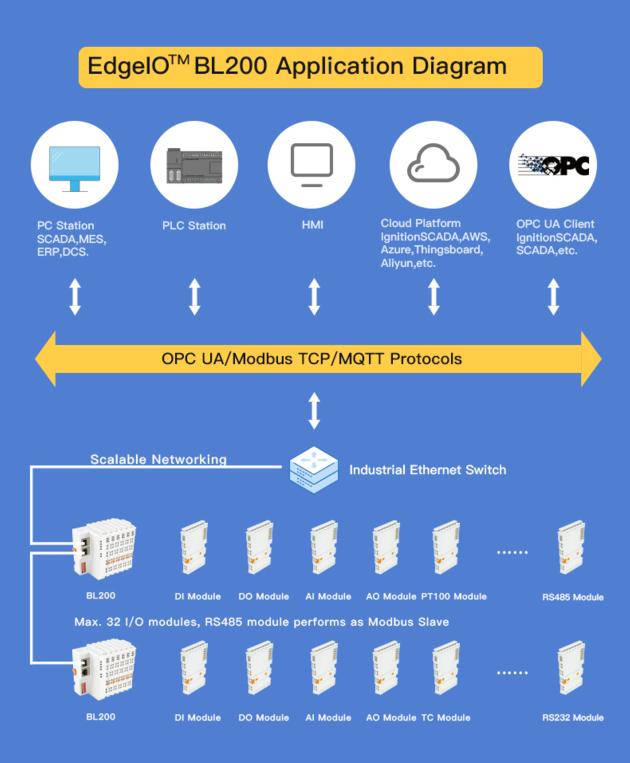

It has two RJ45 Ethernet ports that can establish a linear topology without the need for additional switches or hubs.

Model: BL203
Fieldbus protocols: EtherNet IP
Max. IO Module: 32
Data transmission medium: EtherNet CAT5
Connection method: 2*RJ45
Transmission rate: 10/100 Mbit/s
Transmission distance: 100m
Logic operation: built-in logic computing function
Max. number of socket links: 15
Electrical isolation: Y
