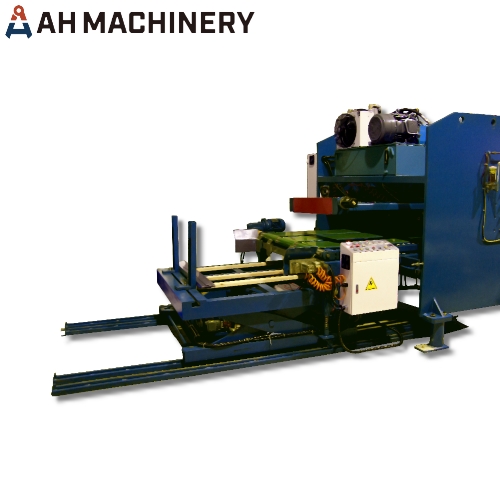

Hydraulic Guillotine Shearing Machines for (Cutting Length 600 - 4100 mm)
| Price: | US$ 10000-100000 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T |
| Port of Export: | Taichung Port |
Product Details
| Model No.: | AS-1 Series | Brand Name: | AH |
|---|
| Certification: | |
|---|---|
| Specification: |
- Cutting Capacity [mm]= 3.2x600, 3.2x1320, 3.2x1580, 3.2x1880, 3.2x2540, 3.2x3100, 3.2x3700, 3.2x4100, 4.5x600, 4.5x1320, 4.5x1580, 4.5x1880, 4.5x2540, 4.5x3100, 4.5x3700, 4.5x4100, 6.5x600, 6.5x1320, 6.5x1580, 6.5x1880, 6.5x2540, 6.5x3100, 6.5x3700, 6.5x4100, 9.5x600, 9.5x1320, 9.5x1580, 9.5x1880, 9.5x2540, 9.5x3100, 9.5x3700, 9.5x4100, 13.0x2540, 13.0x3100, 13.0x4100, 16.0x2540, 16.0x3100, 16.0x4100, 20.0x2540, 20.0x3100, 20.0x4100
- Maximum Width Covered by the Blade [mm]= 3.2, 4.5, 6.5, 9.5, 13, 16, 20 - Cutting Length of the Machine [mm]= 600, 1320, 1580, 1880, 2540, 3100, 3700, 4100 - Main Motor [HP/kw]= 5/3.7, 7.5/5.6, 10/7.5, 15/11.2, 20/14.9, 25/18.6, 30/22.4, 40/29.8, 50/37.3, 100/74.6 - Strokes per Minute [S.P.M]= 5, 7, 8, 9, 10, 11, 12, 13, 15, 16, 18, 20, 25, 30, 35 - Hold-downs Number= 1, 6, 8, 10, 11, 13, 16, 19, 21, 22, 25 - Rear Gauge [mm]= 600/800 - Weight [Kgs/Lbs]= 1200/2646, 1400/3086, 1600/3527, 1800/3968, 2000/4409, 2100/4630, 2400/5291, 2600/5732, 3000/6614, 3450/7606, 3500/7716, 3800/8378, 4000/8818, 4650/10251, 4800/10582, 5200/11464, 5500/12125, 6000/13228, 6200/13669, 6800/14991, 7000/15432, 7500/16535, 7700/16976, 8300/18298, 9000/19841, 9800/21605 - Rake Angle= 1 degree, 1 degree to 2 degree, 1 degree to 2 degree 10', 1 degree to 2 degree 30', 1 degree 10', 1 degree 15', 1 degree 20', 1 degree 30', 1 degree 45', 2 degree 25', 2 degree 30' - Type= Hydraulic Guillotine |
Packaging & Delivery
| Packaging: | Carton or Crate |
|---|---|
| Delivery/Lead Time: | Around 90 days after order is confirmed. |
| Production Capacity: | 30 Set Up/Year |
Product Description
With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including Hydraulic Guillotine Shear Bed, Hydraulic Guillotine Squaring Shears, Hydraulic Guillotine Shearing Machines, Hydraulic Guillotine Plate Shears, Hydraulic Guillotine Metal Shears, Guillotine Squaring Shears, Guillotine Shears.
Customized specifications are available to meet your unique needs.
/ADVANTAGE/
v High grade alloy tool steel blades assure accurate cutting and longer service life.
v Overload protection in hydraulic and electronic system ensures safety of operators and the shear.
v The centralized hydraulic system provides best performance under fast-speed and longtime working.
v Stress-relieved, unitized box construction of the table and steel frames provides maximum rigidity and strength.
v Constant minimum rake angle assures the sheared blanks are precisely cut within a minimum of bow twist or camber.
v Go-straight cutting type offers accurate shearing performance with clean, square edges, and exacting working tolerances.
v Compared with competitive shears of same capacity, our design is more compact in order to take less space in your factory.
/STANDARD/
v Front Gauge
v Manual Back Gauge
v Footswitch
v Blades
v Ball Transfer Working Table
v Finger Guard
/OPTIONAL/
v NC Control System with Touch Screen
v Pneumatic Support for Thin Sheet
v Front Arm Lengthened 1.5/2/3 M
v Power Lubrication System
/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.
/APPLICATIONS/
Metal Fabrication and Manufacturing, Automotive Industry, Construction and Structural Engineering, Shipbuilding, Aerospace Industry, Appliance Manufacturing, Electronics and Electrical Industry, Energy Sector, Tool and Die Making, Metal Recycling.
/FINAL PRODUCTS/
Metal Sheets and Plates, Construction, Manufacturing, Fabrication, Structural Components, Beams, Columns, Other Structural Elements, Automotive Parts, Body Panels, Chassis Components, Brackets, Other Metal Components, Appliance Components, Panels, Frames, Other Parts, Refrigerators, Ovens, Washing Machines, Aerospace Components, Wings, Fuselage Sections, Structural Parts, Shipbuilding Components, Constructing Ship Hulls, Various Component, Electronics and Electrical Components, Enclosures, Panels, Housings, Metal Strips and Coils, Electrical Components, Automotive Parts, Metal Packaging, Tool and Die Components, Metal Scraps for Recycling.
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
Contact us today for high-caliber and accurate machinery solutions.
