Hydraulic Cylinder Assembly

Hydraulic end assembly AH0501010500 AH35001-05.00
Hydraulic end assembly AH0801010500 AH34001-05.00
Hydraulic end assembly AH1001010500 AH33001-05.00
Exhaust filter assembly AH0501011400 AH35004-11.00
Exhaust filter assembly AH1001011900 AH33014-04.00
Cross head assembly AH0501010400 AH35001-04.00
Cross head assembly AH0801010400 AH34001-04.00
Cross head assembly AH1001010400 AH1001010400
Pinion shaft assembly AH0501010300 AH35001-03.00
Pinion shaft assembly AH0801010300 AH34001-03.00
Pinion shaft assembly AH1001010300 AH33001-03.00
Crankshaft assembly AH0501010200 AH35001-02.00
Crankshaft assembly AH0801010200 AH34001-03.00
Crankshaft assembly AH1001010200 AH33001-02.00
Power end lubrication assembly AH0501010600 AH35001-06B.00
Power end lubrication assembly AH0801010600 AH34001-06C.00
Power end lubrication assembly AH1001010600 AH33001-06C.00
Spray pump assembly AH0501010800 AH35001-08B.00
Spray pump assembly AH0801010800 AH34001-08B.00
Spray pump assembly AH1001010800 AH33001-08C.00
Random tool AH0501011500 AH35001-20.00A
Random tool AH0801011400 AH34001-15.00A
Random tool AH1001012100 AH33001-31.00A
Sealing washer AH10010109 AH33001-09
Rubber strip 25 × 10 × 4000
Rubber strip 25X10X4880
Ventilation hood T515-1001.00 T515-1001.00
Oil level gauge assembly AH1001011400 AH33001-18.00
Seal gasket AH05010111 AH35001-12
Seal gasket AH08010111 AH34001-12
Seal gasket AH10010112 AH33001-15
Sealing washer AH10010116 AH36001-19
Seal gasket AH05010113 AH35001-15
Seal gasket AH10010116 AH36001-19
Seal gasket AH10010118 AH33001-25
Cylinder assembly AH050101050100 AH35001-05.01A.00
Cylinder assembly AH100101050100 AH33001-05.01A.00
Cylinder head flange AH0501010502 AH35001-05.02
Cylinder head flange AH1001010502 AH33001-05.02
Cylinder head AH0501010503 AH35001-05.03A
Cylinder head AH1001010503 AH33001-05.03A
Cylinder liner sealing ring AH0501010504 AH35001-05.04
Cylinder liner sealing ring AH1001010504 AH33001-05.04
Cylinder head plug AH050101050500 AH35001-05.05A
Cylinder head plug AH100101050500 AH33001-05.05A
O-ring 75 × 5.3 530301010750053000 GB3452.1-82
O-ring 97.5 × 3.55 530301010975035000 GB3452.1-82
Discharge line AH0501010507 AH35001-05.08
Discharge line AH0801010501 AH34001-05.01
Discharge line AH1001010507 AH33001-05.08
Bonnet seal ring AH0501010508 AH35001-05.09
Bonnet seal ring AH1001010508 AH33001-05.09
Valve cover AH0501010509 AH35001-05.11A
Valve cover AH1001010509 AH33001-05.11A
Stem guide (I) AH0501010510 AH35001-05.12
Stem guide (I) AH1001010510 AH33001-05.12
Spring guide AH100101051100 AH33001-05.13.00
Baffle AH0501010511 AH35001-05.13
Baffle AH1001010512 AH33001-05.14
Valve spring AH1001010529 AH00000101 AH33001-05.16A
Valve assembly AH0000020500 AH35001-05.14A.00
Valve assembly AH0000020100 AH33001-05.17A.00
Lock nut T507-302.00 ( M24)
Lock nut T507-305.00 (M39X3)
Piston sealing ring 530301010280035000 (φ28X3.55)(GB3452.1-82)
Piston seal ring AH1001010515 AH33001-05.20A

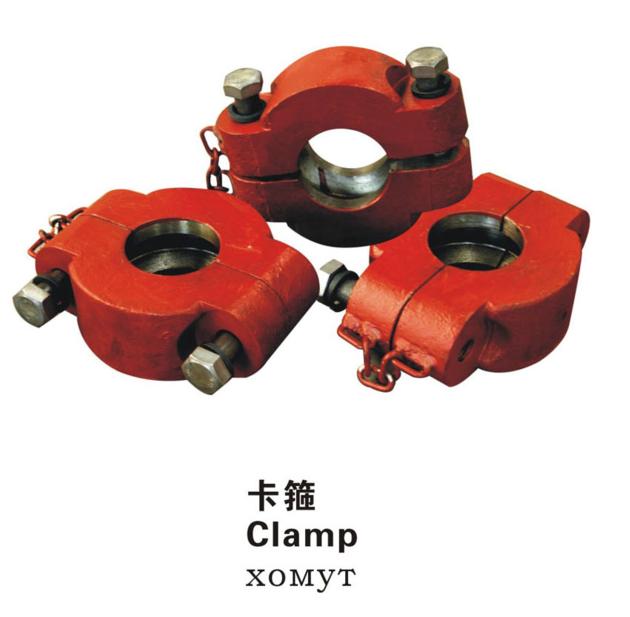

Clamping assembly AH050101051500 AH35001-05.21.00
Clamping assembly AH080101050400 AH34001-05.04.00
Clamping assembly AH100101051900 AH33001-05.24.00
Piston rod AH0501010512 AH35001-05.18A
Piston rod AH0801010502 AH34001-05.02A
Piston rod AH1001010516 AH33001-05.21A
Cylinder head AH0501010516 AH35001-05.22
Cylinder head AH1001010520 AH33001-05.27
Top cylinder AH0501010506 AH35001-05.06
Top cylinder AH1001010506 AH33001-05.06
Fixed card AH0501010517 AH35001-05.23
Fixed card AH1001010521 AH33001-05.30
Stem guide (bottom) AH050101051800 AH35001-05.24.00
Stem guide (bottom) AH100101052200 AH33001-05.31.00
Suction pipeline AH050101051900 AH35001-05.28.00A
Suction pipeline AH080101050500 AH34001-05.06.00A
Suction pipeline AH100101052300 AH33001-05.34A.00
Gasket group AH050101052000(2) AH35001-05.31
Gasket group AH080101050700(2) AH34001-05.08.00
Gasket group AH100101052400(4) AH33001-05.37.00
O-ring 230 × 7 530301012300070000
O-ring 290 × 7 530301012900070000
O circle 345 × 7 530301013450070000
Suction flange I AH050101010521
Suction flange I AH0801010508 AH34001-05.10
Suction flange I AH1001010525 AH33001-05.39
Bolt M27X90 42020101072709001 0
Bolt M22X90 420201070622090000
Bolt M22X100 T502-3006
Silk plug Z11 / 2 T506-1007
Suction flange II) AH0501010521 AH35001-05.32
Suction flange II) AH0801010509 AH34001-05.11
Suction flange II) AH1001020509 AH33009-05.03
Suction air bag AH0000050300 AH35001-05.29A.00
Inhalation capsule AH0000050301 AH35001-05.29A.01
Suction end cover AH0000050302 AH35001-05.29B.02
Suction air bag AH080101050600 AH34001-05.07A.00
Inhalation capsule AH080101050601 AH34001-05.07A.02
Suction end cover AH080101050602 AH34001-05.07B.03
Suction air bag AH0000050100 AH33001-05.35A.00
Inhalation capsule AH0000050101 AH33001-05.35A.02
Suction end cover AH0000050102 AH33001-05.35B.03
Bolt M27X85 T502-7026
Bolt M22X90 420201070622090000
Bolt M27X90 420201070727090000
O-ring 150 × 7 53030101150007000 7
O cycle 185 × 7 53030101185007000 7
Nut M30X3 T507-2001
Nut M33X3 T507-2009
Double head stud T503-3004 AM30X2-M30X3X170
Double head stud T503-4005 AM33X2-M33X3X200
Nut M30X3 T507-2001
Nut M36X3 T507-2002
Double head stud T507-3003 AM30X2-M30X3X120
Double head stud T503-4003 AM36X2-M36X3X160
Nut M39X3 T507-2011
Double head stud T503-4001 AM39X2-M39X3X95
Double head stud T503-4004 AM39X2-M39X3X110
