Holykell Wireless water tank level indicator H2603
| Price: | US$ 230 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Various payment terms |
| Port of Export: |
Product Details
| Model No.: | H2603 | Brand Name: | Holykell |
|---|
| Certification: | |
|---|---|
| Specification: |
Range Pressure Range: -1-1…1000Bar optional
Temperature Range: Normal:-200~200℃; Split Type:-200~860℃; Others by customize. Level Range:0-1m…50m level by customized Working power DC 3.6V, 19Ah Li-Battery Battery Life 6 years (send data once an hour) Power consumption Standby current≤80uA; Average data sending current≤150mA. Display Segment code LCD screen Network format NB-IoT/GPRS/3G/4G/LoRa/LoRaWAN Antenna format External antenna Sampling interval once/min Data upload interval 5min, 10min, 30min, 60min, 360min, 720min, 1440min The interval can be selected and set. The listed above is partial, and the intervals available is 2min-1440min. Note: The actual upload interval may slightly vary from the set interval. If it fails to upload currently, it will reupload next time. Configuration method USB configuration, server remote configuration Wake mode Button, timing Upload information Pressure (temperature/level), battery, signal, card number, etc. Operating Temperature -30℃~ 70℃ (the medium does not crystallize) measurement accuracy 0.5% F.S Temperature effect 0.015%F.S/℃ Protection class Waterproof version IP66; Explosion-proof version: IP68, explosion-proof class(Ex ia IIC T6 Ga) |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

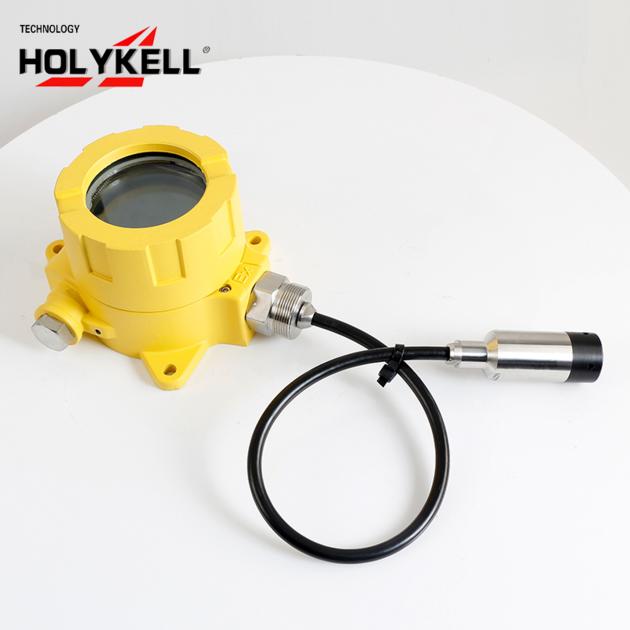

The Holykell Wireless Water Tank Level Indicator H2603 is a cutting-edge solution for monitoring water levels with precision and convenience. This advanced device employs wireless technology to provide real-time information on water tank levels, ensuring efficient and timely management. With its user-friendly interface, the H2603 offers easy calibration, sampling, and verification processes. In addition to its reliability, the H2603 supports reset functions, providing users with seamless control.
Features
High resolution 3.14″” full LCD screen

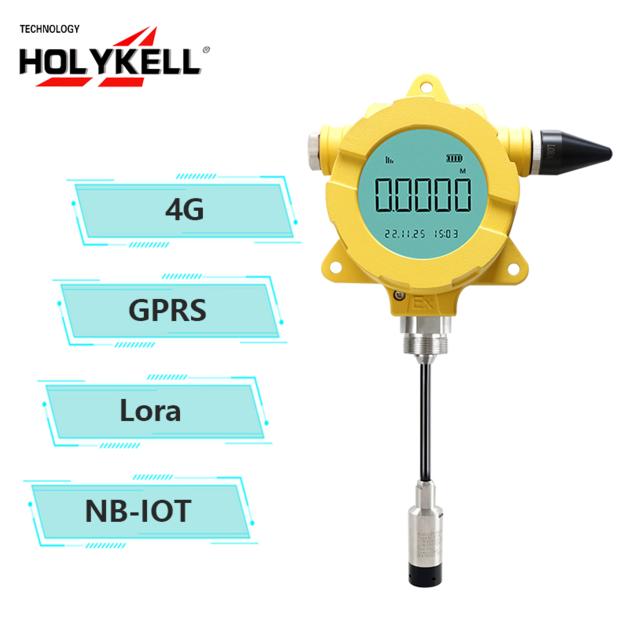

NB-IoT/GPRS/3G/4G/LoRa/LoRaWAN supported

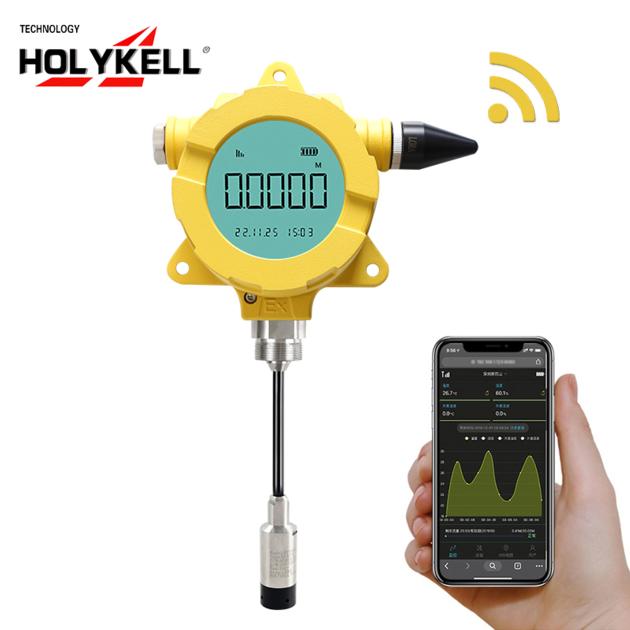

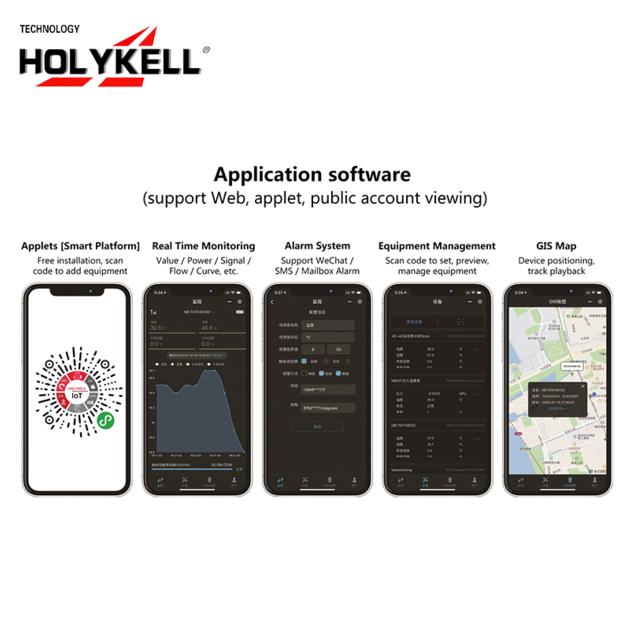

Remote monitoring via computers or mobile phones available
High performance, long range wireless connectivity
Gateway supported Custom alerts and alarms for full visibility of your system status
Name your tanks and pumps for ease of identification
Low power consumption with up to 6 years of battery life
Automatic wireless pump control with additional valves and tools
Durable case and cable materials for long-term use
Explosion-proof certificate approved
IP68 rated water level sensor
Active repeaters can be used to further increase range
Easy to use and install with videos and technical engineer’s instruction
To find out more about our range of products or solutions, contact our engineers NOW for suggestion providing.
|
