Holykell Submersible Fuel Level & Volume & Temperature Transducer & Transmitter
| Price: | US$ 220 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Various payment terms |
| Port of Export: |
Product Details
| Model No.: | HPT604-LT | Brand Name: | Holykell |
|---|
| Certification: | |
|---|---|
| Specification: | Holykell, founded in 2001, is a market leader in pressure, temperature, level and flow measurement technology. We've become a preferred partner for OEMs because we always strive to exceed our customers' expectations. Working together with our customers, we develop comprehensive solutions based on our high-quality measurement technology components, with the solutions ultimately being integrated in their business processes.Holykell has set itself the goal of developing innovative measurement technology that is easy to install,operate and offers maximum safety and reliability. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

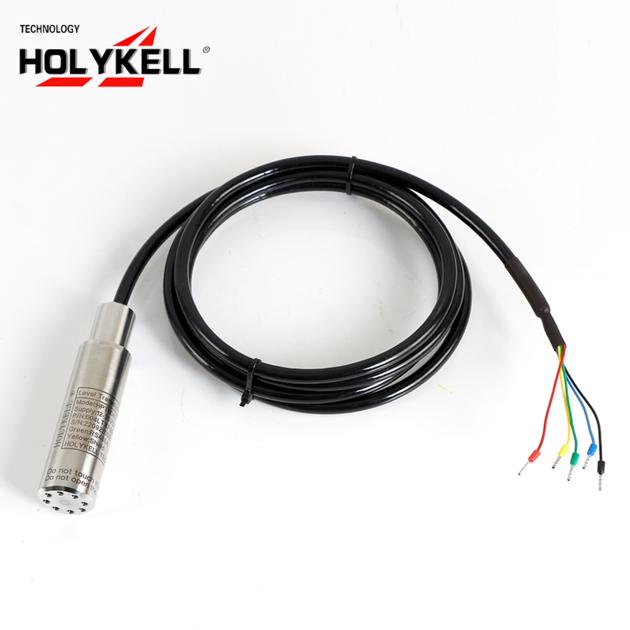

Introducing HPT604-LT: A Cutting-Edge Submersible Pressure Level Transducer
Experience exceptional performance with the HPT604-LT, a high-performance submersible pressure level transducer designed for accurate level and temperature measurement of various fuels. Say goodbye to the challenges faced by other sensors when measuring oil levels in irregular tanks. This innovative solution not only measures liquid level but also provides precise volume and percentage readings.

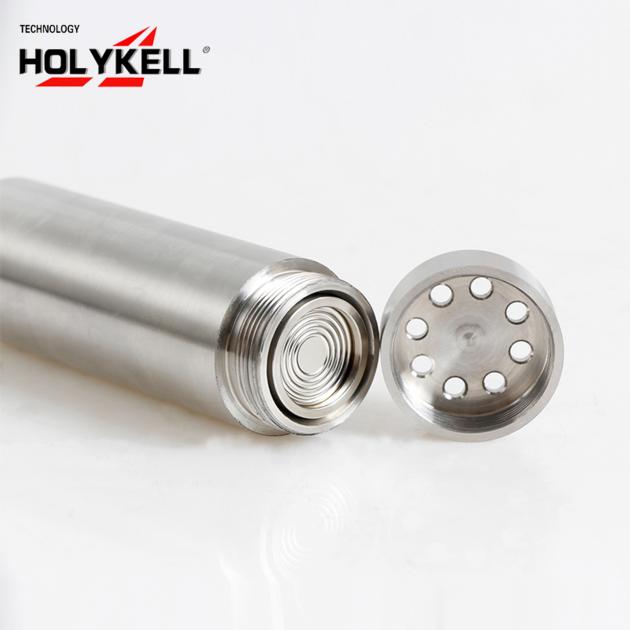

Our state-of-the-art design tackles issues such as temperature drift and overall accuracy, guaranteeing reliable measurements across the entire temperature range. Encased in a robust full SUS304 housing, HPT604-LT features a high-quality GE piezoresistive sensing element imported from the USA.
this transducer includes a vented tube that automatically compensates for atmospheric pressure changes above the tank. Our maintenance-free filter ensures no particulate matter or water droplets can enter the transducer, ensuring long-lasting performance.
HPT604-LT incorporates lightning and surge protection, providing peace of mind and preventing any reverse connection mishaps. Experience unmatched reliability and precision with HPT604-LT, your ultimate solution for fuel level and temperature measurement.
Pressure Range 0-0.1bar…..2bar / 0-1m……..20m fuel level Optional (See P1 page description)
Overload 200% F.S.
Burst Pressure 500% F.S.
Accuracy ≤ ¯0.5%F.S (≥2m level range and between 0-50 degree C);
≤ ¯1.0%F.S (0.5m≤Level Range<2m level range and between 0-50 degree C)
(Linearity Hysteresis Including non-lin., rep. and hys.
Repeatability) Optional
Long-term Stability ≤ ¯0.1 % of span/year
Temperature Range -30 to +70 degree C
Temperature Accuracy ¯1%F.S. (¯ 1 ℃)
Working Temp. -40-80℃(non-corrosive medium)
Storage Temp. -40℃~80℃(Nitrile rubber sealing ring); -20℃~80℃(fluororubber rubber sealing ring)
Temperature
Compensation 0-80℃
Medium compatible Compatible with SUS304 Stainless Steel
Electronic Wire 4 wires
Output RS485 Modbus RTU
Power Supply 3.5-36Vdc
Polarity protection Available for signal wires or Power wires each other reverse, unavailable signal and power wire reverse!
|
