Hollow Shaft Slip Rings Roatary Joint series,Through Bore Slip Ring
| Price: | US$ 100 / Piece |
|---|---|
| Minimum Order: | 1 pcs |
| Payment Terms: | EXW Shenzhen |
| Port of Export: | Yantian,Shenzhen |
Product Details
| Model No.: | JSR-TH Series | Brand Name: | JARCH |
|---|
| Certification: | CE,FCC,ROHS |
|---|---|
| Specification: |
Custom slip rings are also available—Contact us to discuss your custom requirements.
Size Body Diameter Bore Diameter Signal Count TH03 17 mm 3 mm 2-8 circuits TH05 22 mm 4.5 mm 2-8 circuits TH12 54 mm 12.7 mm 2-24 circuits TH25 78 mm 25.4 mm 2-48 circuits TH38 99 mm 38.1 mm 2-48 circuits TH50 120 mm 50 mm 2-72 circuits TH60 135 mm 60 mm 2-96 circuits TH70 155 mm 70 mm 2-96 circuits TH80 180 mm 80 mm 2-96 circuits TH90 190 mm 90 mm 2-96 circuits TH100 203 mm 100 mm 2-96 circuits TH300 *** *** *** TH500 *** *** *** |
Packaging & Delivery
| Packaging: | Gift box or custom packing |
|---|---|
| Delivery/Lead Time: | 7 WORKING DAYS |
| Production Capacity: |
Product Description

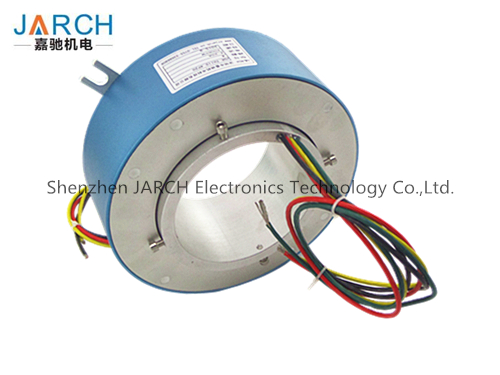

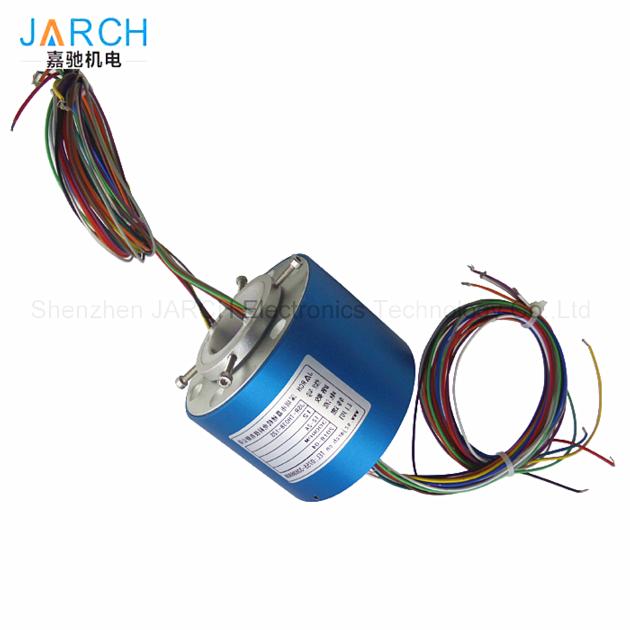

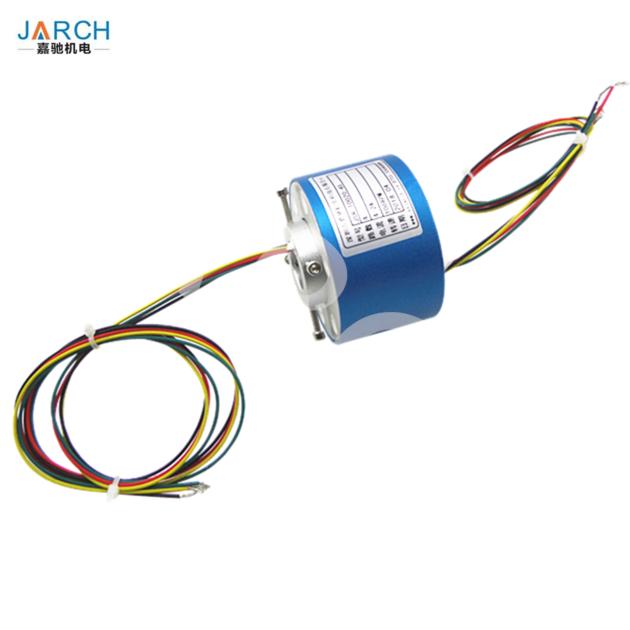

JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.
Through Bore Slip Ring Product Details
Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.
|
