High quality Neodymium U YOKE Speakers part made in Taiwan

Areas of Application:
Home audio loudspeakers driver
Neodymium Sub-Woofer dirver
P.A. loudspeakers driver
Car loudspeakers driver
Neodymium cone driver
Alarm Siren driver
Horn Speakers driver
Compression driver
Tweeter

Production capacity:

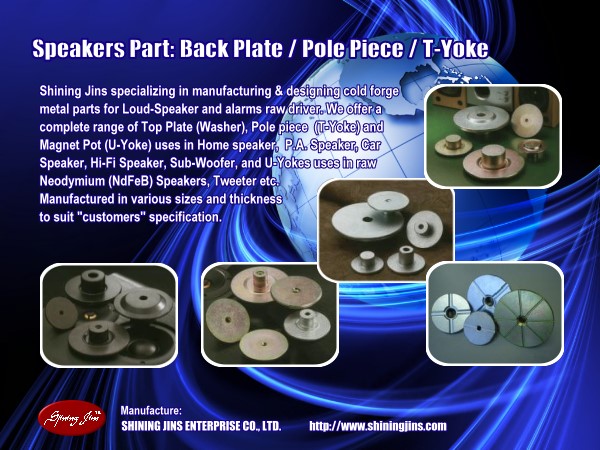

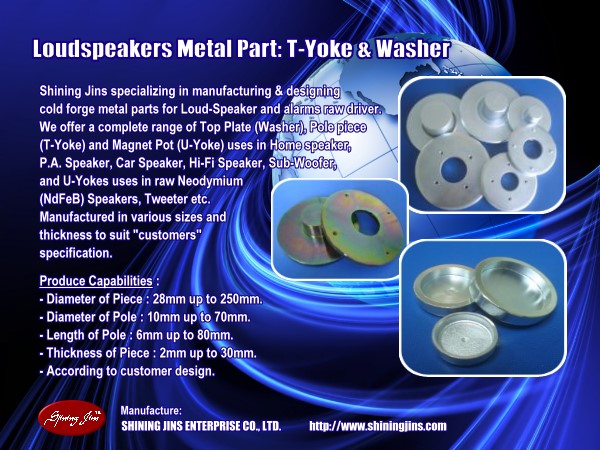

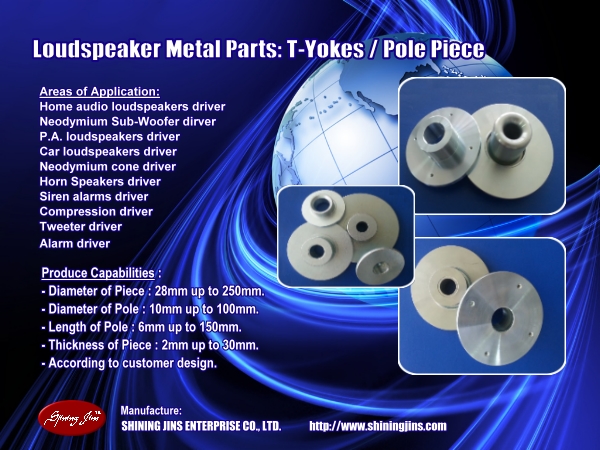

T-Yoke/Pole Piece :
Diameter of Piece : 28mm up to 250mm
Diameter of Pole : 10mm up to 100mm
Length of Pole : 6mm up to 80mm
Thickness of Piece : 2mm up to 30mm

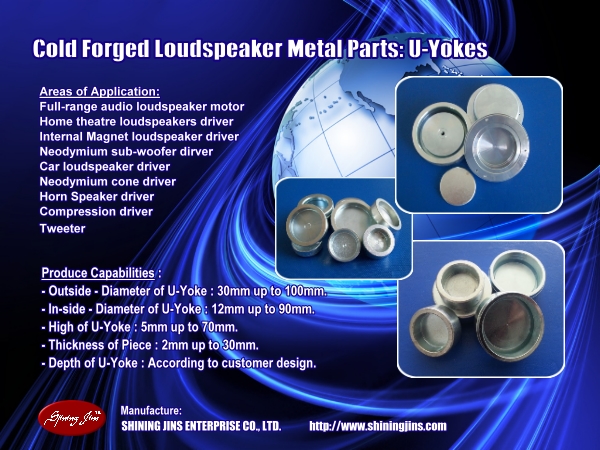

U-Yoke/Neodymium Yoke :
Outside - Diameter of U-Yoke : 30mm up to 100mm
ln-side - Diameter of U-Yoke : 12mm up to 90mm
High of U-Yoke : 5mm up to 70mm
Thickness of Piece : 2mm up to 30mm
Depth of U-Yoke : According to customer design

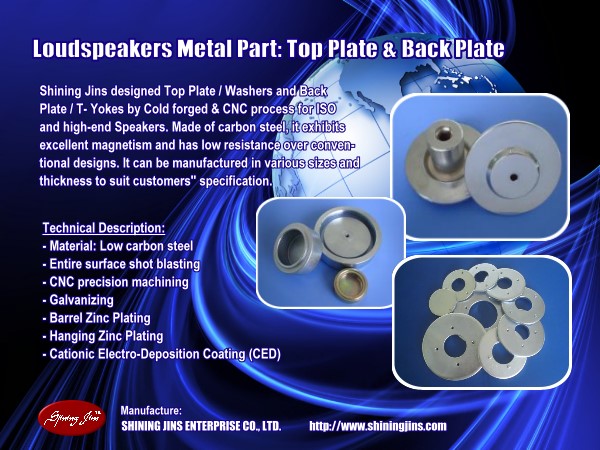

Technical Description:

- Material: Low carbon steel
- Entire surface shot blasting
- CNC precision machining
- Galvanizing
- Barrel Zinc Plating
- Hanging Zinc Plating
- Cationic Electro-Deposition Coating (CED)

Please visit our website to have a further understanding about the full range of our products.
Your any inquiry would take our full attention.

SHINING JINS ENTERPRISE CO., LTD.
No.107, Lane 530, Sec. 1, Guoji Road, Taoyuan Dist., Taoyuan City 330, Taiwan.
Tel: +886-3-361 0638 Fax: +886-3-367 7527
