High Precision Crossed Roller Bearings Ru178xuucc0. P5 for Assembly Lines

THB RU178GUUCC0.P5

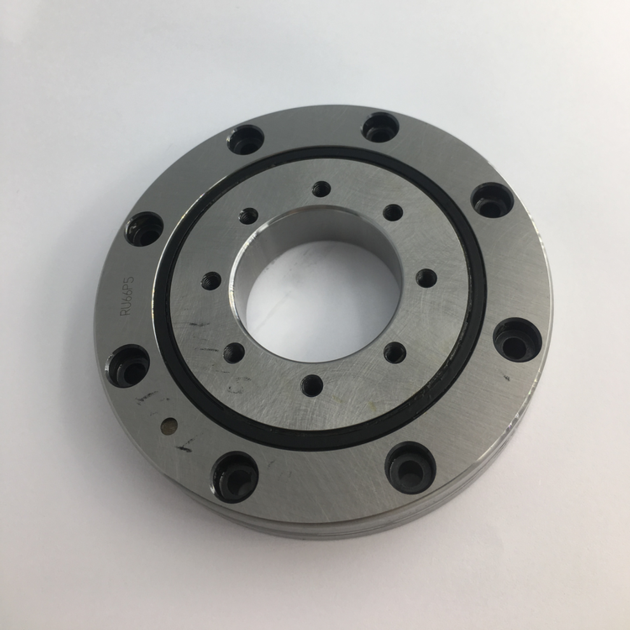

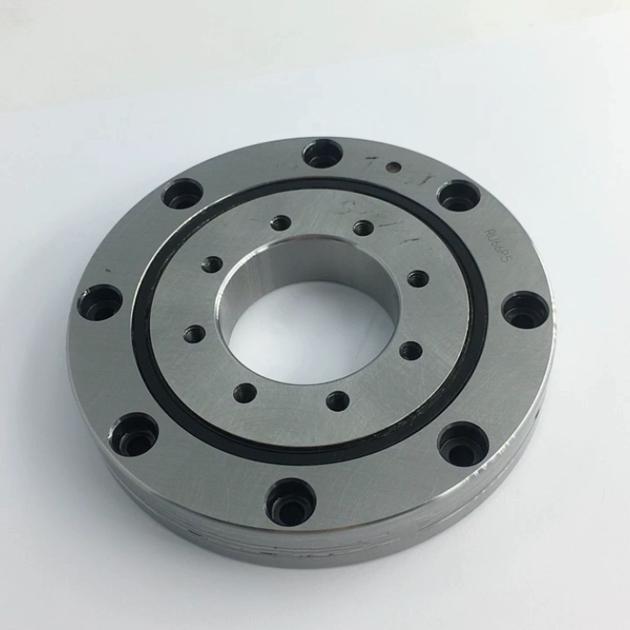

High precision crossed roller bearings, integrated outer ring and inner ring
Inner diameter: 115mm
Outer diameter: 240mm
Roller pitch circle diameter: 178mm
Width: 28mm
rmin: 1.5mm
Basic static load rating, radial: C=80.3kN
Basic dynamic load rating, radial: C0=135kN
Mass: 6.8kg
Major application: the index table swiveling unit of machine tools, robots, hydraulic manipulators.
THB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90®V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
THB SX Standard Type(separable Outer ring for Inner Ring Rotation)
THB SX standard type is a bearing similar to a RB standard type. The two separable outer rings are connected by circlips.
