HPT604-BS Submersible Fuel Level Pressure Transmitter With Magnetic Suction End Cap
| Price: | US$ 159 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Various payment terms |
| Port of Export: |
Product Details
| Model No.: | HPT604-BS | Brand Name: | Holykell |
|---|
| Certification: | |
|---|---|
| Specification: |
Holykell, founded in 2001, is a market leader in pressure, temperature, level and flow measurement technology. We've become a preferred partner for OEMs because we always strive to exceed our customers' expectations. Working together with our customers, we develop comprehensive solutions based on our high-quality measurement technology components, with the solutions ultimately being integrated in their business processes.Holykell has set itself the goal of developing innovative measurement technology that is easy to install,operate and offers maximum safety and reliability.
HOLYKELL has been providing various pressure sensors, level sensors, temperature sensors, flow meters, matching digital controllers, and one-stop solutions for different areas and fields for more than 20 years. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

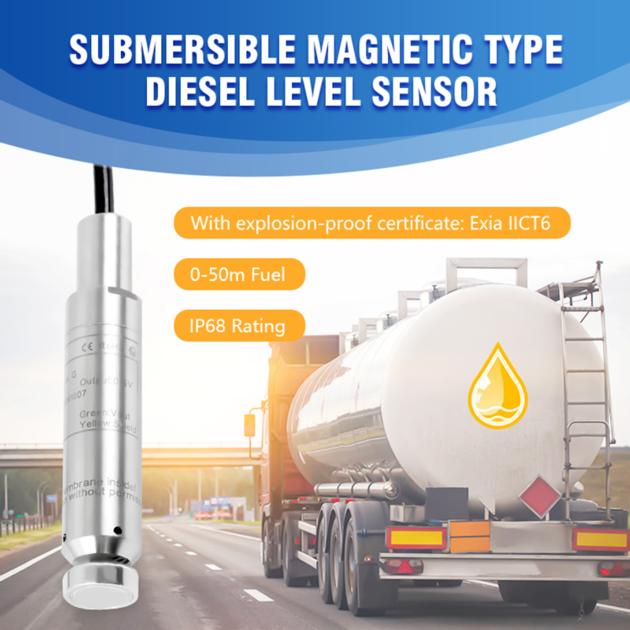

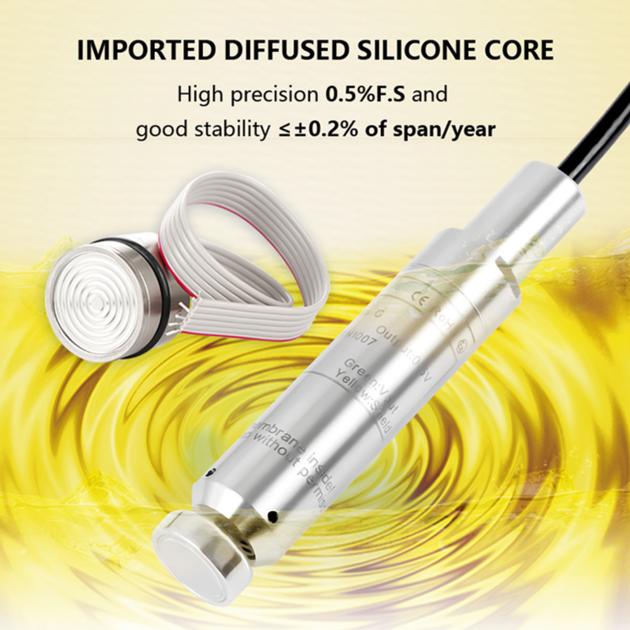

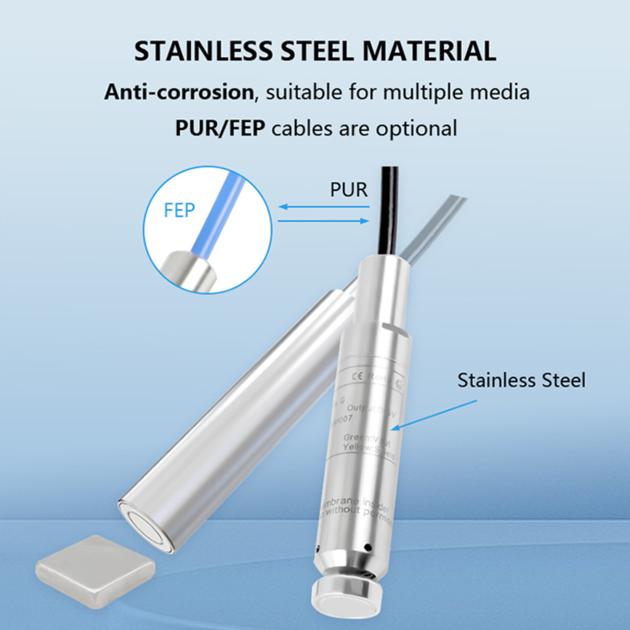

HPT604-BS type is a submersible fuel level transducer suitable for fuel level and depth measurement. It consists of an Germany imported FS piezoresistive sensing element encased in 304SS housing. It’s all stainless steel, the hermetically sealed housing makes it suitable for immersion in most industrial liquids and oils.

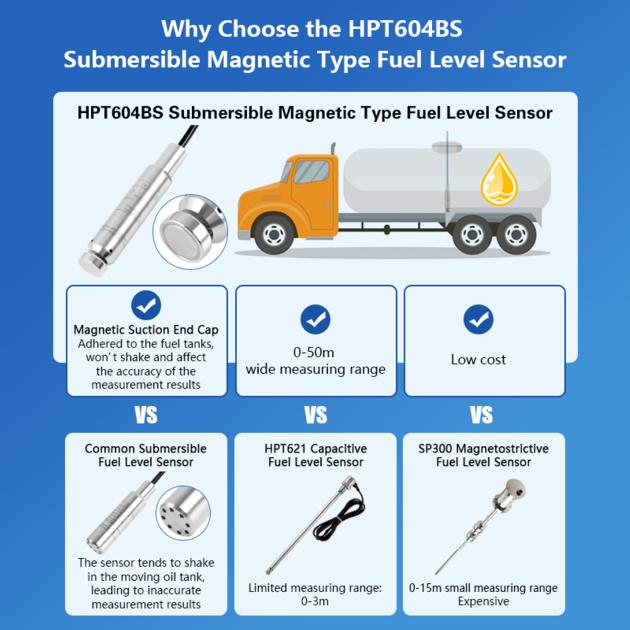

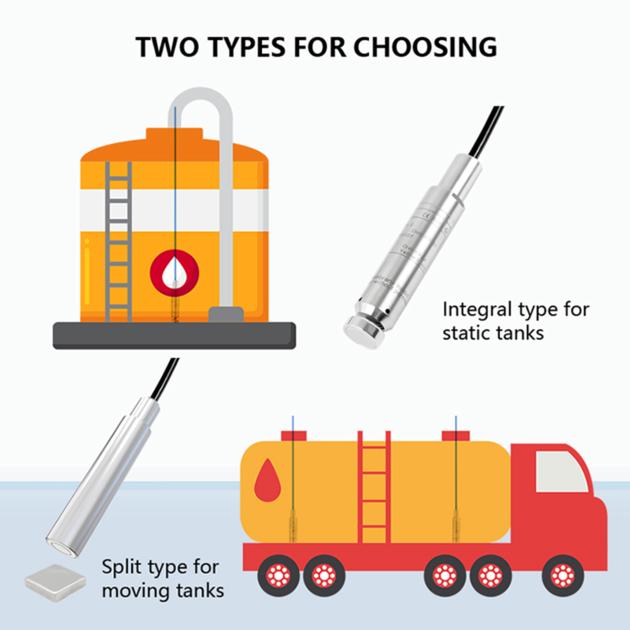

This submersible level transducer is designed with a magnetic suction end cap to fix the sensor at the bottom of the tanks or vessels and prevent the sensor shaking in the liquid. Two designs are provided for static and moving fuel tanks separately. This design will eliminate the negative effect of shaking on measurement accuracy.
The HPT604BS incorporates lightning and surge protection utilizes dual arrestor technology, and assures normal work under the input and output short-circuit conditions to prevent reverse connection. And it eliminates both power supply surges and lightning ground strike transients.
Pressure Range 0-0.05 Bar…..5 Bar / 0-0.5M……..50m fuel level optional (See P1 page description)
Accuracy ≤ ¯0.5%F.S (Typical for 1m to 50m range); ≤ ¯1.0%F.S(Typical for 0-1m range) @25 degree C
Long-term Stability ≤ ¯0.2% of span/year
Working Temp. -30-80℃(non-corrosive medium)
Storage Temp -40℃~80℃
Temperature
Compensation 0~50℃
Medium compatible Compatible with 304 Stainless Steel
Electrical Wire 2 Wires 3 Wires 4 wires
Output 4-20mA 1-5V;0-5V 0-10V 0.5-4.5V RS485 Modbus RTU
Power Supply 7-30Vdc 8-30Vdc 13-30Vdc 5Vdc¯5% 3.5-36Vdc
Electrical connection Fixed cable and water proof IP68
|
