Genuine Printhead Dimatix Sapphire QS-256/80 AAA

Genuine Printhead Dimatix Sapphire QS-256/80 AAA

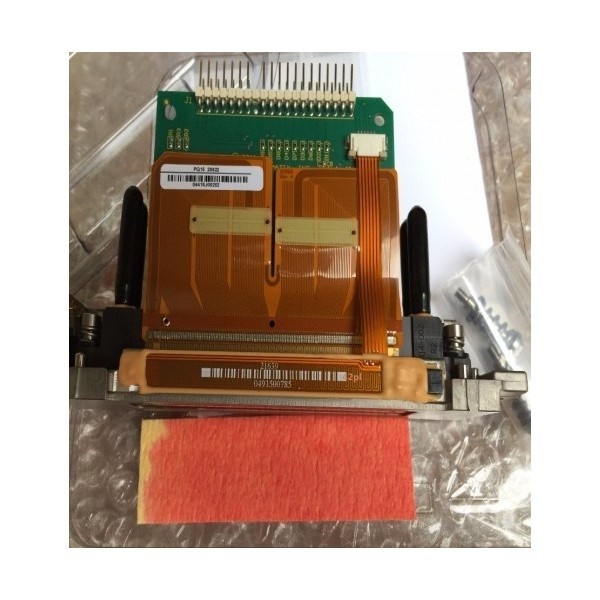

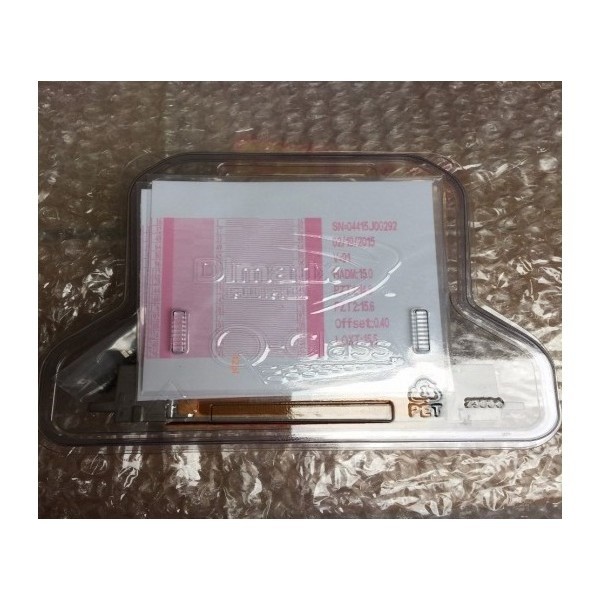

FujiFilm Spectra Dimatix Sapphire QS-256/80 AAA Printhead
The Sapphire QS-256/80 AAA printhead features 256 independent channels, arranged in a single row of nozzles at 100 dots-per-inch spacing.

It is designed to eject adjustable 80 to 200 picoliter drops in binary jetting mode or an 80-picoliter fundamental drop in grayscale mode with resolutions up to 450 dpi. This is done at a nominal 8-meter per second drop velocity when jetting fluids in the 10 to 14 centipoise range.

Features:

80 picoliter nominal drop size

Resolutions up to 450 dpi

256 individually addressable, inline nozzles

VersaDrop™ binary and grayscale jetting modes

Precise alignment features facilitate drop-in replacement

Lightweight with thin profile

Supports UV-curable, solvent, and aqueous-based inks

Integral temperature sensor

Dual-ported with minimal wetted surface area

OEM accessible non-volatile memory area for tracking purposes
