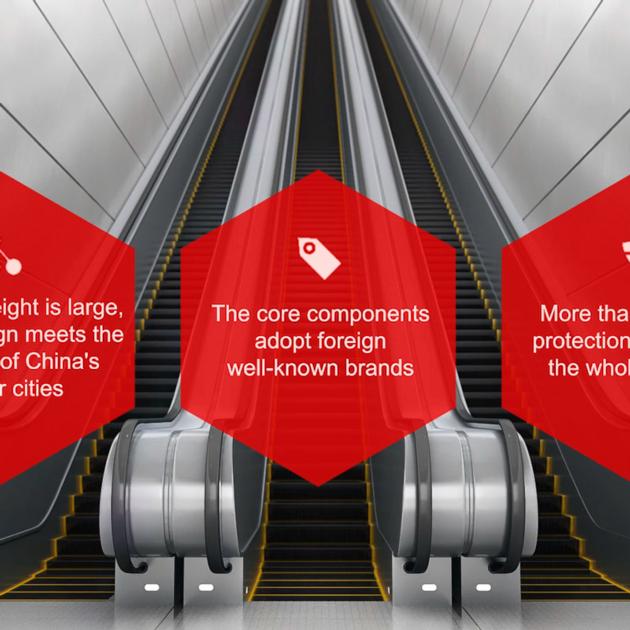

GRACES-700 Public Transport Escalator

GRACES-700 Public Transport Inclined Escalator
Grace -700 heavy-duty public transport elevators and escalators are suitable for public transport systems such as airports, railway stations, and shopping centers, meeting passenger flow needs and equipment safety tests at different times.

Specification Of GRACES-700 Public Transport Escalator
Specification GRACES-HD/700

Lifting height range/m 3≤H≤25
Use segment length/m --
Tilt angle/® 27.3/30
Nominal width/mm 1000
Nominal speed/m/s 0.5/0.65
Applicable environment Indoor/Outdoor
The type of work Public transport heavy-duty type
Handrail structure Vertical armrests
Stainless steel diagonal armrest
Drag method VVVF
Startup mode Frequency conversion low speed
Frequency conversion self-starting


Number of horizontal steps as standard H≤6m 4
H>6m 4
Pedal depth/mm as standard --
Additional brakes H≤6m Yes
H>6m Yes
Truss deflection ≤1/1500
Safety factor for moving parts ≥8

If you want to find a reliable elevators company, please choose us, and we will be your best partner.

IFE Elevators & Escalators is company that specialises in the design, manufacturing, installation and maintenance of a broad range of lifts, escalators and moving walkways for commercial and residential buildings. We are a trusted brand name and have been manufacturing our products for over 30 years. Our products are of Australian Standard Compliance and we currently have a presence in around 50 countries. Contact us today for your next project so we can provide you with an all round total solution.
