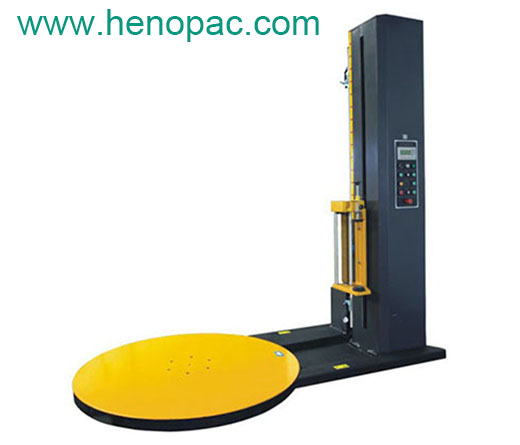

G2 pallet Wrapper Mechanical Brake
| Price: | US$ $7,000 each |
|---|---|
| Minimum Order: | 1piece |
| Payment Terms: | 100% pre-paid. |
| Port of Export: | shenzhen |
Product Details
| Model No.: | G2 | Brand Name: | Henopac |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Wrap speed: 30 – 40 pallets/hour
Turntable diameter: 1500mm Turntable speed: 3 - 15rpm Max load weight: 2000kgs Wrapping height: 2100mm Turntable height: 82mm Carriage type: mechanical brake, 150% ratio Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap Carriage speed: 5 meters/min max Turntable motor: 0.75kw Carriage lifter motor: 0.37kw Power: 1PH 220VAC, 50/60Hz Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs |
Packaging & Delivery
| Packaging: | The packages not have the black and transparency goods |
|---|---|
| Delivery/Lead Time: | 3-4months |
| Production Capacity: | 500/year |
Product Description
Voltage: 1 phase AC 220V 50HZ
turntable diameter:∮1500mm
turntable speed :3-15 rpm adustable
stand column material:2 mm thickness cold rolled plate
wrapping height:2100mm
Loading weight:2000Kg
film carriage mode:
powered pre-stretch,ratio 150%
film carriage speed:3m/min adjustable
film type: stretch film thickness 17-35microns Width500mm paper core76mm max diameter 250mm
PLC: Panasonic/Japan
Inverters: Schneider/France motors:Liming/Taiwan
Gear boxes:Liming/Taiwan
Photocell:Fotek /Taiwan
Proximity switch: Fotek /Taiwan
Limited switch:STEIMEX/Germany
soft start and soft stop
overload protection
over voltage protection
over current protection
not include the ramp
Options:
1. Turntable diameter 1650mm, 1800mm, or 2000mm
2. Wrapping height 2400mm or 2600mm
3. Access ramp for loading
4. Turntable could be M-shaped
5. Top platen driven pneumatically for light products
6. Ring bearing structure turntable for extra heavy loads.Product advantage
• Auto detection of load height by photocell
• PLC Controlled
• Easy to set up and operate
Product resources
G2 Semi-auto Pallet Wrapper Mechanical Brake offers the best value for factory operators to increase worker efficiency and reduce labor.
The main performance parameters
|
