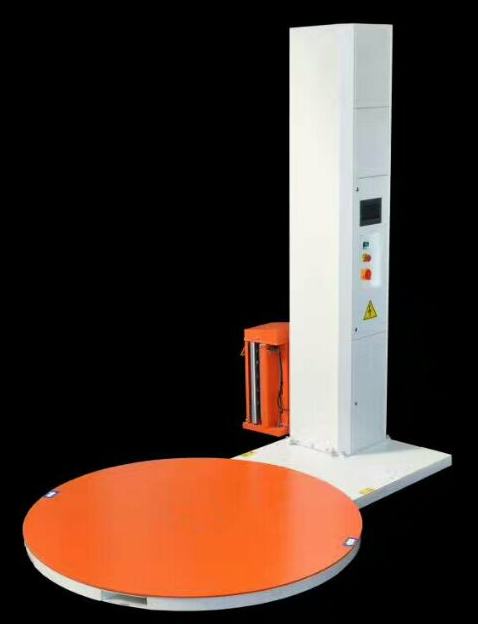

G1 Semi-auto pallet wrapping machine with powered pre-stretch film carriage
| Price: | US$ 5500 / Bag |
|---|---|
| Minimum Order: | 1piece |
| Payment Terms: | 100% pre-paid. |
| Port of Export: | shenzhen |
Product Details
| Model No.: | G1 | Brand Name: | Henopac |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
PLC controlled, easy wrapping program setting.
Both one touch automatic programs and manual run are available. Film tension, turntable speed & carriage speed adjustable on panel. Turntable soft start & stop. Turntable home position. Automatic detection of pallet height by photocell. 250% power stretch, film savings. Open type carriage for easy film threading. Carriage driven by dual chain system. Specifications: Wrap speed: 30 – 40 pallets/hour Turntable diameter: 1500mm Turntable speed: 3 - 15rpm Max load weight: 2000kgs Wrapping height: 2100mm Turntable height: 82mm Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap Carriage speed: 5 meters/min max Turntable motor: 0.75kw Pre-stretch motor: 0.2kw Carriage lifter motor: 0.37kw Power: 1PH 220VAC, 50/60Hz Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs |
Packaging & Delivery
| Packaging: | The packages not have the black and transparency goods |
|---|---|
| Delivery/Lead Time: | 3-4months |
| Production Capacity: | 500/year |
Product Description
Voltage: 1 phase AC 220V 50HZ
turntable diameter:∮1650mm
turntable speed :3-15 rpm adustable
stand column material:2 mm thickness cold rolled plate
wrapping height:2100mm
Loading weight:2000Kg
film carriage mode:
constact tension powered pre-stretch film carriage ,ratio:300%
film tension can adjustable
film carriage speed:3m/min adjustable
PLC: Delixi
touch screen HMI:Delixi
Inverters:Delixi
motors:Liming/Taiwan
Gear boxes:Liming/Taiwan
Photocell:Fotek /Taiwan
Proximity switch: Fotek /Taiwan
safety door for safety to assemble roller film
safety bottom plate to keep safety when people under the film carriage when the film carriage down
soft start and soft stop
overload protection
over voltage protection
over current protection
Product advantage
Powered pre-stretch 250%, film savings
Auto detection of load height by photocell
Easy setting of wrapping parameters. Easy to operate
Product resources
Stretch wrapping machines are used to wrap film around a loaded pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage. It's been widely used in industries such as glassware, tools, electric electronic, paper, pottery, food beverage, etc.he main performance parameters
Options:
1. Turntable diameter 1650mm, 1800mm, or 2000mm
2. Wrapping height 2400mm or 2600mm
3. Access ramp for loading
4. Turntable could be M-shaped

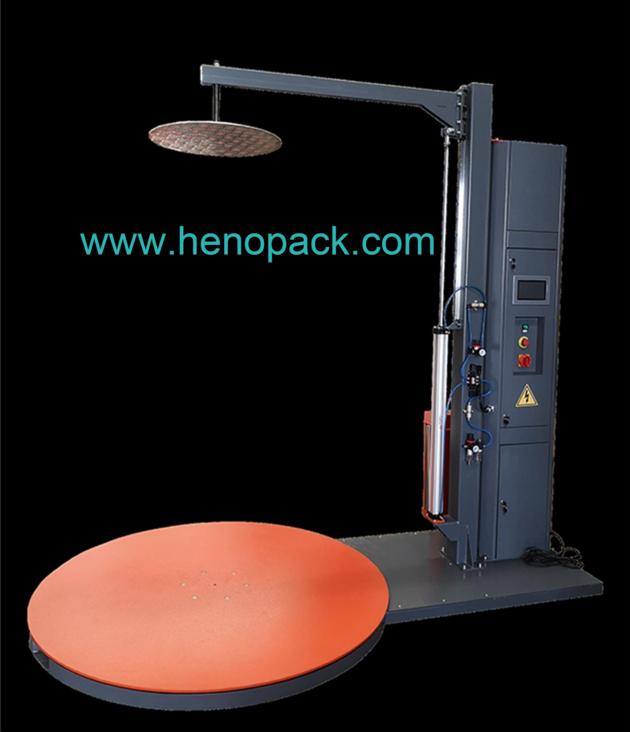

5. Top platen driven pneumatically for light products
6. Ring bearing structure turntable for extra heavy loads.
|
