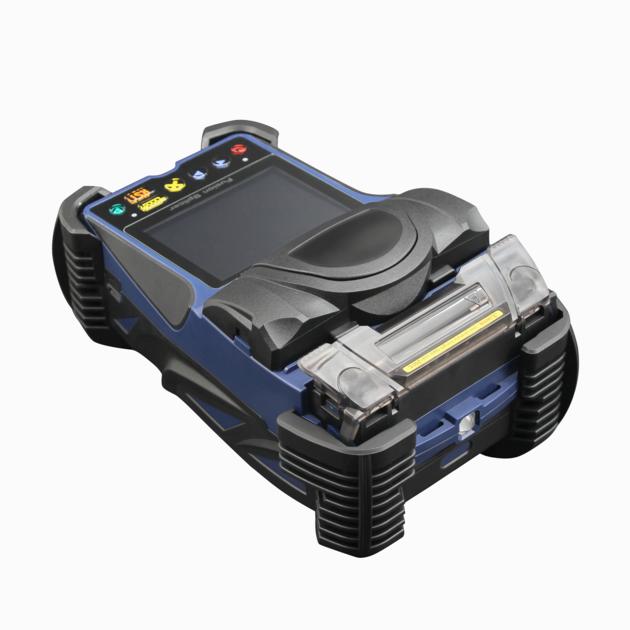

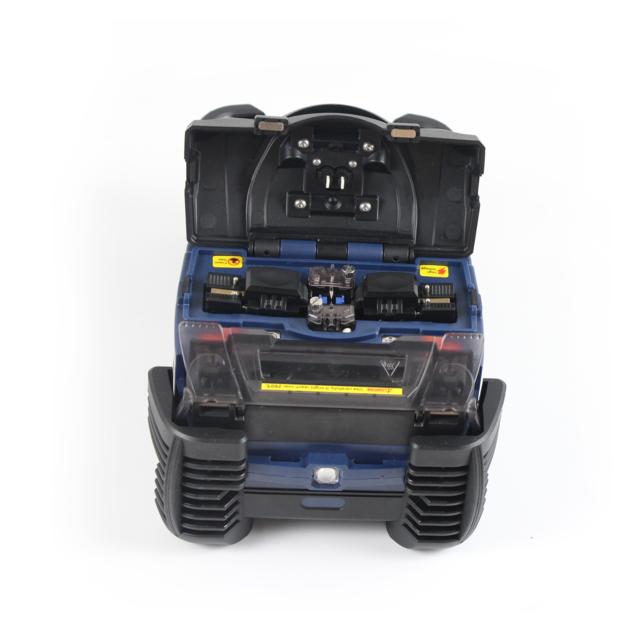

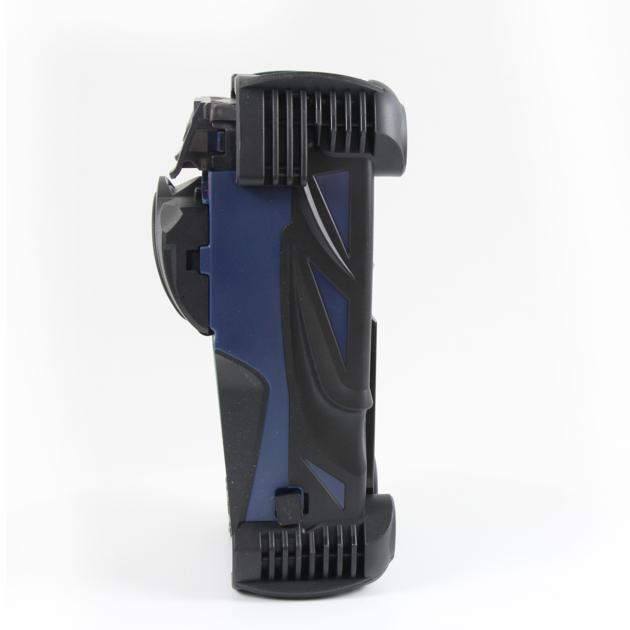

Fusion Splicing Machine Automatic Handheld Fusion
| Price: | US$ 664$ / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | Model Number: FST-V3 | Brand Name: | HDV-Fiber |
|---|
| Certification: | FCC, RoHS, ce |
|---|---|
| Specification: |
Type: Fiber fusion splicer
Product name: Optical Fiber Fusion Splicer Use: FTTx Time to Turn on: 3S Splice Time: 6S Heating Time: 15-30S Battery: Detachable Protection Sleeve Length: 20-60mm Operation: Touch screen & keypad operation Splicing Mode: Preset 41 splicing modes, storable 100 modes Appicable Fibers: SM(ITU-T G. 652&G.657), MM(ITU-T G.),DS(ITU-TG.653), NZDS(ITU-T G655) Compatible Fiber/Cable: 0.25-3.0mm/Indoor Cable Warranty Time: 1 Year |
Packaging & Delivery

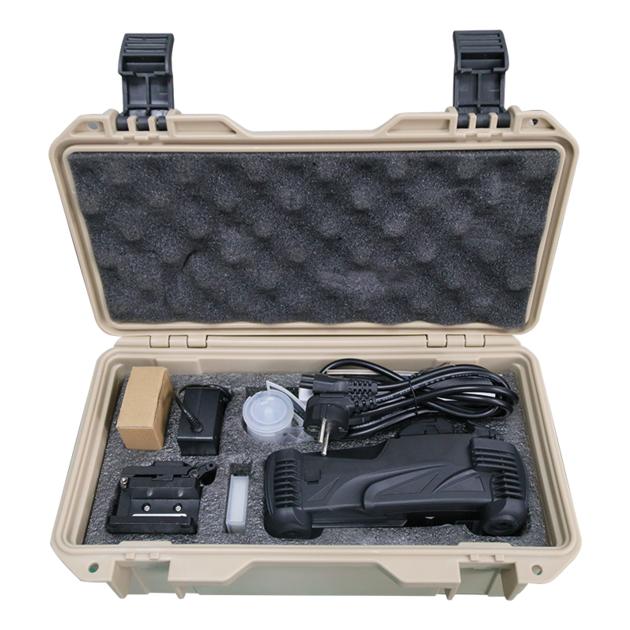

| Packaging: | Optical fiber fusion splicer host, Fiber cleaver, large capacity lithium battery, Power supply devic |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |
Product Description
Technical Specifications
Appicable Fibers
SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable
0.25-3.0mm/Indoor Cable
Cladding diameter
Coating Diameter: 0.125-1mm/Cladding diameter:80-150μm/Cleave length:8-16mm
Splicing Mode
Preset 41 splicing modes, storable 100 modes
Typical Splice Loss
SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard)
Return Loss
≥60db

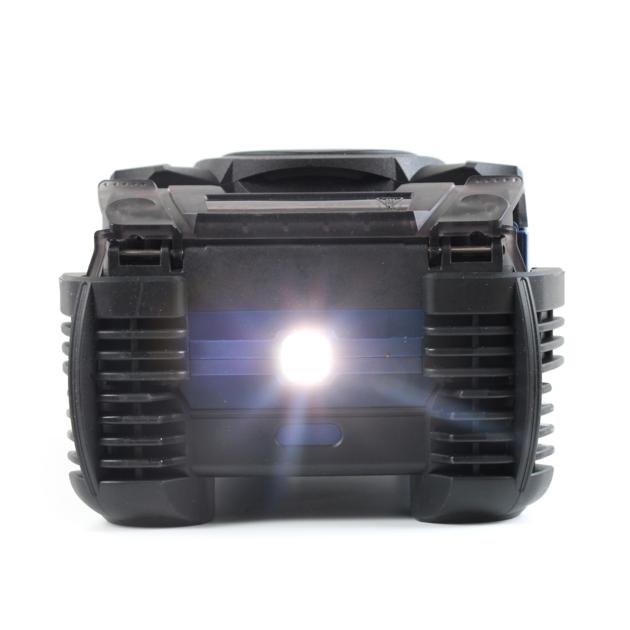

Lighting
2 powerful white LEDs
Splicing Time
SM fast mode: 6s
Estimated Splice Loss
yes
Protection Sleeve Length
20-60mm
Heating tank
Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes
Heating Time
Fast heating time: 13s, Typical Heating Time: 30s
Results Storage
20000 latest records & 200 images
Tension Test
1.5-2.0N
Display
3.5" high resolution display with touch screen
Fiber View & Magnification
X,Y,XY,X/Y:380×Magnification
Power Supply
AC Input 100-240V,DC Input 12-15V
Battery capacity
2200mAh battery capacity
Heating times
typical above 120 times(splicing+heating)
Operating Methods
Button/Touch Screen
Automatic Calibration
Automatic ARC calibration by air pressure and temperature
Electrode Life
5000 ARCS
Terminal
USB 2.0
Weight
1.15 KG (including rubber Bumper)
Dimension
132W*205L*98Hmm (including rubber Bumper)
Operating Condition
Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s
Storage Condition
0~95% relative humidity, -40~80℃; battery storage: -20~30℃
|
