Fast Ethernet 10/100M fiber to ethernet single fiber 10km SC Optic Media Converter
| Price: | US$ 100 |
|---|---|
| Minimum Order: | 1 piece |
| Payment Terms: | T/T |
| Port of Export: | Beijing, Tianjin |
Product Details
| Model No.: | W8100-10F-3S fiber media converter | Brand Name: | GRT |
|---|
| Certification: | CE, FCC, RoHS |
|---|---|
| Specification: |

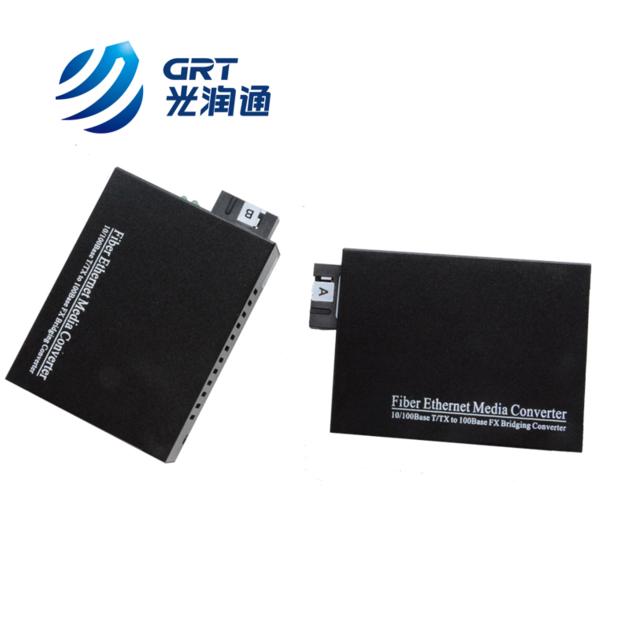

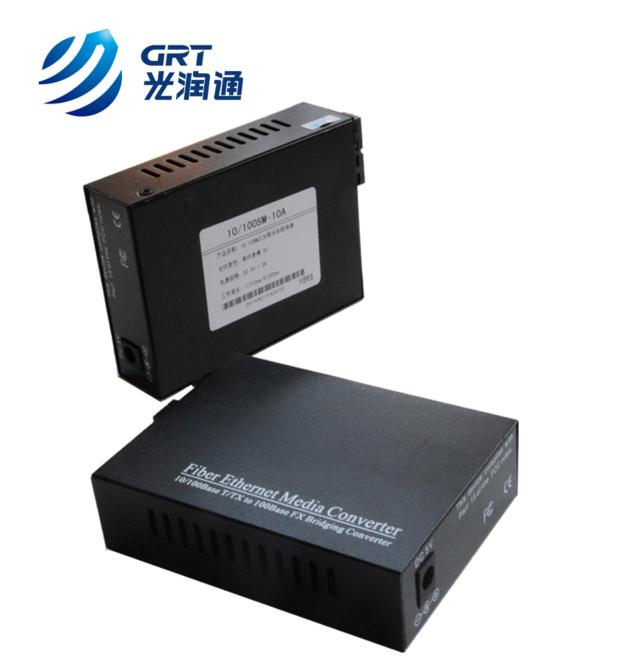

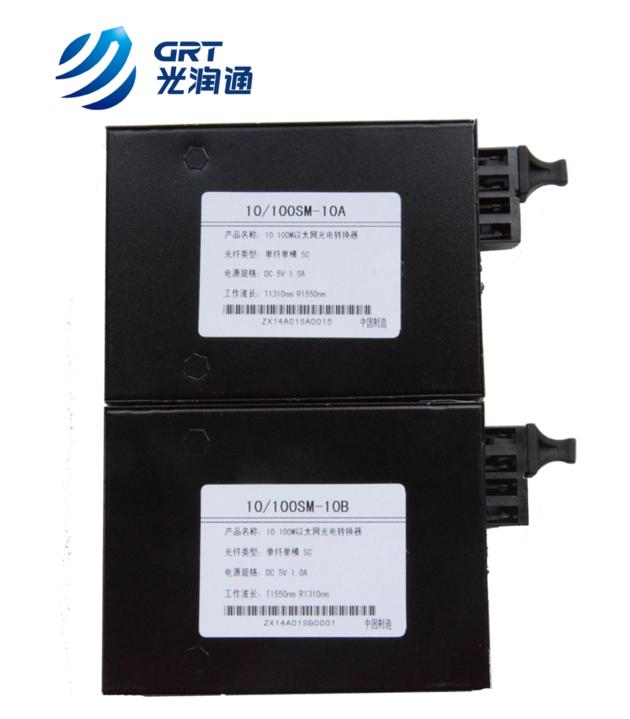

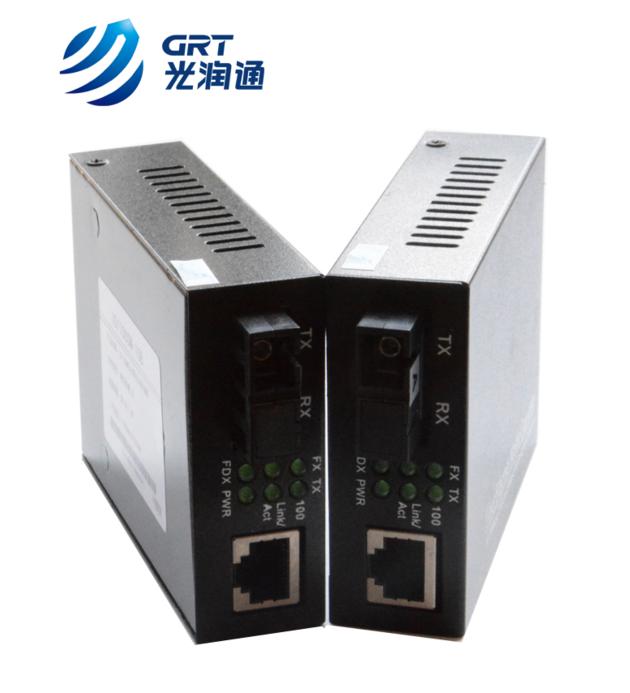

Fast Ethernet 10/100M fiber to ethernet single fiber 10km SC Optic Media Converter
1. Introduction W8100-10F-3S/5S is a reliable and cost-effective 10/100M Single Fiber media converter with one SC connector and one RJ45 port. it can realize the conversion of 10M/100M Ethernet copper interface and optical interface effectively. This device operates on singlemode 1310nm and 1550nm in a pair, can reach up to 10km. Various types of Fiber media converter are available: 10/100M, 10/100/100M, single mode/multi mode, single fiber/dual fiber, Built-in power supply, External power supply, Plug type/ Frame type Protocols: IEEE802.1Q IEEE802.3X IEEE802.1D 10/100/1000M Fiber Media Converter Parameters External power supply Internal Power Supply Protocols IEEE802.1Q, IEEE802.3X, IEEE802.1D Interface Copper RJ45: 10/100/100M Fiber: 1×9/SFP/FC/SC Converting method Store and forward Packet forwarding 16000bytes LFP(failover) support Time delay store and forward:9.6us MTBF 65,000hour Power supply Input: AC90-264V, DC100-380V, Output: DC5V 1A Input: AC90-264V, DC100-380V Power consumption <2W Operating temperature -10 - 55® Operating Humidity 5%-90% Storage temperature -10 - 55® Storage humidity 5%-90% non condensation Dimension(mm) 95×70×26 140×110×32 |
Packaging & Delivery
| Packaging: | Fiber media converter to be packed in carton. With GRT label or by OEM. |
|---|---|
| Delivery/Lead Time: | Normal orders: within 2 working days upon receipt of payment |
| Production Capacity: | 180000pieces per month |
Product Description
2. Key Features
-- Built-in efficient exchange Kernel, supress the broadcast storm, realize flow control, Cyclic Redundancy Check(CRC)
-- Support 100Base-FX fiber transmission standard, can be connected with other products
-- Support SPANNING TREE fault-tolerant network
-- 10/100/1000Mbps self-adaptive, Full/half duplex auto-negotiation, can be upgraded smoothly.
-- Maximum transmission distance up to 10km.
|
