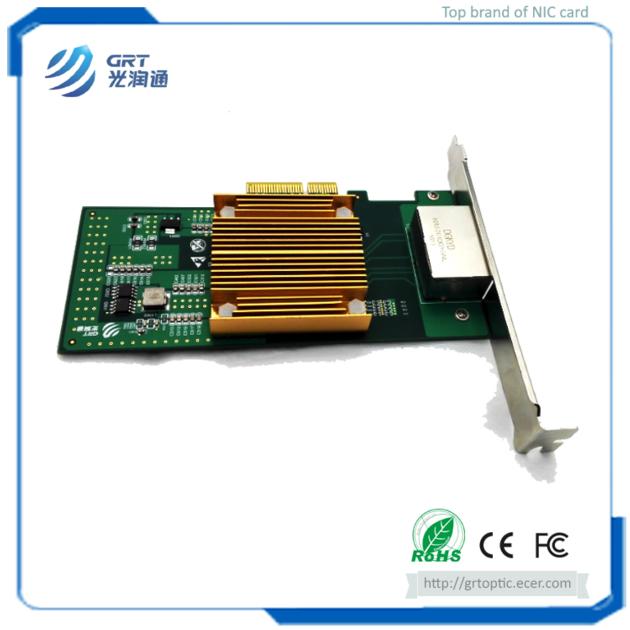

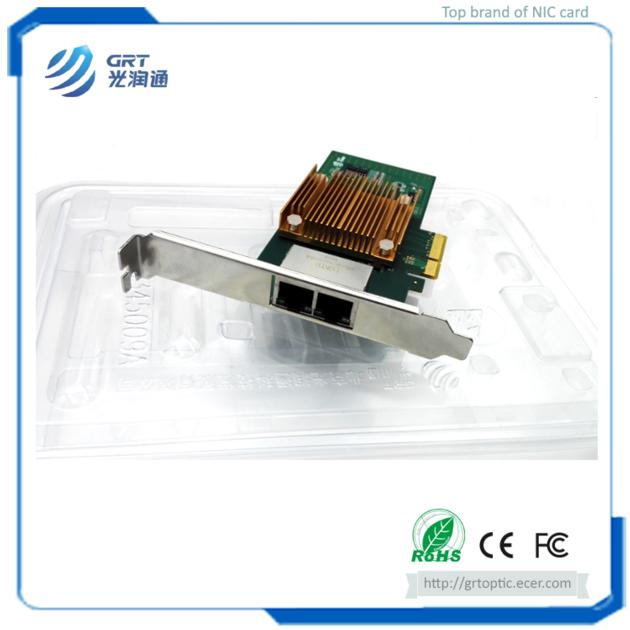

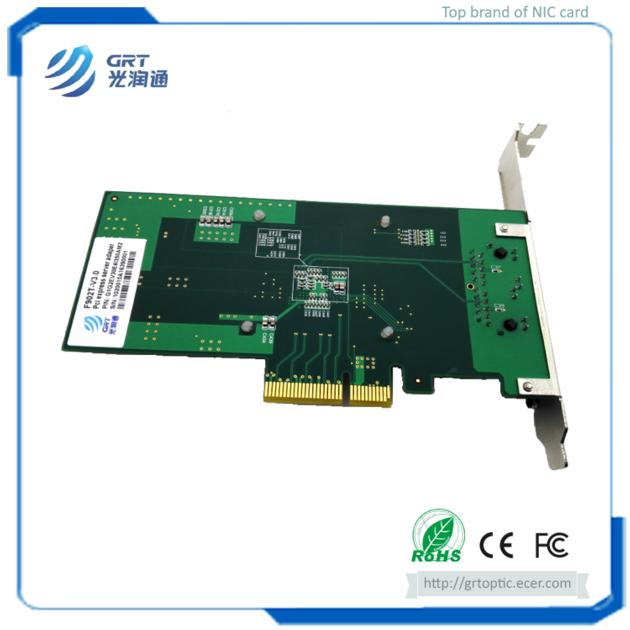

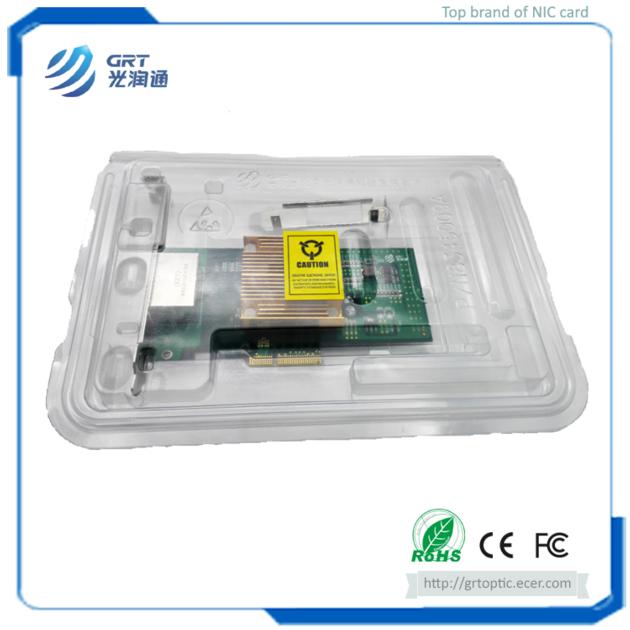

F902T PCIe 1G Gigabit 2-Port Copper RJ45 Intel I350 Chipset Fibre Optic Network Card

F902T V3.0 Gigabit Intel Chipset Based 2-Port RJ45 Fibre Ethernet Adapter
with optimized performance and new power scheme


Based on Intel chipset Ethernet Controller 2-Port RJ45 Network Adapter Card

1.Product Introduction

GRT's F902T V3.0 Intel I350 based Ethernet Adapter is suitable for servers and high-end devices. It is faul-tolerant through the bundle group, the communication from the fault port could be routed to other members within the group.
It has integrated hardware acceleration ability, capable of TCP/UDP/IP calibration and load-sharing, TCP segmenting. The host processing technology can be used to subload the accelerator and release the CPU resources to cope with other programs.
It is the ideal solution for multi-network deploying and key-network application and environment deploying on the high-performance servers.

2.Key Features

-- Supporting 1000Base-T, 100Base-TX, 10Base-T self-adaption
-- RJ45 port

Performance Features
--Each channel's data packet buffer capacity is very large, could reduce the CPU usage
--High performance,reliable,low power dissipation Integrated Intel MAC+PHY chipset controller
--TCP calbration and offloading, capable of subloading TCP/UDP.IP calibration, calculation and TCP segmenting
--802.1q VLAN tagging
--IEEE 802.3ad Link aggregation and load balancing
--Automatic Load Balancing(ALB) for Multi-CPU core
--Adapter Fault Tolerance(AFT), Switch Fault Tolerance(SFT)
--802.1p layer 2 priority encoding
--IEEE 802.1Q VLANs
