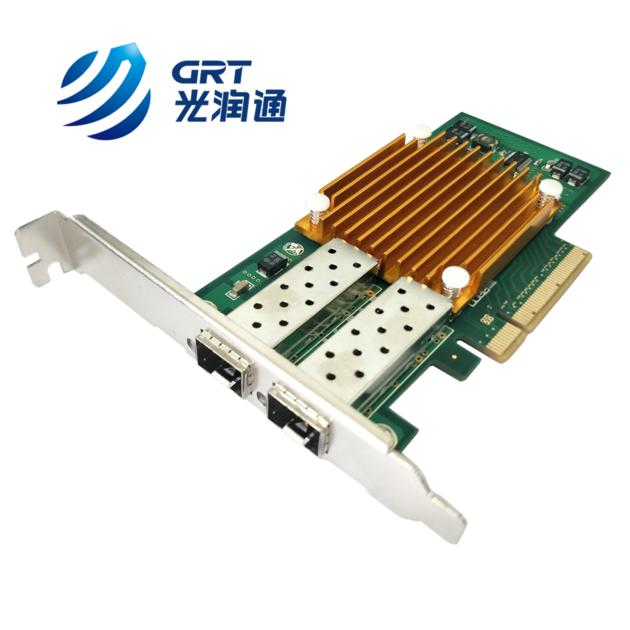

F902E 1000Mb Dual-port Fiber Optic SFP Bypass Network Adapter Card
| Price: | US$ 300 / Piece |
|---|---|
| Minimum Order: | 1piece |
| Payment Terms: | T/T |
| Port of Export: | Beijing, Tianjin |
Product Details
| Model No.: | F902EBypass V1.0 | Brand Name: | GRT |
|---|
| Certification: | CE, FCC, RoHS |
|---|---|
| Specification: |
Description: 1000Mb 2-Port Optical Fiber Ethernet Adapter Item No.: F902EBypass V1.0
Controller Model: Intel I350 AM4 Launch time: 26th Mar, 2015 F902E Bypass V1.0 network adapter card is based on Intel I350 AM2 Ethernet controller with dual port SFP, optimized performance and latest power optimization solutions. It supports both regular communication mode and Bypass mode. Regular mode: F902Ebypass.png Bypass Mode: F902Ebypass-1.png Under the Bypass mode, the data streams on the port 0 is diverted to the port1 to realize the bypass function. The bypass mode is triggered automatically when the power is off, no need for manual debugging and operating. 1. Key Features -- Supporting 1000Base-SX and 1000Base-LX -- 850mm1310nm1550nm, SFP pluggable -- LC Duplex connector 2. Specifications Model No. F902EBypass V1.0 Ethernet Controller Intel¬ I350AM2 Connector Type SFP Slot Type Max. Bus Rate PCI Express* 2.1 4 × 5 GT/s channel Port Dual Port Slot height 2U or 1U Smart Uninstall Yes Intel ¬ Virtualization Technology(Intel¬ VT) Integrated built-in function support: Quality of Service(QoS), Traffic Management, Flexible Port Partition, Virtual Machine Device Queues(VMDq), PCI-SIG* SR-IOV Ethernet Storage iSCSI,NFS Performance Optimization UDP/TCP/IP Checksum Offload UDP/TCP Transmit Segmentation Offloading(TSO) SCTP Receive and Transmit Checksum Offload Virtualization Next generation VMDq support(8 VMs) Support 8 vms per each port Support PCI-SIG I/O SR-IOV(Direct Assignment) Queue per Port: 8Tx and 8Rx Energy-Saving Features Advanced Configuration Power Interface(ACPI) Power Manage and Wake-on Advanced Power Management(APM) Wake-on Low Power Disconnection DMA Coalescing Power Management Timing & Synchronization IEEE 1588 Perfect Time Protocol (PTP) Time tagging for each packet Operating Temperature 0®C — 55®C Rated Power 2.5W Keywords: bypass adapter card, bypass card, bypass network card |
Packaging & Delivery
| Packaging: | Packed in blister box and paper box, 1piece/box, user manual & CD drivers included. |
|---|---|
| Delivery/Lead Time: | Normal orders: within 2 working days upon receipt of payment. |
| Production Capacity: | 180000pieces per month |
Product Description
Based on Intel¬I350 Ethernet Controller 1Gb Dual-Port PCIe fiber optical Network Card\
Description: 1000Mb 2-Port Optical Fiber Ethernet Adapter Item No.: F902EBypass V1.0
Controller Model: Intel I350 AM4 Launch time: 26th Mar, 2015
F902E Bypass V1.0 network adapter card is based on Intel I350 AM2 Ethernet controller with dual port SFP, optimized performance and latest power optimization solutions. It supports both regular communication mode and Bypass mode.
|
