Exmork EX2-40 clay brick making machine

Advantages:

1. EX2-40 is a manual clay interlocking brick making machine. It can produce two pieces brick per cycle. The capacity is 1800-2400 pieces per day.

2. EX2-40 is manual brick machine, it is no need electric power.

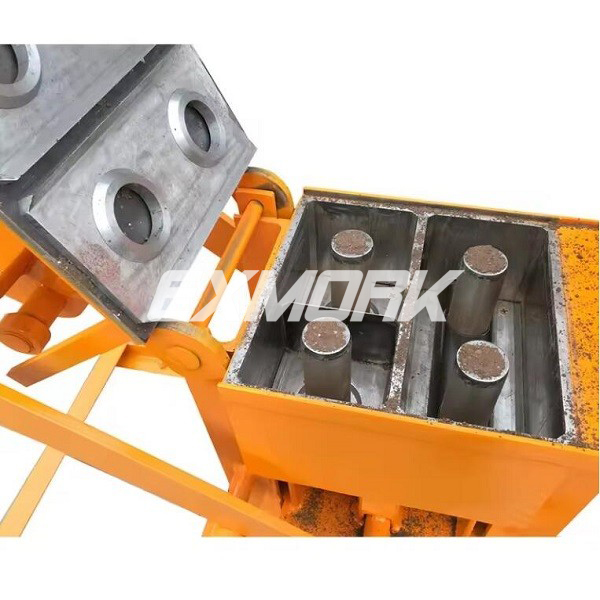

3. Its mould adopt precise line cutting technology and carburzing heat treatment technology. They can guarantee the brick moulds have better performance and longer service time.

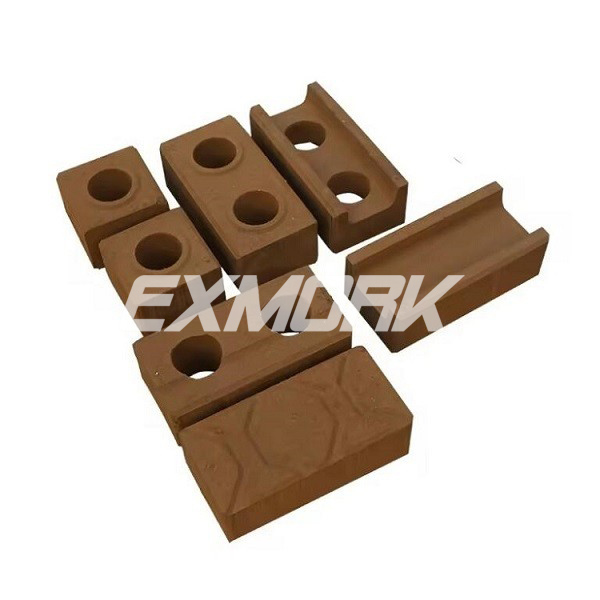

4. EX2-40 can produce different kinds of clay interlocking bricks by changing the mould. For example, U shape brick, two holes bricks, half brick etc.

5. Bricks are interlocking so there is no need for mortar when building.

6. It is quick in product forming, high in product density and strong in pressing power. After remolding, people can stand on the brick .Consumption of materials can be reduced.
Main technical paramete

Dimension

600x400x800mm

Weight

130Kg

Shaping cycle

20~35s

Pressure

16Mpa

Host machine power

Hand press

Mixer model

JQ350

Capacity

960Pcs/8 hours

Maximum block size

300x150x100mm or larger

Pieces/Mould

1

Voltage

no need
