ETTB Torque Meter

Mikrometry Instrument Limited is a measuring instruments manufacturing company and manufacturer of digital height gauge, force and torque measurement products, portable hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic, packaging, food, and many other industries. We also offer optimized solutions for special requirements.

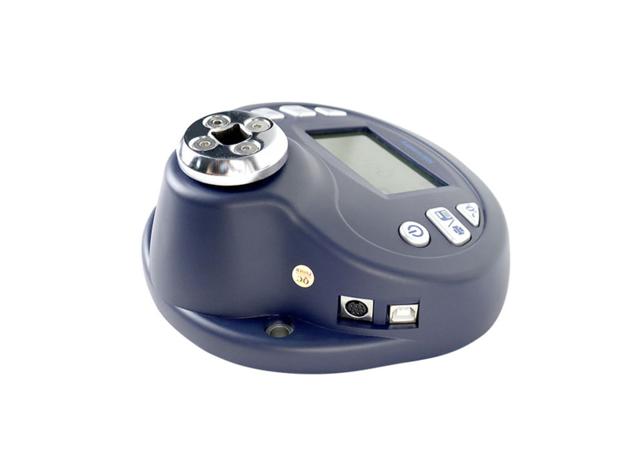

The series ETTB digital torque tester is a simple operation test instrument, the torque tool tester provides testing manual, electric, and pneumatic torque screwdriver tester, wrenches, breakaway torque test and other tools.

Feature Of ETTB Torque Meter
Curve or digital display modes
Reverse display setting
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Accuracy: ¯ 0.3% Readings
Sampling Rate: up to 2KHz

Specifications Of ETTB Torque Meter
Range 5%~100% Capacity
Accuracy ¯ 0.3% Readings
Selectable Units N.m、N.cm、kgf.cm、lbf.ft、lbf.in
Display 240*160 dot matrix LCD(3.1 inch) with LED Backlight
Overload Capacity 120% of F.S.
Measurement Mode Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak
Display Mode Digital / Curve
Data Sampling Rate Up to 2KHz
Memory 1000 data
SetPoint Programmable high and low limits
Battery Indicator The display flashes the battery icon when the battery is low
Power 3.6VDC 1600mAH Ni-Mh rechargeable batteries
Battery Life Approx. 25 hours per charge
Charger / Adaptor Universal USB/BM charger, Input:110~240VAC
Temperature Effects <0.03% FS per ®C
Communication USB or RS-232
Software Free software for USB communication
Outputs RS-232, "Within" set point output， "Under or over" set point output
Operating environment Temperature: -10 to 40®C
Relative Humidity:  20 to 80%
Storage environment Temperature:  -20 to +50®C
Relative Humidity:  5 to 90%
Dimension 197X183X83 mm
Weight ~ 1.6 kg

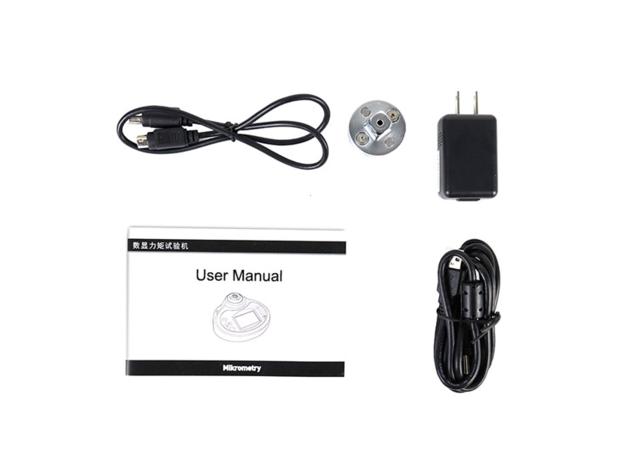

Accessories AC adapter/charger, USB cable, Square drive adapter
Options Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand.

Model Capacity/Resolution
N.m N.cm kgf.cm lbf.ft lbf.in Interface
ETTB2 0.1~2/0.0002 10~200/0.02 1~20/0.002 0.07~1.48/0.0002 0.89~17.7/0.002 ☐ 12.5(1/2"),
☐ 6.3(1/4")
ETTB5 0.25~5/0.005 25~500/0.05 2.5~50/0.005 0.18~3.7/0.0005 2.2~44.3/0.005
ETTB10 0.5~10/0.001 50~1000/0.1 5~100/0.01 0.37~7.4/0.001 4.4~88.5/0.01
ETTB20 1~20/0.002 100~2000/0.2 10~200/0.02 0.7~14.8/0.002 8.9~177/0.02 ☐ 12.5(1/2"),
☐ 10(3/8")
ETTB50 2.5~50/0.005 250~5000/0.5 25~500/0.05 1.8~36.8/0.005 22~443/0.05
ETTB100 5~100/0.01 500~10000/1 50~1000/0.1 3.7~74/0.01 44~885/0.1
