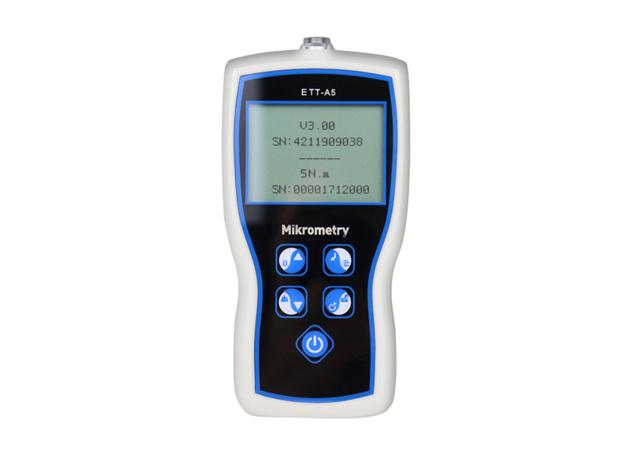

ETTA Advanced Digital Torque Indicator

Mikrometry Instrument Limited is a measuring instruments manufacturing company and manufacturer of digital height gauge, force and torque measurement products, portable hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic, packaging, food, and many other industries. We also offer optimized solutions for special requirements.

Mikrometry digital torque gauge is a designed with our torque senser. This digital torque indicators are main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. The digital measuring instrument can be widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Feature Of ETTA Advanced Digital Torque Indicators
Durable metal case
Automatic reversible display
Touch key for minimized disturbance
Automatic load cell identification
Curve or digital display modes
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Low battery alarm
Accuracy: ¯ 0.3% @Readings
Sampling Rate: up to 2KHz

Specifications Of ETTA Advanced Digital Torque Indicators
Range 5%~100% Capacity
Accuracy ¯ 0.3% @Readings
Selectable Units N.m、N.cm、kgf.cm、lbf.ft、lbf.in
Display 160*128 dot matrix LCD(2.8 inch) with LED Backlight
Overload Capacity 120% F.S.
Measurement Mode Track, Peak, First Peak,Auto Peak, Auto First Peak
Display Mode Digital / Curve
Sampling Rate Up to 2KHz
Memory 1000 data
Set Point Programmable high and low limits
Battery Indicator Display flashes battery icon when battery is low
Power 3.6VDC 800mAH Ni-Mh rechargeable batteries
Battery Life Approx. 14 hours for continuous use
Charger Universal USB/BM charger, Input:110~240VAC
Temperature Effects <0.03% FS per ®C
Communication USB or RS-232
Software Free software for USB communication
Outputs RS-232, "Within" set point output， "Under or over" set point output
Operating environment
Temperature: -10 to 40®C
Relative Humidity:  20 to 80%
Storage environment
Temperature:  -20 to +50®C
Relative Humidity:  5 to 90%
Accessories AC adapter/charger, USB cable
Options Mini-printer, Measuring Adapters, RS-232 Cable, EST-TT2 Torque Test Stand

Model Capacity/ Resolution
N.m N.cm kgf.cm lbf.ft lbf.in Drill Chuck
ETTA1 1/0.0001 100/0.01 10/0.001 - 8.85/0.001 1~10 mm
ETTA5 5/0.0005 500/0.05 50/0.005 3.69/0.0005 44.3/0.005
ETTA10 10/0.001 1000/0.1 100/0.01 7.38/0.001 88.5/0.01 2~13 mm
