ETIPD Leeb Hardness Testing

Mikrometry Instrument Limited is a measuring instruments manufacturing company and manufacturer of digital height gauge, force and torque measurement products, portable hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic, packaging, food, and many other industries. We also offer optimized solutions for special requirements.

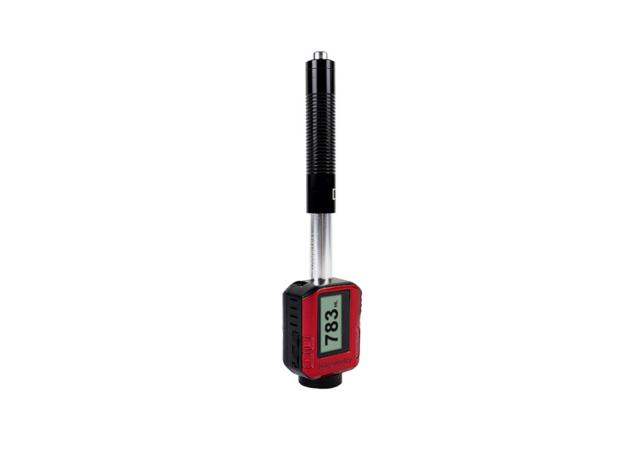

Mikrometry hardness tester ETIPD is a kind of portable measuring tool; the leeb tester can be quick, nondestructive, and high accuracy when measuring common metal materials hardness. It can be used in the laboratory, as well as the on-site engineering field. The leeb hardness tester is indispensable for material nondestructive hardness testing. Our leeb hardness tester price is very reasonable and affordable as well.

Feature Of ETIPD Leeb Hardness Testing
Self-contained (Impact Device D integrated): no cables.
Integrated impact direction sensor.
Highly accurate (¯4HL) in any impact direction (360®) – automatically.
Integrated display of results for all common hardness scales.
Large, high contrast LCD for optimum viewing in all conditions.
Easy calibration.
Full USB communication with PC, software included free of charge.
The internal storage of data with day and time.
Battery: Rechargeable Li-ion, charges through the USB port.
Intelligent sleep mode.
Standards and Guidelines applied: DIN 50156 (2007), DGZfP Guideline MC 1 (2008), VDI / VDE Guideline 2616 Paper 1 (2002), ISO 18625 (2003), ASTM A956 (2006), GB/T 17394 (1998), JB/T 9378 (2001), JJG 747 (1999), CNAL T0299 (2008), JIS B7731 (2000).
Printer: Wireless (Bluetooth) mini printer. 4

Specification Of ETIPD Leeb Hardness Testing
Accurate ¯4 HLD
Units HRC、HRB、HB、HV、HSD
Display 128*64 dot matrix LCD(1 inch) with backlight
Memory 500 data
Testing Direction Automatic identification, no wiring required
Data Transmission USB
Power Built-in 110 mAh Li-ion Battery
Operating Environment Temperature：-10~+40℃
Humidity：20%~85%
Storage Environment Temperature：-30~+80℃
Humidity：5%~95%
Dimension 147* 35*22 mm
Weight 100g

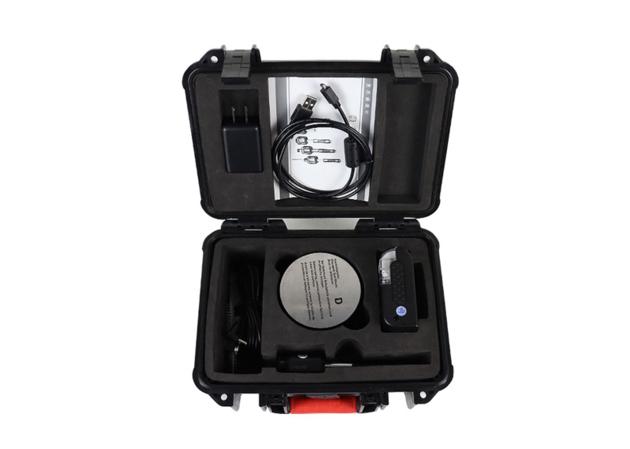

Accessories Hardness Tester, Test Block, Mini printer, Charger, USB Cable, Printer Charger Cable, Litter Support Ring, Cleaning Brush, Suitcase
Standard GB/T17394、GB/T1172、ASTM A956 & DIN 50156
