Drone UAV RC Jammer 525W 6 bands up to 8km

CT-6067-UAV Drone 6 Band 525W Portable Jammer up to 8000m

Porteble Multi-purpose Extreme powerful Commercial Drones UAV flight killer

Max 525W 6 Bands - 5.8GHz, 2.4GHz, 433MHz, 868Mhz GPS L1, L2 / Glonass L1 L2

Frequency/antennas specification 6 bands :
1. RC 433MHz 100W
2. RC 868-928MHz 100W
3. RC 2400-2500MHz WiFi 100W
4. GPS L1 1575.42 +Gloanss L1+GALILEO E1=1575.42+BeiDou B1 Freq (1559.052~1591.788Mhz) 1570-1620MHz 100W
5. GPS L2 1227.60+Glonass L2+BeiDou B3 Freq (1250.618~1286.423Mhz)+GALILEO E6=1278.75 1220-1290MHz 100W
6. RC 5.7GHz-5.9GHz 5.8GHz 20-25W
TOTAL: 525W

Jamming range:
Omni Antenna : 360 degree 1000-4000 meters+ - we recommend use of Omni Antennas with this model

HGA Antennas : 90 degree 3000 to 8000 meters +
Total 6 bands in 2 HGA Antennas, use 2pcs HGA Antennas 3 bands antennas
HGA Antennas block only 90 degree, so make sure you know which way UAV coming.
To cover 360 degree will need 4 units or some customized make rotating platform

Military Omni Vehicles Antennas Option: 360 degree 2000 to 6000 meters+

Distance will be varied depending on the signal strength, antennas and location.
Cover All 100% Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Stand-alone modular design and individual power control
Adjustable Output Power each Band/Channel
VSWR over protection for each modular
Working status indicator for each band modular
Power Supply:AC adapter (AC 220V-DC 27V or 24V/45 Amp) or External Battery
Dimension：626 mm(L)×492mm(W)× 350mm(H)
Weight：45 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃ ~ +60℃ Humidity: 5% ~ 90%

Package contents:

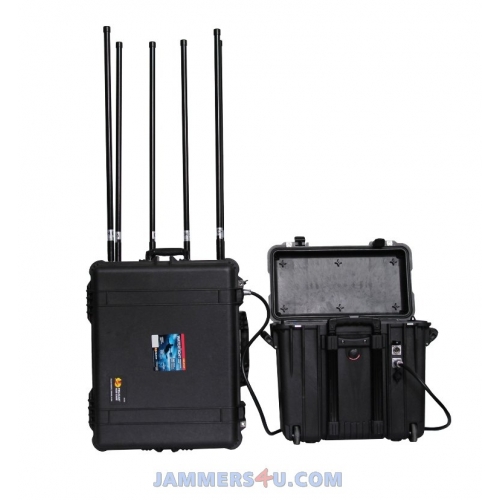

1 pc main jammer

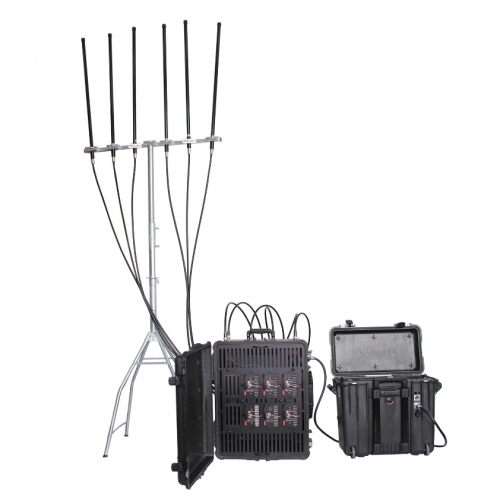

6 pcs Omni antennas 750mm long
1 pcs Omni Antennas frame and cables 2-3m long
2 pcs HGA Antennas
1 pcs AC Adapter (AC 220V-DC 27V or 24V/45 Amp)
1 pc Wireless RC that works on AC Adapter
(- Wireless RC will not works when device use battery)
(- Tripod is not included in our prices)
Additional antenna options:

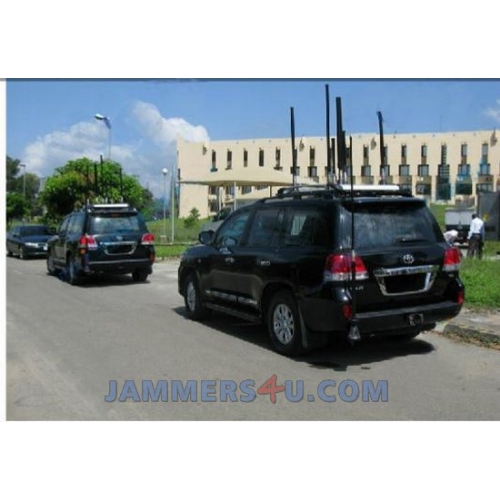

Military type antennas with vehicle frame

External Battery in order option:
B-50AH 27V/50AH LiFePo4 Battery
Pelican Case 1440, 35kg Weight. Work 1-2 hours



1 Year warranty, Neutral packing, OEM Manufacturer :
R&R GROUP INTERNATIONAL
