DMR High End IP68 Walkie Talkie 5W UHF VHF Professional 2 Way Radio BF-TD930
scroll left
  • DMR High End IP68 Walkie Talkie
  • DMR High End IP68 Walkie Talkie
  • DMR High End IP68 Walkie Talkie
  • DMR High End IP68 Walkie Talkie
  • DMR High End IP68 Walkie Talkie
  • DMR High End IP68 Walkie Talkie
scroll right

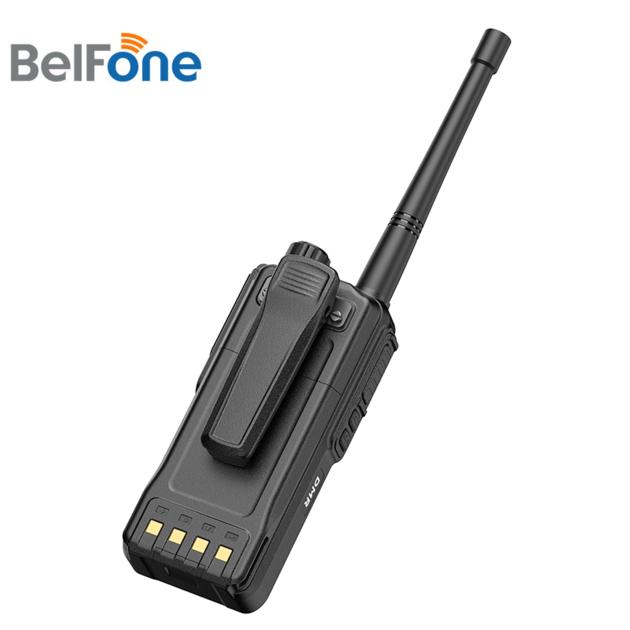

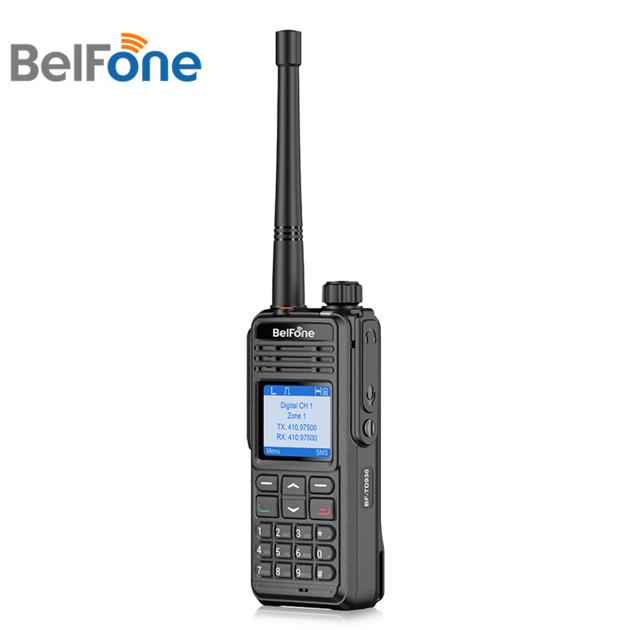

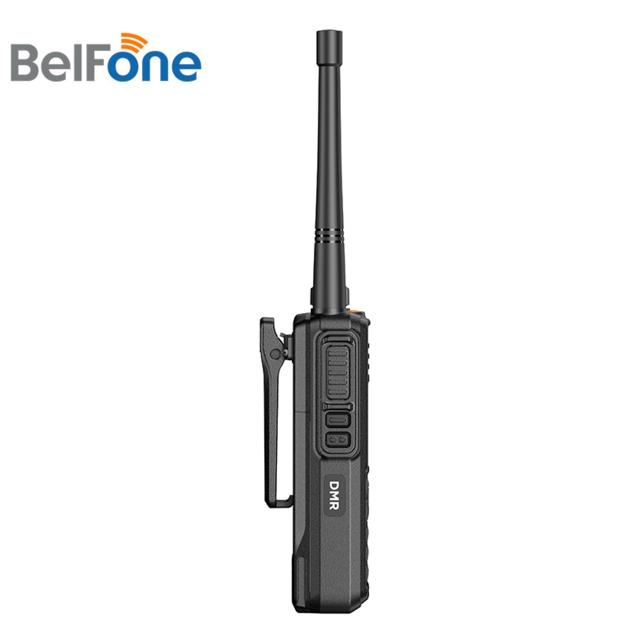

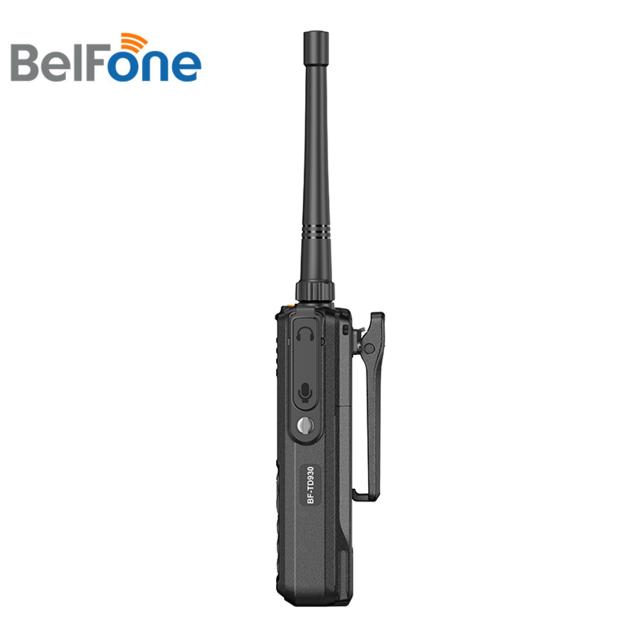

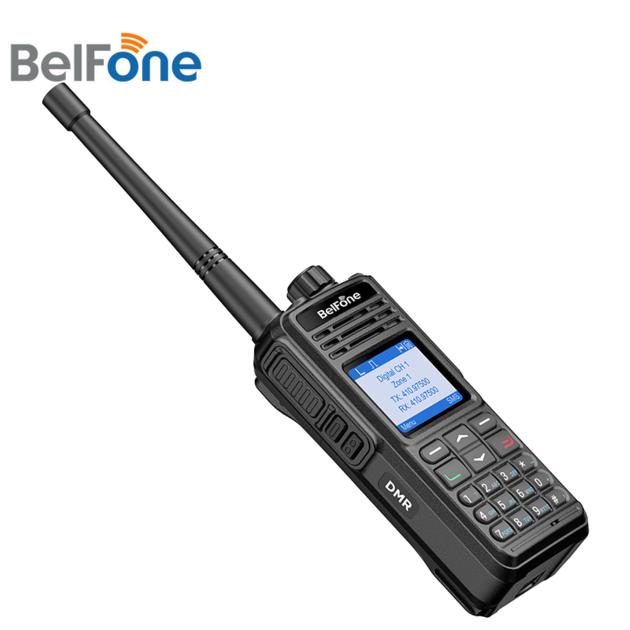

DMR High End IP68 Walkie Talkie 5W UHF VHF Professional 2 Way Radio BF-TD930

Price: US$ 288 / Piece
Minimum Order: 5
Payment Terms: T/T
Port of Export: Xiamen
Product Details
Model No.: BF-TD930 Brand Name: BelFone
Certification: FCC, CE
Specification: General
Frequency Range VHF:136-174MHz
UHF: 350-390 MHz /400-480 MHz/450-520 MHZ
Channel Capacity 1024
Zones 128
Channel Spacing 12.5KHz/25KHz
Operating Voltage DC 7.4V (¯20%)
Frequency Stability ¯0.5ppm
Antenna Impedance 50Ω
DimensIons 56(L)*33(w)"129(H)mm
Weight 315g (including battery pack)
Battery Capacity Real 2000mAh (Li-pol battery)
Average Battery Life(5/5/90) Digital: 18 hours Analog: 14 hours
Transmitter
Power Output H:5W L:1W
4FSK Modulation 12.5KHz (data only):7K60FXD
12.5KHz (data and voice):7K60FXE
FM Modulation 12.5 KHz:8K50F3E; 25 KHz:16K ΦF3E
Modulation Limitation +/-2.5KHz 12.5KHz
+/-5KHz 25KHz
FM Noise -40dB
Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power ≤-60dB
Frequency Response +1/-3 dB
Audio Distortion <3%<>
Vocoder AMBE+2TM
Receiver
Digital Sensitivity 5% BER.0.25uV
Analog sensitivity 0.25 uV(12 dB SINAD)
Intermodulation 65dB
Adjacent Channel Selectivity 60 dB 12.5KHZ/70dB 25KHZ
Spurious Response Rejection 70 dB 12.5KHZ/70dB 25KHZ
Blocking 84dB
Frequency Response +1/-3 dB
Audio Power 1W
Audio Distortion ≤3% (typical)
Conducted Radiation -57dBm
Environmental Specifications
Working Temperature -20ºC-+60ºC
Storage Temperature -30ºC-+85ºC
Dust& Water Proof IP68
Packaging & Delivery
Packaging: Standard Carton Box Packaging
Delivery/Lead Time: 15 Days
Production Capacity: 100000 Pieces/Month
Product Description
BF-TD930 is a high-end digital two-way radio which incorporates such advanced features as Full Duplex Calls, Pseudo Trunk, IP68 Protection, ARC4& AES256 Encryptions, GPS Positioning, Ad Hoc. Ad Hoc enables BF-TD930 to quickly create a network that can be flexibly deployed. Moreover, the built-in Mandown, Lone Worker and Emergency Alert will keep the user safe and sound. This safe and versatile radio is designed to benefit users from fields ranging from public security to emergency response.

DMR TIER 3 Trunking
The Radio Terminal can access BelFone DMR Trunking system

SDC (Optional)
The Radio Terminal can access BelFone Smart IP multi-site connect system

DMO Pseudo Trunk
The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

Handheld/ SFR Dual Modes
BF-TD930 can also function as a single frequency repeater, allocating one timeslot to receive and the other to transmit at the same frequency and using DMO mode to further extend radio coverage. One single device serves two purposes.

Advanced Encryption
The RAC4& AES256 encryption technology keeps your communications safe and private, optimizing your information safety.

Full Duplex Calls
BF-TD930 incorporates full-duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency.

GPS Positioning
With better accuracy and precision, the built-in GPS enables the commander to locate and track his team members. This contributes a lot to personnel management and also promotes command and dispatch work as it equips the commander with clear location awareness.

IP68 Protection
IP68 certified BF-TD930 is a tough radio designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about

Automatic Roaming
BF-TD930 automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications

AD HOC network (optional)
Without the aid of repeaters, BF-TD930 can speedily establish a portable ad hoc network which is self-adapting and dynamic with as many BF-TD930 nodes as may be needed and which supports versatile network topologies. BF-TD930 networking is highly flexible as well as reliable.
DMR High End IP68 Walkie Talkie 5W UHF VHF Professional 2 Way Radio BF-TD930
DMR High End IP68 Walkie Talkie
DMR High End IP68 Walkie Talkie
DMR High End IP68 Walkie Talkie
DMR High End IP68 Walkie Talkie
DMR High End IP68 Walkie Talkie
