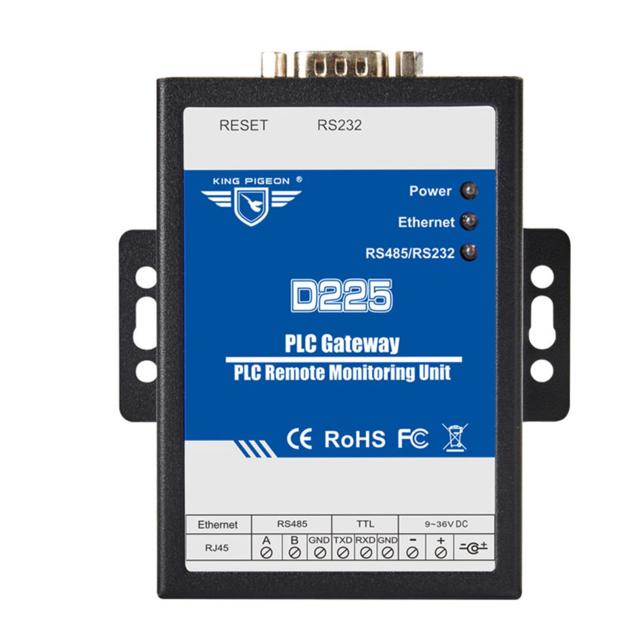

D225 PLC Protocol Converter Remote Monitoring Unit
| Price: | US$ 100 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Wester Union, T/T, Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | D225 | Brand Name: | King Pigeon |
|---|
| Certification: | CE |
|---|---|

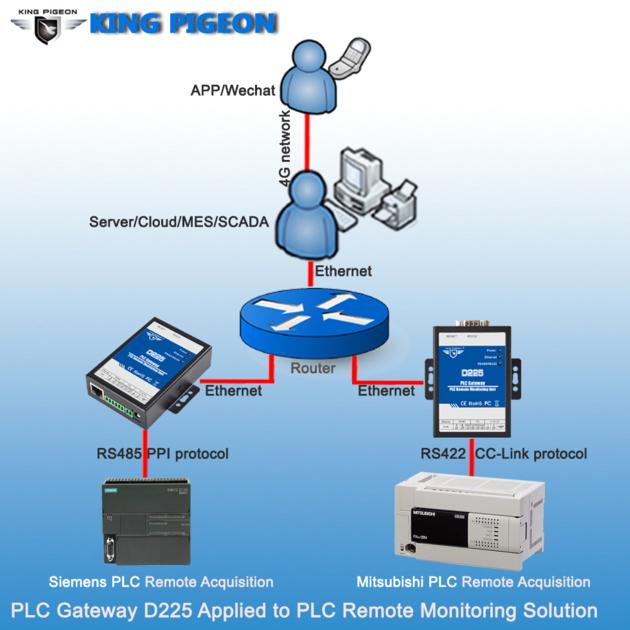

| Specification: | The PLC Gateway D225 is a converter for converting the data protocol of Mitsubishi PLC into Modbus TCP RTU protocol. The D225 can store the I/O data of the PLC to the gateway through the RS-232 or RS-485 serial port of Mitsubishi PLC. The gateway transmits the data to the cloud platform through the Modbus protocol, and also allows your software to pass through the local area network anywhere. Or Internet access to serial port devices. |
Packaging & Delivery
| Packaging: | Box |
|---|---|
| Delivery/Lead Time: | wthin 7 working days |
| Production Capacity: | 50000 per month |
Product Description
1.Built-in industrial grade ARM CortexTM core, high performance, low power consumption, stable and reliable.
2.Converting the data protocol of Mitsubishi PLC into Modbus
TCP protocol,then connect to cloud. Support 1 channel RS-232, 1 channel RS-485 and 1
channel TTL.
3.Support 1 channel RJ45 Ethernet port
4.Support RESET button to restore factory function (long press for 3 seconds to recover) to prevent parameter setting error.
5.Using metal shell material, protection grade IP30, metal shell and system safety isolation, especially suitable for industrial control applications.
6.Using configuration software to set device parameters, support WIN XP, WIN 7, WIN 8 and WIN 10, friendly interface.
7.Support static IP address or DHCP to obtain IP address automatically, and query the devices in the network through UDP broadcast protocol.
8.Support local HMI touch screen and remote simultaneous access to PLC for data acquisition and monitoring.
9.Support server domain name resolution. Support firmware upgrade through TTL, firmware update is more convenient.
|
