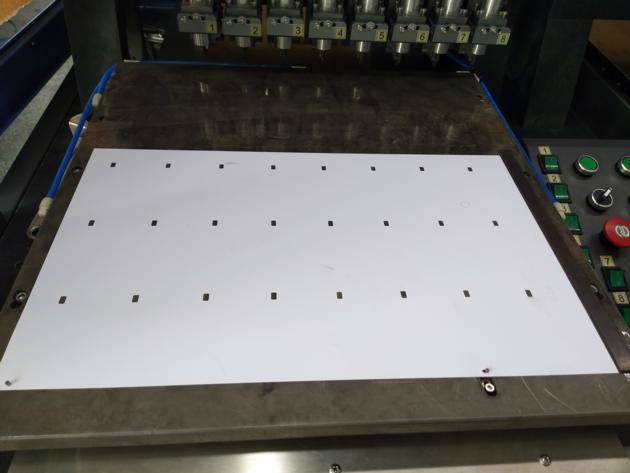

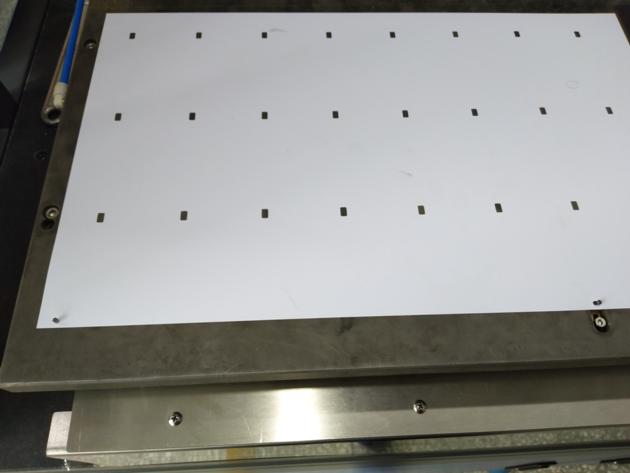

Contactless Card INLAY Sheet Hole Puncher YHP-A
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | TT,Western Union, Paybal,Etc. |
| Port of Export: | Shenzhen Port |
Product Details
| Model No.: | YHP-A | Brand Name: | YL |
|---|
| Certification: | |
|---|---|

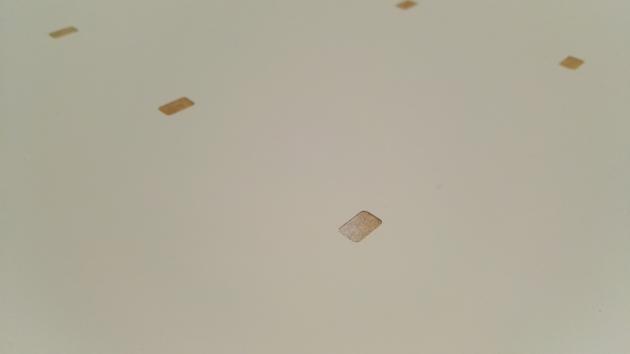

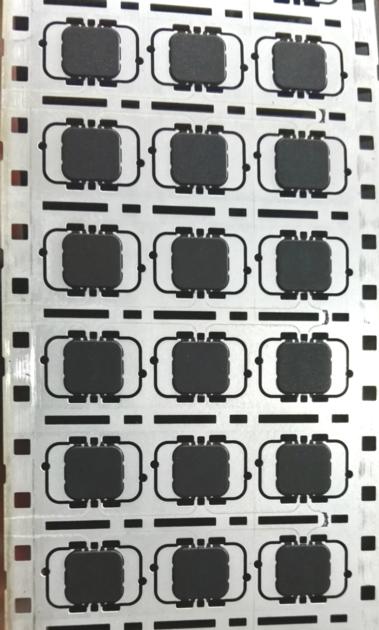

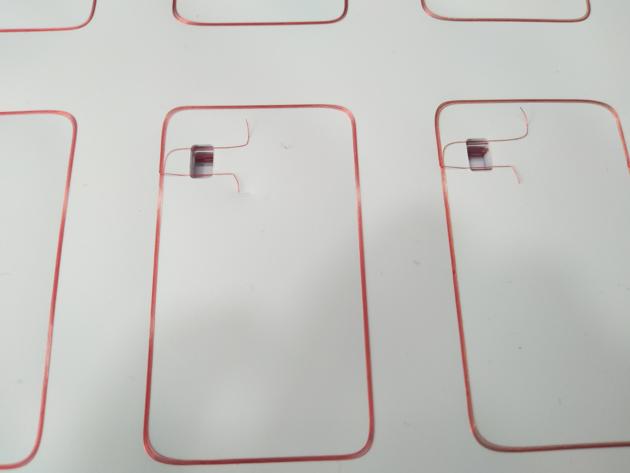

| Specification: | Contactless Card INLAY Sheet Hole Puncher YHP-A is designed to punch chip fixing holes for installing built-in module in the process of contactless card INLAY sheet production. The position of chip fixing holes are adjustable in a certain range by adjusting each punching mould positions. It has two sets of punching moulds, one is for standard big chip (COB chips, MOA2, MOA4), and another is for smaller chip (MOA8 chips). |
Packaging & Delivery
| Packaging: | Strong plywood package with proper soft protection material inside,suitable for long distance for se |
|---|---|
| Delivery/Lead Time: | 20-35 DAYS |
| Production Capacity: | 12 sets per month |
Product Description
Technical parameters
Applicable layout: 3×8, 4×8, 5×5
Applicable material (carrier) : Plastic materials like PVC, ABS and PETG
Number of die head: 3, 4, 5 or 8
Compressed air:5kg/cm2, 50L/min
cutting speed (max.): 300-400 sheets per hour
Power supply :AC220V, 50/60HZ
Position precision: 0.1mm
Power:1kW
Weight: around 250 kg
Dimension:L1350×W700×H1550
|
