Contactless Card Antenna Embedding Machine YAE-210

 Feature Description

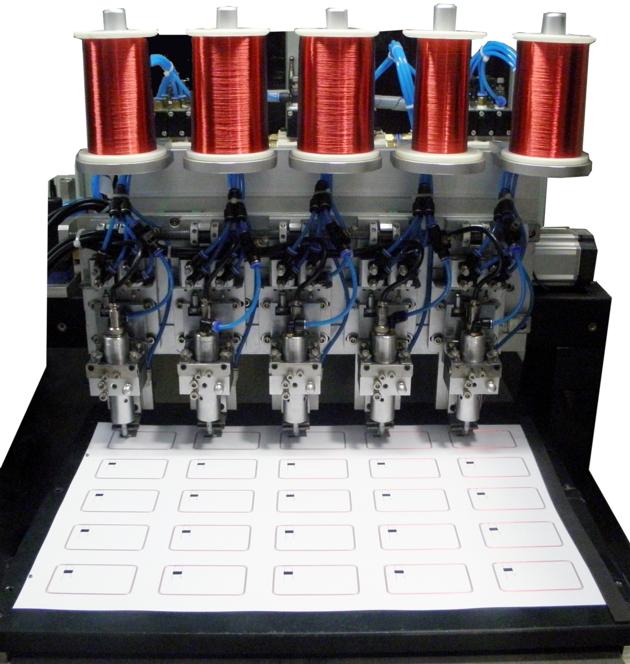

This machine is designed for embedding or implanting the copper wire onto INLAY middle sheets as per the designed track with advanced ultrasonic technology.
 It is well known as the most reliable and economical machines in INLAY sheet production.
 Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.
 The antenna shape and size can be easily designed in AUTOCAD software.
 The special worktable design is available to ensure that various sheet layout (3×8/4×8/5×5) can be embedded in the same machine.

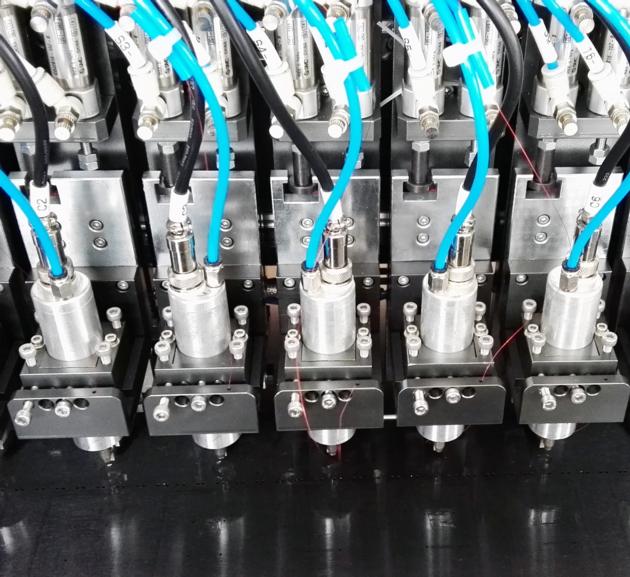

 The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.
 Technical Parameters
1. Speed: 3000-3200 pcs per hour.

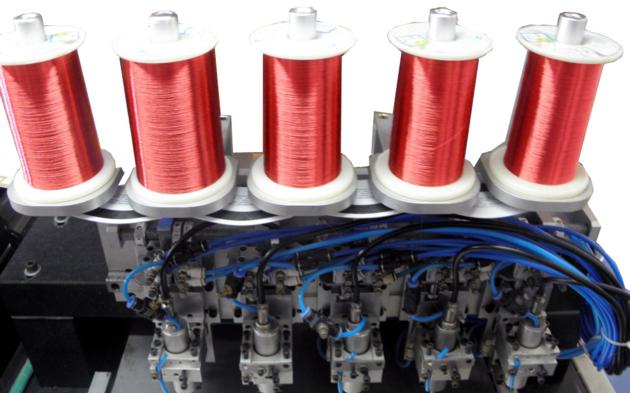

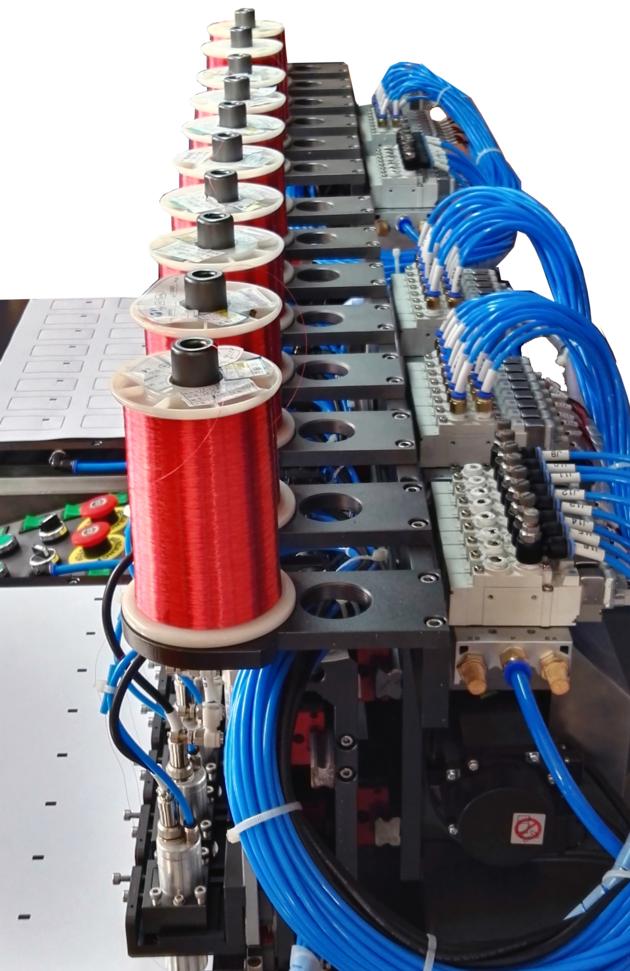

2. Embedding head number: 10 heads
3. Worktable number: 2 worktables
4. Dimension: L1750×W1150×H1600mm
5. Weight: 1500 KG
6. Power supply: AC220V 50/60HZ 25A
7. Power: 3.5KW
8. Compressed air: 6 kg/cm2
9. Air Consumption: 120 L/min.
10. Control mode: MOXA motion contorl+Mitsubishi servo
11. Precision: servo step indexing=0.0125
12. Mechanical adjustment precision: 0.01mm.
