Collaborative Palletizing station
| Price: | US$ 9000 |
|---|---|
| Minimum Order: | 1piece |
| Payment Terms: | 100% pre-paid. |
| Port of Export: | shenzhen |
Product Details
| Model No.: | 00111 | Brand Name: | Mitsubishi WEINVIEW |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Ø Payload: up to 20 kg
Ø Capacity: up to 8 CPM when load 20KG Ø Item size:forming carton box (W×L×H) from 140×210×110 mm to 290×530×370 mm Ø Pallet sizes: EUR, INDU, US, JPN and AUS ＜ 1230*1230mm Ø Pallet height, up to 2.1 m |
Packaging & Delivery
| Packaging: | The packages not have the black and transparency goods |
|---|---|
| Delivery/Lead Time: | 3-4months |
| Production Capacity: | 500/year |
Product Description

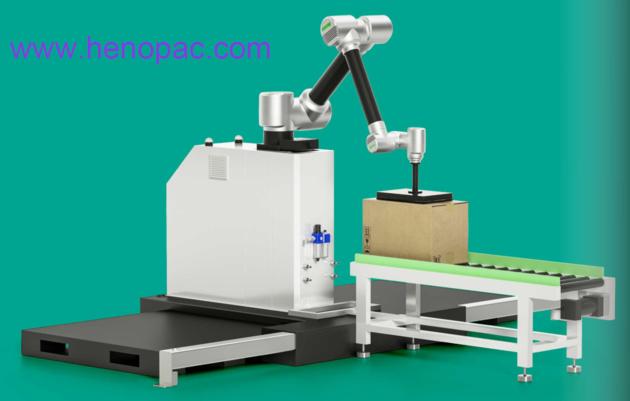

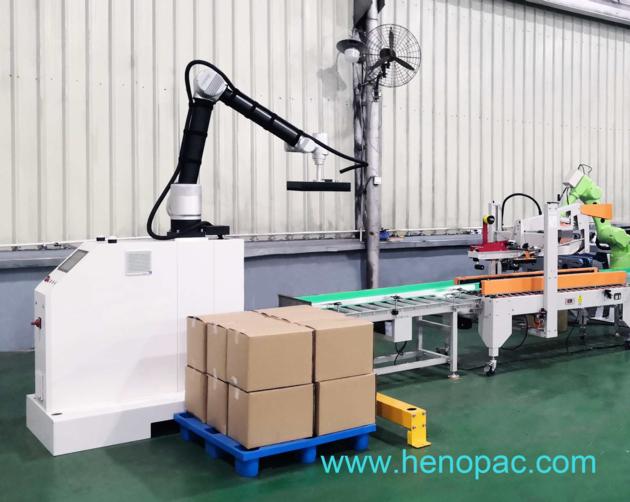

Collaborative palletizing robot station technical parameter
Base style
Fixed base
Lifing base
Max load
20kgs
Machine weight
260kgs
300kgs
Pallet working radius
1600mm
Floor space
L3950*1720mm
Fit fot max pallet size
L1250*W1250mm
voltage
Sinlge phase 200-240V 50/60Hz
power
2.5kw
3.3kw
Palletizing max height
H1650mm
(include pallet height)
H2100mm
(include pallet height)
Range of Motion(ROM)
J1 : ¯360®
J1 : ¯360®
J2 : ¯125®
J2 : ¯125®
J3 : ¯160®
J3 : ¯160®
J4 : ¯180®
J4 : ¯180®
J5 : ¯360®
J5 : ¯360®
J6 : ¯360®
J6 : ¯360®
Motion max speed
J1/J2/J3: 148®/s
J4/J5/J6: 186®/s
Positioning accuracy
¯0.04mm
Communication Type
Modbus-TCP,EtherCAT,CAN,RS232/485
IP Class
IP54
Temperature Range
0-55º
Main material
Aluminum alloy, Carbon fiber
Easy to control
The KEBA control system focuses on usability and intuitiveness. The operator is in full control of the palletizer – for straightforward, easy installation and configuration.
The drag and drop pallet manager also allows the operator to change and configure new pallet patterns in minutes.
Simply flexible
Thanks to a non-bolted installation, the robot palletizer meets the growing demand for flexibility in production. With its compact and modular design, a quick move can be made within a production facility for seasonal production changes or customized batches.
Ø NO SAFETY FENCES：Open, safe, guard-less layout without sacrificing speed
Ø CUSTOM EOAT：Compatible with Cases, Trays, Bags and more
Ø IMMEDIATE CONTACT STOP：Safely working side-by-side with humans
Ø DUAL PALLET & SLIP/TIER SHEET STATIONS
Ø Allow for uninterrupted operation
Ø minimal footprint
Ø Touchscreen HMI with easy to use interface and E-stop button

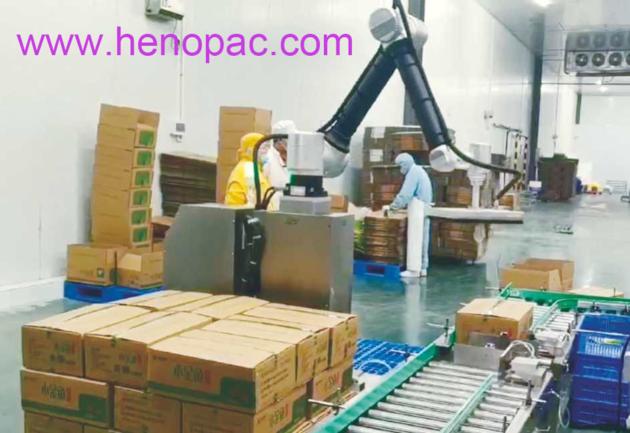

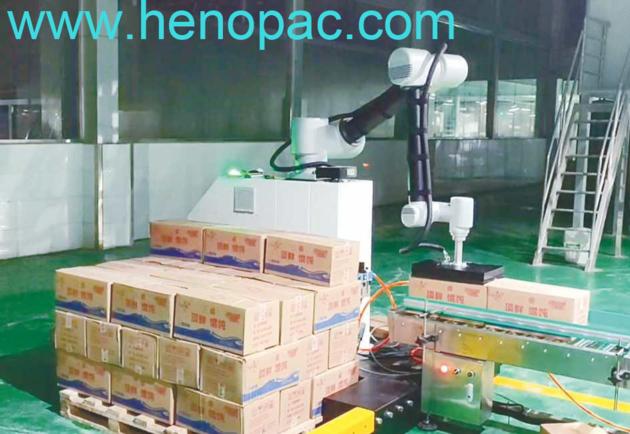

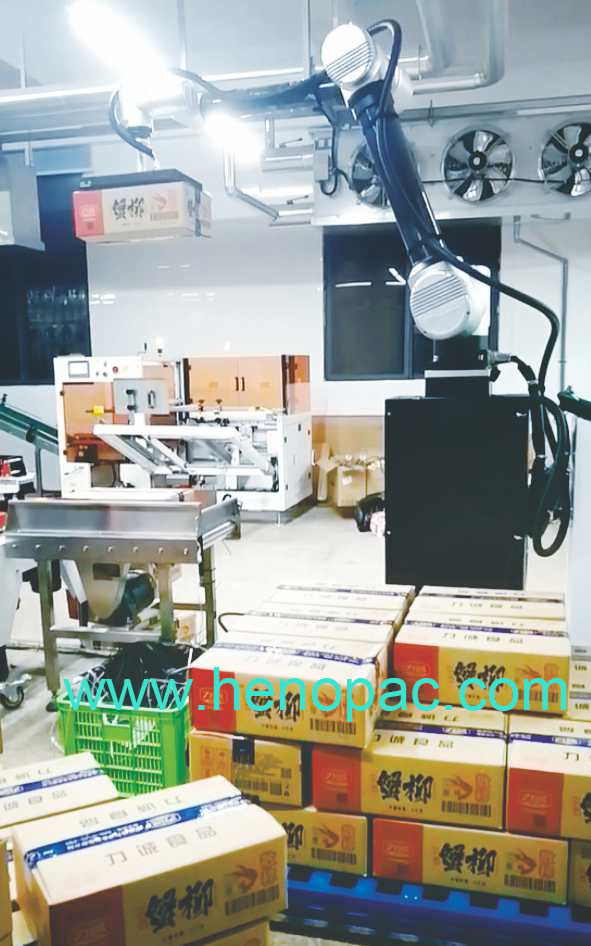

HENO packaging collaborative robot widely used in 3C , automobile, glass manufacturing, food processing, metal
processing, rubber and plastic industry ,covering fields of handling and palletizing, laser processing,loading and unloading, welding, cutting, grinding and polishing, gluing,assembly and labeling. this is the palletizing application.
|
