Cessnock ball rail stanchions

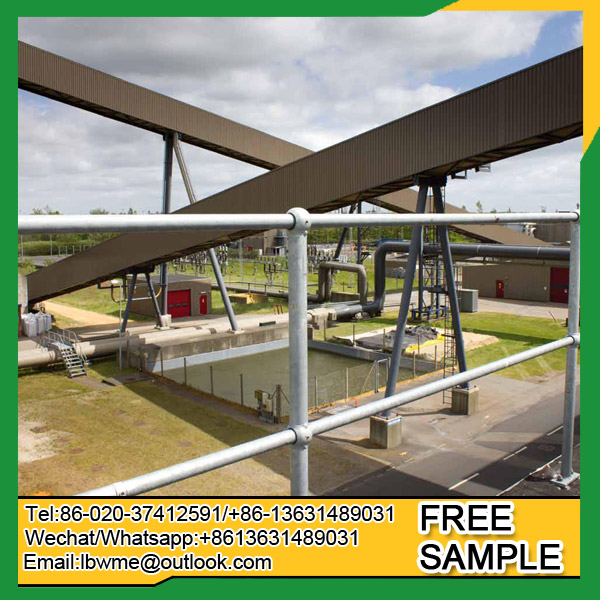

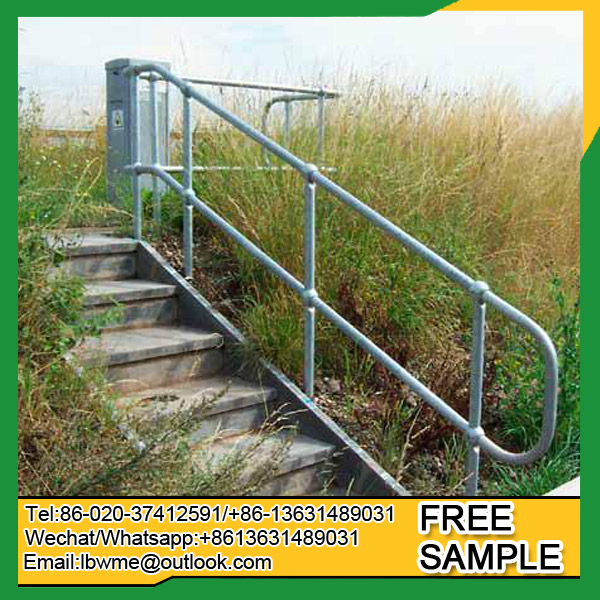

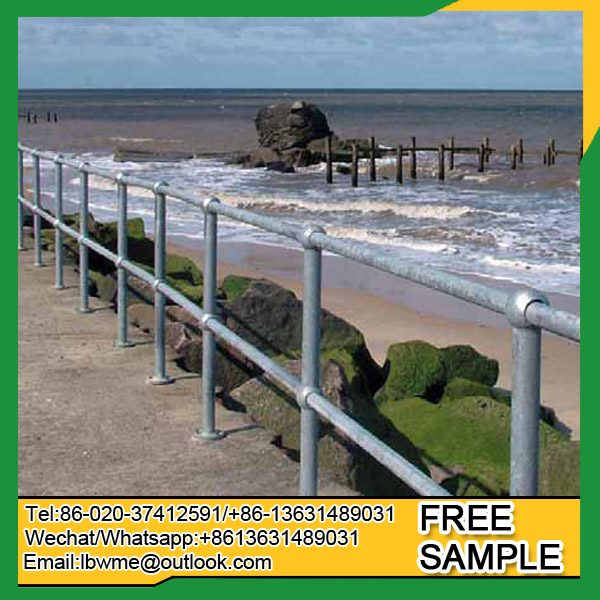

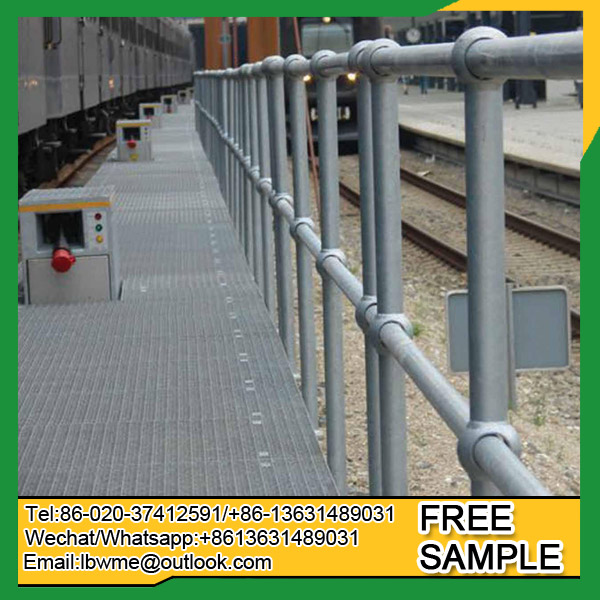

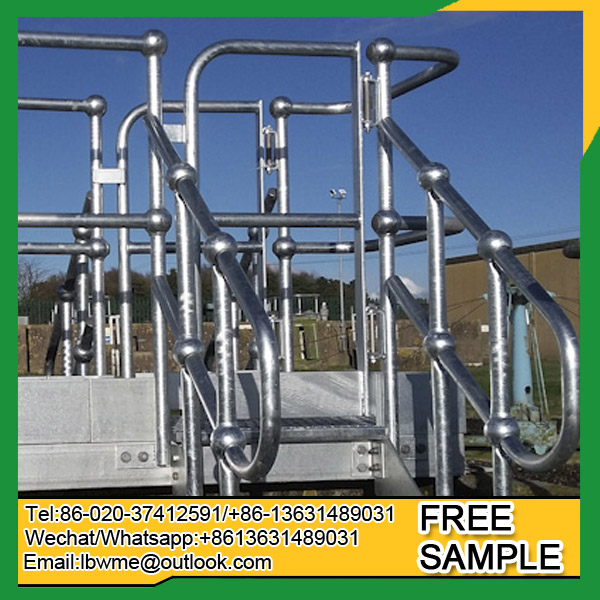

Ball Tube Handrail has advantages such as attractive appearance, convenient installation, robustness, and good anti-corrosive property after hot dip galvanizing. It is widely used in such industrial and construction engineering fields as electric power, petrochemicals, machinery, sewage treatment plant, waterworks, gardens, municipal roads, airports and wharfs.

Horizontal Closure Bends
Standard Pipe
Steel Handrail: 32NB med / 32 SCH10
Steel Kneerail: 32NB med / 25 SCH10
Standard radius: 140mm centre line
Alum: 46 O.D. x 3.2mm

Angle Closure Bends
Standard Pipe
Steel Handrail: 32NB med / 32 SCH10
Steel Kneerail: 32NB med / 25 SCH10
Standard radius: 140mm centre line
Alum: 46 O.D. x 3.2mm

Standard Pipe: Handrail 32NB / 32 SCH10
Kneerail 25NB / 25 SCH10
Angle : ∠90 - 180
Standard Radius: 140mm centre line
Alum: 46 O.D. x 3.5mm
Standard Leg: 300mm x 300mm

1.Surface Treatment G: G means hot-dip galvanizing, other surface treatment is not marked.
2. Quantity of horizontal pole:1.one horizontal pole; 2. two horizontal poles; 3.three horizontal poles.
3. Form of the post (pillar) :see the form picture for post (pillar).
4. Quantity of the post (pillar): 1. one post; 2. two posts(pillar)
5. Specification: S means standard type; E means economical type.
6. Materials: C = carbon steel; S=stainless steel
7. Rail height: single rail manufactured according to design, double rail is 1.1m, and triple rail is 1.2m.
8. Column spacing: mainly four kinds as 1000mm,1200mm,1500mm,2000mm.
9. Surface treament: hot dipped galvanized, powder coated
10. Standard:
A: UK BS6399&BS6180
B: AU: 1650-1985
C: CN: 4053-83
11. In above table, the data before brackets are sizes of carbon steel; while the data of stainless steel is in the brackets

1. Types of Vertical Railing include P, C, W, S, SC, SO, MB (Multi ball).
2. Types of Inclined Railing include PA, CA, WA, SAL, SAR, AM, SOAL, SOAR.

Style Ball diameter Column pipe diameter Handrails diameter Knee rail pipe diameter
standard 76mm 48.0mm 42.3mm 33.5mm
economy 66mm 42.3mm 33.5mm 26.8mm

Packing: In steel pallet or plastic film or as your request
Deliver: Within 15 days after receive your depsoit
