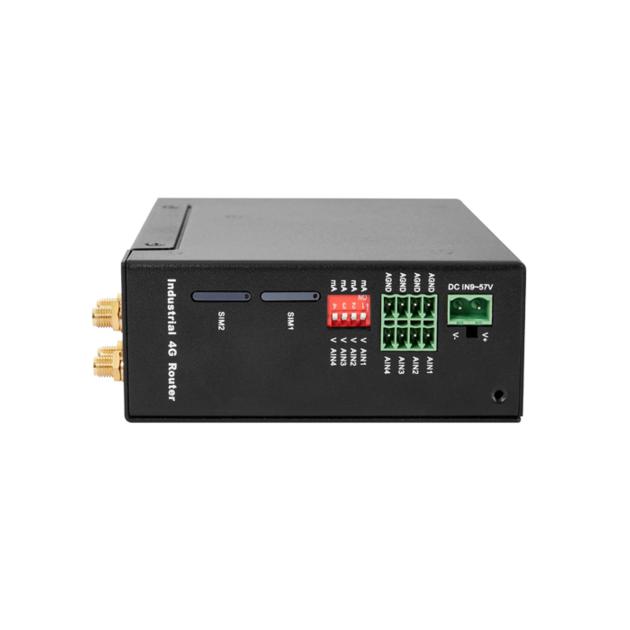

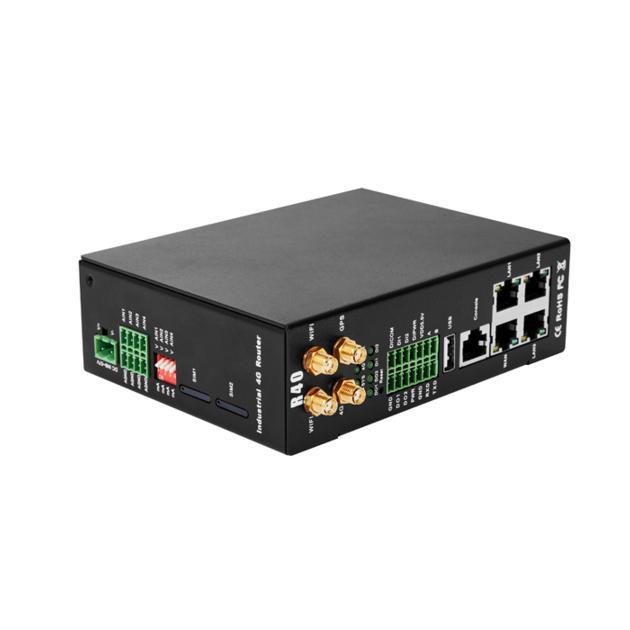

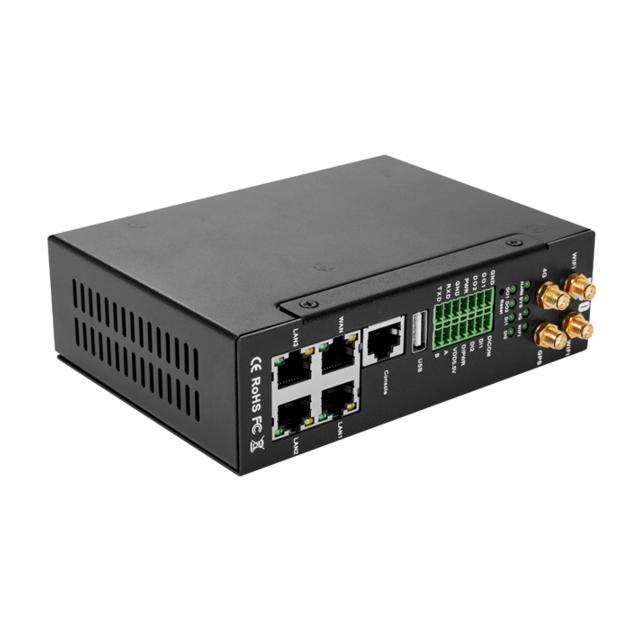

Cellular 4G Lte Industrial IoT Edge Router for Smart City Wireless Video Monitoring

4G Edge router integrates router, RTU and DTU. It can access cameras, instruments, PLC, DI, DO Relay, AI, RS485/232 devices, and realize wireless remote monitoring through 4G/Ethernet. It supports various VPN, dual SIM card, WiFi, wide voltage, etc. Widely used in smart transportation wireless video monitoring, smart street light environment monitoring, outdoor power line monitoring, water conservancy environment monitoring, etc.

●4G, Ethernet WAN, WLAN WAN link switching and ICMP detection;
●Support IPsec/OpenVPN/L2TP and other VPN;
●WiFi support AP and client modes (2.4GHz);
●1 x WAN, 3 x LAN，RJ45 interface type, 10M/100Mbps, self-adaptive MDI/MDIX;
●Equipped with 2DI, 2DO, 4AI;
●1 x RS485,1 x RS232，Support command mode and Transparent transmission mode, easy to expand IO, connect PLC, instrumentation;
●Support MQTT，Modbus RTU，Modbus TCP protocols;
●Support Modbus RTU to Modbus TCP/MQTT；Modbus TCP to MQTT multi-protocol conversion;
●Support TCP client/server, UDP;
●DHCP Server Web upgrade firmware SMS, regular reboot;
●Support POE output power supply, save wiring cost;
●Dual SIM card redundancy design, stable and reliable;
