CT-6067-UAV Drone 6 Band 550W Portable Jammer up to 8km

CT-6067-UAV Drone 6 Band 550W Portable Jammer up to 8km

Porteble Multi-purpose Extreme powerful Commercial Drones UAV flight killer. Max 550W 6 Bands - 5.8GHz, 2.4GHz, 433MHz, 868Mhz GPS L1, L2 / Glonass L1 L2



Frequency/antennas specification 6 bands :
1. RC 433MHz 100W
2. RC 868-928MHz 100W
3. RC 2400-2500MHz WiFi 100W
4. GPS L1 Gloanss L1+GALILEO +BeiDou 1570-1620MHz 100W
5. GPS L2 +L5 Glonass L2+BeiDou +GALILEO 1160-1290MHz 100W
6. RC 5.7GHz-5.9GHz 5.8GHz 50W
TOTAL: 550W

Jamming range:
Omni Antenna : 360 degree 1000-4000 meters+
HGA Antennas : 90 degree 3000 to 8000 meters +

Total 6 bands in 2 HGA Directonal Antennas, one unit use 2pcs HGA Antennas
HGA Antennas block only 90 degree, so make sure you know which way UAV coming.
To cover 360 degree will need 4 units or some customized make rotating platform

Distance always varied depending on the signal strength, antennas and location.
Cover All 100% Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Stand-alone modular design and individual power control
Adjustable Output Power each Band/Channel
VSWR over protection for each modular
Working status indicator for each band modular
Power Supply:AC adapter (AC 220V-DC 27V or 24V/45 Amp) or External Battery
Dimension：626 mm(L)×492mm(W)× 350mm(H)
Weight：45 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃ ~ +60℃ Humidity: 5% ~ 90%

Package contents:
1 pc main jammer ( 45kg 67x52x77cm packing )

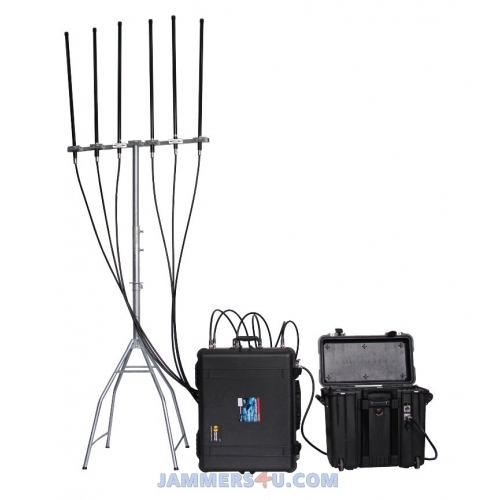

6 pcs Omni antennas 750mm long in packing box ( 16kg 116 x 18 x 47cm )
1 pcs Omni Antennas frame and cables 2-3m long

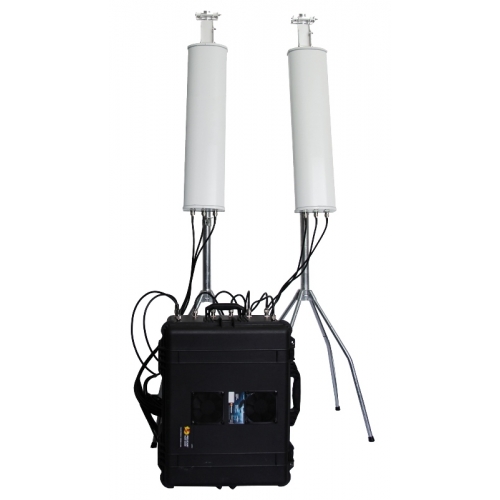

2 pcs HGA Antennas ( 2 x 6kg 40 x 89 x 14cm )
1 pcs AC Adapter (AC 220V-DC 27V or 24V/45 Amp)
1 pc Wireless RC that works on AC Adapter
(- Wireless RC will not works when device use battery)
(- Tripod is not included in our prices)

Additional antenna options:
Military type Vehicles Omni Antennas with vehicle frame 360 degree 2000 to 6000 meters+

External Battery in order option:
B-50AH 27V/50AH LiFePo4 Battery
Pelican Case 1440, 35kg Weight. Work 1-2 hours
Drone UAV RC Jammer 525W 6 bands up to 8km
Click to enlargeDrone UAV RC Jammer 525W 6 bands up to 8km
Click to enlargeDrone UAV RC Jammer 525W 6 bands up to 8km
Click to enlargeDrone UAV RC Jammer 525W 6 bands up to 8km
Click to enlargeDrone UAV RC Jammer 525W 6 bands up to 8km
Click to enlargeDrone UAV RC Jammer 525W 6 bands up to 8km
