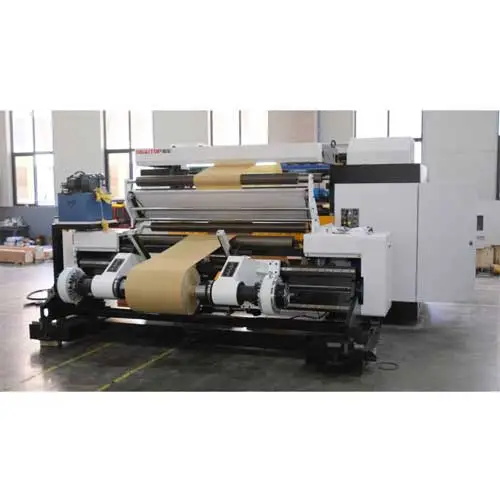

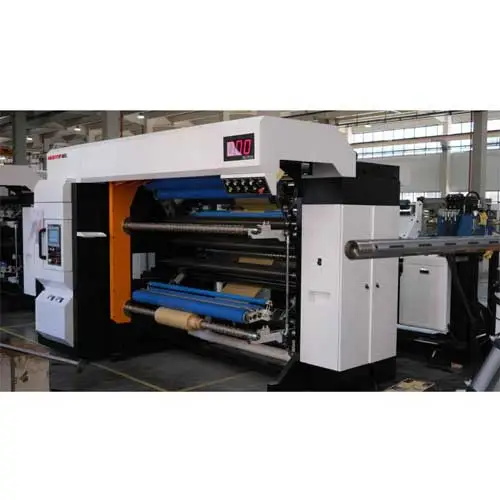

CM 1300/1700 AUTOMATIC HIGH PRECISION SLITTING REWINDING MACHINE

CM 1300/1700 AUTOMATIC HIGH PRECISION SLITTING REWINDING MACHINE
CM-1300/1700 series models are suitable for slitting and rewinding large roll materials, especially for composite paper, film paper, self-adhesive label paper.

Characteristics of CM 1300/1700 Automatic High Precision Slitting Rewinding Machine
This machine adopts PLC control, three servo motor, automatic tension control, central surface crimping, winding surface smooth and tight.

The machine adopts frequency conversion speed regulation to maintain smooth operation during acceleration.

Automatic meter counting, alarm stop and other functions.

The winding structure with double slip difference shaft is adopted to make the unloading tower easy to operate.

Automatic deviation correction system adopts ultrasonic sensor to automatically adjust the unwinding position.

Shear slitting, razor slitting, waste side fan automatic elimination.

Automatic split shaft-less feeding structure.

Automatic unloading device.

SPECIFICATION OF CM 1300/1700 AUTOMATIC HIGH PRECISION SLITTING REWINDING MACHINE
Maximum width of unwinding roll 1300mm
Minimum slitting width 30mm
Maximum Diameter of unwinding 1700mm
Maximum diameter of rewinding 800mm
Max weight of unwinding roll 1500kgs
Slitting speed 10-400m/min
Thickness 12-200micron film
40-200gsm adhesive paper, paper
Wind way Center
Slitting precision ¯0.2 mm
Control motor speed Frequency control
The input power 380V three phase four wire

Applications of CM 1300/1700 Automatic High Precision Slitting Rewinding Machine
This machine is suitable for slitting adhesive stickers, laminated PVC, PET, Release paper, breathable film, pearlized BOPP.

Packaging of CM 1300/1700 Automatic High Precision Slitting Auto Rewinding Machine
Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.

Now the price of automatic paper rewinder is reasonable, anything you need, please contact us.

Gaobao Machinery‘s manufacturing base is in Pingyang County, Wenzhou City, Zhejiang. Gaobao Machinery has a workforce totaling approximately 88 personnel. We have a strong team of mechanical engineers who all work on a modern 3D Cad system and work alongside a team of software / electrical engineers.
