Bluetooth Low Energy USB Dongle Development Kit
| Price: | US$ Contact Seller / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Taiwan |
Product Details
| Model No.: | UDK-CC2540 | Brand Name: | Digimore |
|---|
| Certification: | |
|---|---|
| Specification: |
UDK-CC2540, USB Dongle is a development kit for user to design Bluetooth Low Energy (BLE) application with integrated USB to the system with existing USB host. UDK-CC2540 USB Dongle contains a Bluetooth module BT02-2 using TI Bluetooth low energy controller CC2540. TI CC2540 is a world-leading chip in Bluetooth Low Energy 4.0 and offers variety of peripherals such as USB, UART, SPI and Timer.

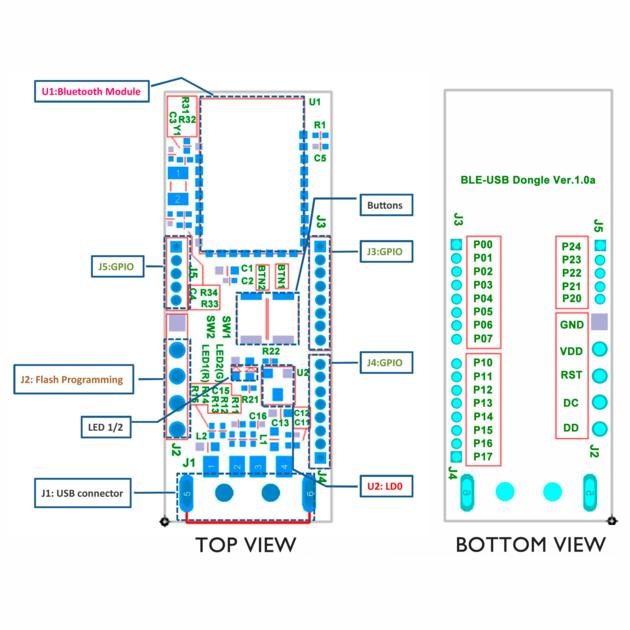

UDK-CC2540 USB Dongle also embeds a High-PSRR 300mA LDO, Buttons and LEDs, and General Purpose I/O Test Points. The Dongle can let user focus on their project development and verify the project easily and rapidly. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 15~20 days |
| Production Capacity: |
Product Description
* BT02-2 Bluetooth Module with TI CC2540
- Bluetooth version 4.0 low energy (LE, single mode) compliant
- High-performance and low-power 8051 Microcontroller core with code prefetch
- In-system-programmable flash, 256KB
- 12-Bit ADC with eight channels and configurable resolution
- 21 general purpose I/O
- Full-Speed USB Interface
- Power USARTs with support for several serial protocols
- On board PCB Antenna and Crystal
- Module dimension: 14.8 x 10mm
* LDO
- Fast Ultra High-PSRR, Low-Noise 300mA CMOS LDO
- 3.3V Output Voltage

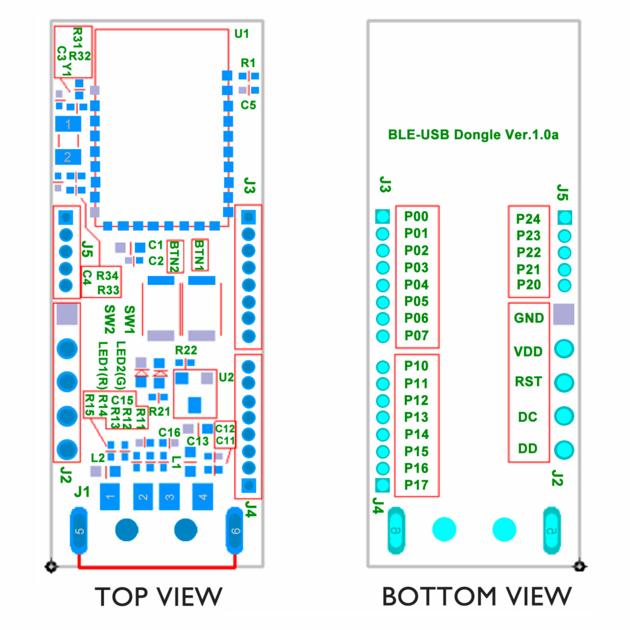

* Variety of Individual Pin Header Sections
- Flash Programming and Debugging
- General Purpose I/O (GPIO)
* Buttons and LEDs
- Input / output function control
* Dongle Dimension: 16mm x 41mm (PCBa) ; 16mm x 56mm (including USB connector)
|
