Big size X-Ray luggage scanner used in metro station, security guide checking 8065

Big size X-Ray luggage scanner used in metro station, security guide checking 8065



General Specifications
Tunnel Size :8000 (W) ×6500 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600
Conveyor rolls in both two directions
X-RAY GENERATOR
Orientation: Upward
Tube Current: 0.4~0.7mA(adjustable)
Anode Voltage: 80KV(adjustable)
Angle: 60®
Generator cooling/working periods:
Sealed oil bath with forced air/100%
Conveyor rolls in both two directions
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (¯10%) 50¯3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector
24bit
Single energy
Image Performance System:
Display: High-resolution 19 inch color LCD display





General Specifications
Tunnel Size :800 (W) ×650 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600
Conveyor rolls in both two directions
X-RAY GENERATOR
Orientation: Upward
Tube Current: 0.4~0.7mA(adjustable)
Anode Voltage: 80KV(adjustable)
Angle: 60®
Generator cooling/working periods:
Sealed oil bath with forced air/100%
Conveyor rolls in both two directions
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing


SHENZHEN HEPING CENTURY TECHNOLOGY CO., LTD （PEACENTURY）is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

Contant us ：
Mob/WhatsApp/Wechat： +86 17820602014
Email：*
*
*

Business Type：Manufacturer& International Trading Company
Location：Shenzhen，China (Mainland)

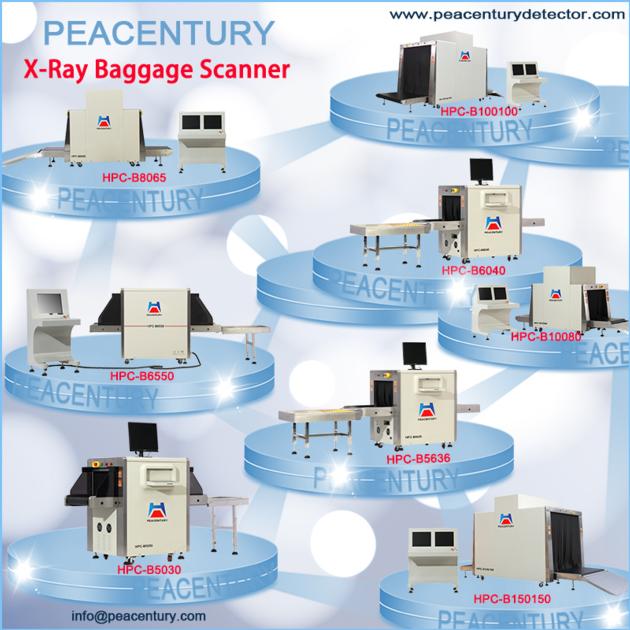

Main Products：Walk Through Metal Detector，X-Ray Baggage Scanner，Hand Held Metal Detector，Under Vehicle Inspection System，Hydraulic Rising Bollard，Hydraulic Road Blocker，Tire Killer，Gold Detector，Barrier Gate etc.
