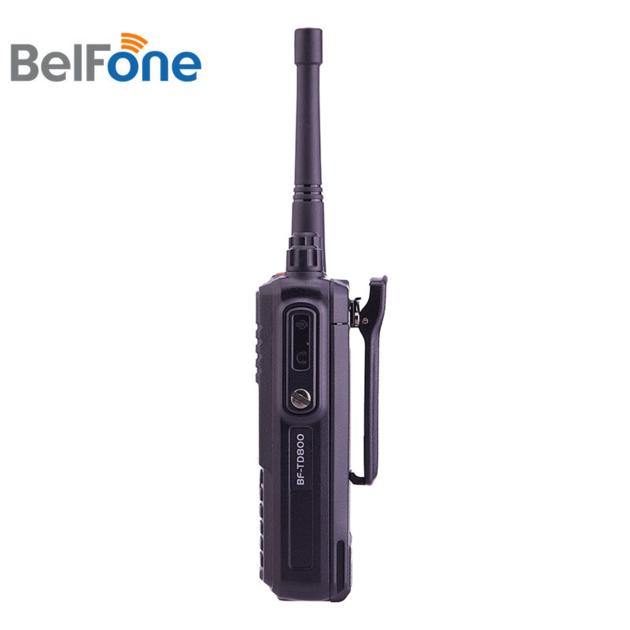

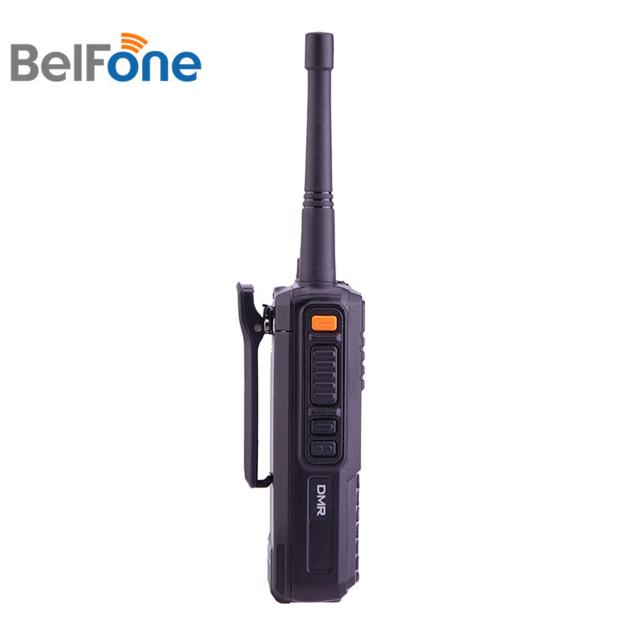

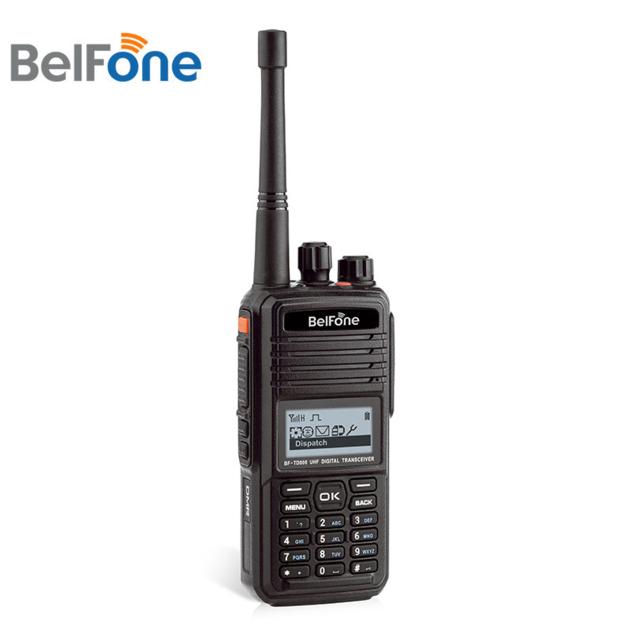

Belfone VHF UHF Digital Portable Two-Way Radio Transceiver (BF-TD800)
| Price: | US$ 213 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen/Xiamen |
Product Details
| Model No.: | BF-TD800 | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General:
Frequency range: VHF:136-174; UHF:350-390/400-470/450-520 MHz Channel Capacity: 38 Channel Spacing: 12.5KHz/25KHz Operating Voltage: DC 7.4V (¯20%) Battery capacity: 2000 mAh Battery Life（5/5/90）: 20 Hours (GPS Off) Frequency Stability: ¯1.5ppm Antenna Impedance: 50Ω Dimensions: 60(L)* 39(W)* 103(H)mm Weight: 291g (include battery) Transmitter: RF Output Power: High Power：5W; Low Power：1W 4FSK Modulation: 12.5kHz only data：7K60FXD; 12.5kHz data and audio：7K60FXE FM Modulation: 12.5 kHz：8K50F3E； Modulation Limiting: ¯2.5kHz @ 12.5kHz; FM Noise: -40dB Conducted Emission: -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power: ≤-60dB Audio Response: +1/-3 dB Audio Distortion: 0.03 Digital Voice coder Type: AMBE+3000 Receiver: Digital Sensitivity: 5% BER：0.25 uV Intermodulation: >60dB Adjacent Channel Selectivity: >60 dB Spurious Response Rejection: >65 dB FM Noise: -40dB Audio Response: +1/-3 dB Audio output power: 500mW Audio Distortion: 3% (Typical) Conducted Spurious Emission: -57dBm GPS Accuracy: Horizontal Accuracy≤-10m（with well signal） TTFF (Time To First Fix) Cold Start: < 1 minute（with well signal） TTFF (Time To First Fix) Hot Start: < 10 seconds （with well signal） Environmental Specifications: Operating Temperature: -20℃—+60℃ Storage Temperature: -30℃—+85℃ Humidity: MIL-STD-810C/D/E/F Standard Vibration & Shock: MIL-STD-810C/D/E/F Standard |
Packaging & Delivery
| Packaging: | Standard Carton Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
DMR TDMA 2 timeslots on a single frequency (12.5KHz Channel Spacing)
In direct mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths on 1 frequency at no extra costs or frequency license. Spectrum efficiency is greatly increased.
Manual Channel Editing
You can add/delete/edit channels on your radios without having to connect to a PC.
Radio Priority-based Interruption
This function enables a radio with a higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.
Remote Kill/Revive
Such functions enable you to kill or revive a radio over the air. This greatly facilitates dispatching work and can be especially useful should a radio happen to be lost. You can easily remote kill the lost radio and confidential information can be kept from leaking out.
Private Call, Group Call & All Call
The versatile calling functions bring more efficiency to your teamwork.
Transmit Interrupt
This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communications.
Compatible with Belfone SDP System
BF-TD800 is fully compatible with our SDP system.
|
