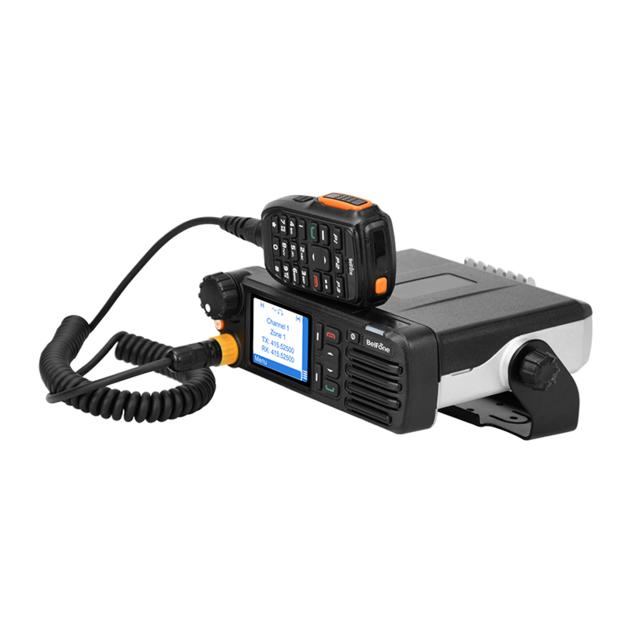

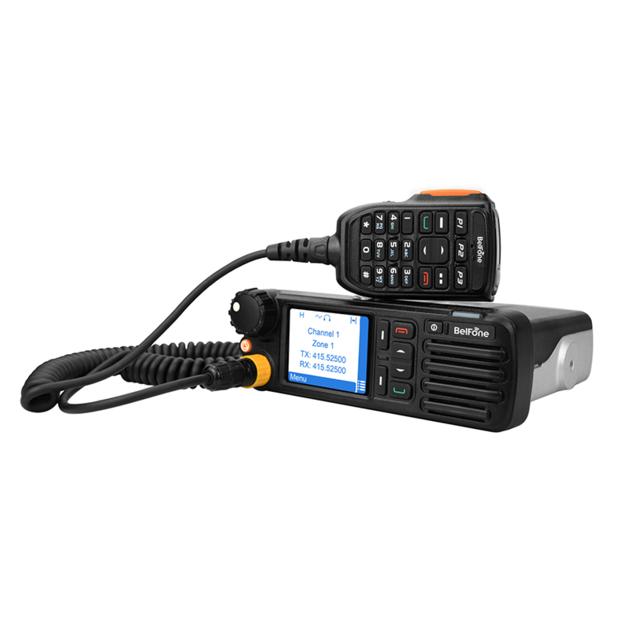

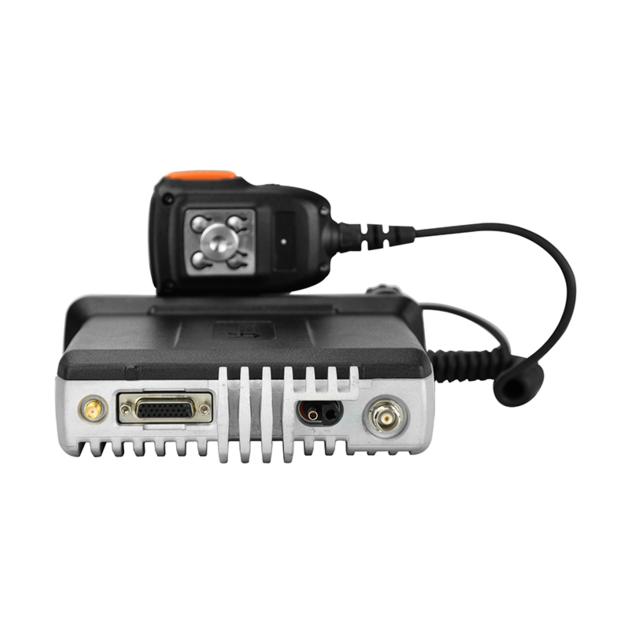

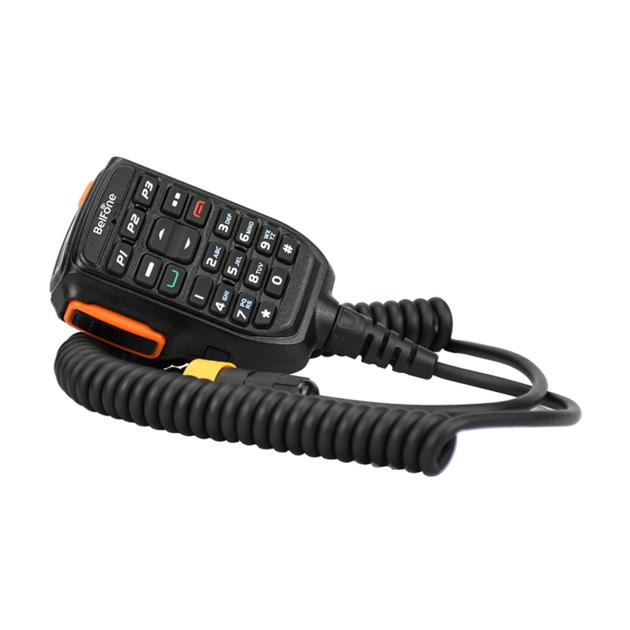

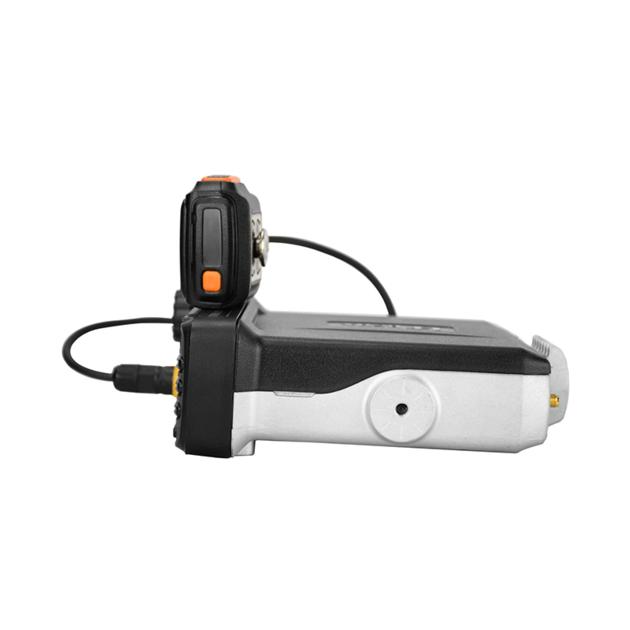

Belfone VHF/UHF Digital Enhanced Trunking Mobile Radio (BF-TM950)
| Price: | US$ 426 / Piece |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Xiamen |
Product Details
| Model No.: | BF-TM950 | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General
Frequency Range VHF: 136-174MHz; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channel Capacity 1024 Zones 64 Channel Spacing 12.5KHz Working Voltage DC13.8V (¯15%)) Frequency Stability ¯1.5ppm Antenna Impedance 50Ω Dimension 175(L)* 175(W)* 63(H) mm Weight 1.51kg Operating Temperature -20ºC~+70ºC Storage Temperature -40ºC~+80ºC Transmitter Power Output H:30W; L:10W 4FSK Modulation 12.5KHz (data only): 7K60FXD; 12.5KkHz (data and voice): 7K60FXE FM Modulation 12.5KHz: 8K50F3E Modulation Limitation +/- 2.5KHz @ 12.5KHz FM Noise -40dB Spurious Emission -36 dBm≤1GHz; -30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE +2™ Audio Distortion ≤3% Receiver Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.25 uV (12 dB SINAD) Intermodulation 60dB Adjacent Channel Selectivity 60dB Spurious Response Suppression 70dB FM Noise -40dB Frequency Response +1/-3 dB Audio Power 3W Audio Distortion ≤3% (typical) Conduction Radiation -57dBm GPS Precision Horizontal Accuracy ≤-10m (with good signal) TTFF (first location) Cold Boot <1 minute(with good signal) TTFF (first location) Hot Boot <10 seconds (with good signal) |
Packaging & Delivery
| Packaging: | Standard Carton Box Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
With strong anti-interference, this efficient mobile radio works in different modes, including DMR Tier III trunking, MPT1327, DMR Tier II and analog conventional, ensuring its interoperability with the legacy analog networks. Operated on a desktop or mounted in a vehicle, its flexible design enables great performance through its simple operation via the handheld microphone, making it an ideal solution for public security, rescue, utilities, etc.
Professional Industrial Design
- Control panel with a 2.8-inch display
- Remote mount head supported. The mobile radio receiver and transmitter could be separated, which is convenient for flexible installation on car or motorcycle.
Enhanced Communication Efficiency
- Incorporating ground-breaking full-duplex call technology to allow simultaneous two-way voice calls.
- DMR Trunking Mode enables access to a pool of radio channels, which are dynamically allocated to users when required.
Four Modes
- It works in DMR Tier III, MPT 1327, DMR Tier II & Analog Conventional mode, seamlessly switching between networks with uninterrupted communication experience.
Enhanced Worker Safety
Lone worker, emergency calls, covert mode, GPS and location services, active and positive alarm mode ensure personnel safety.
|
