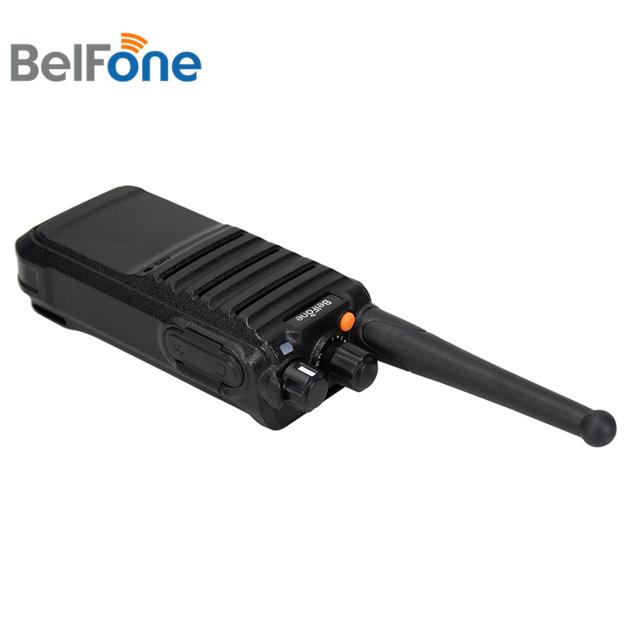

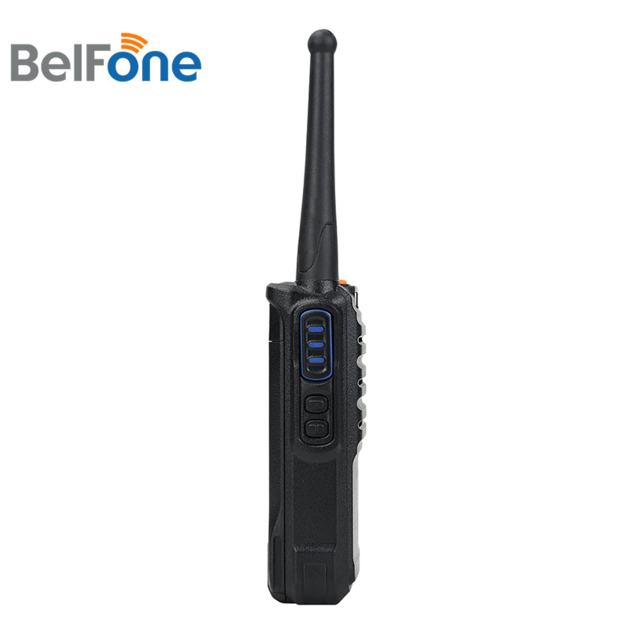

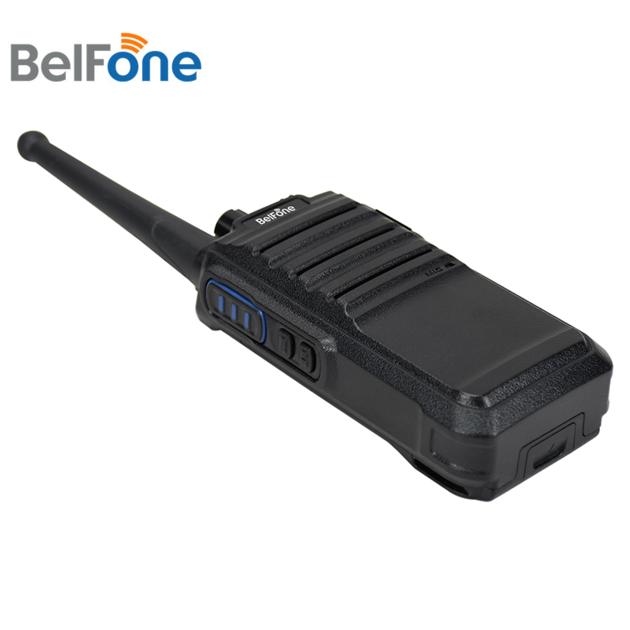

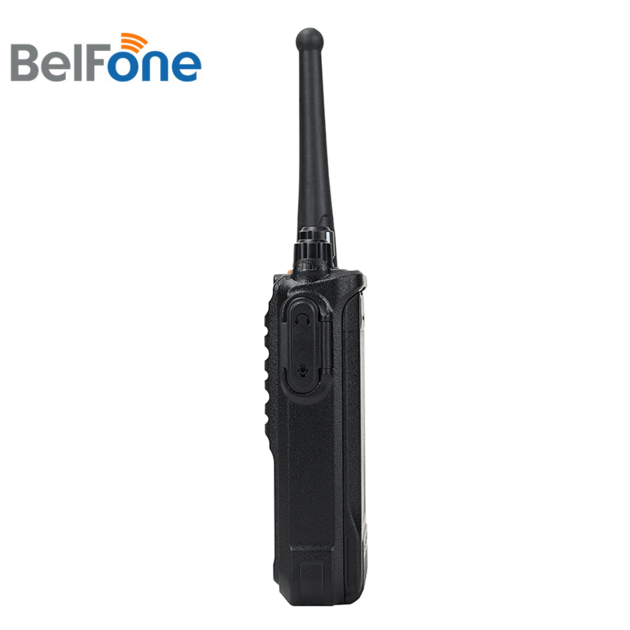

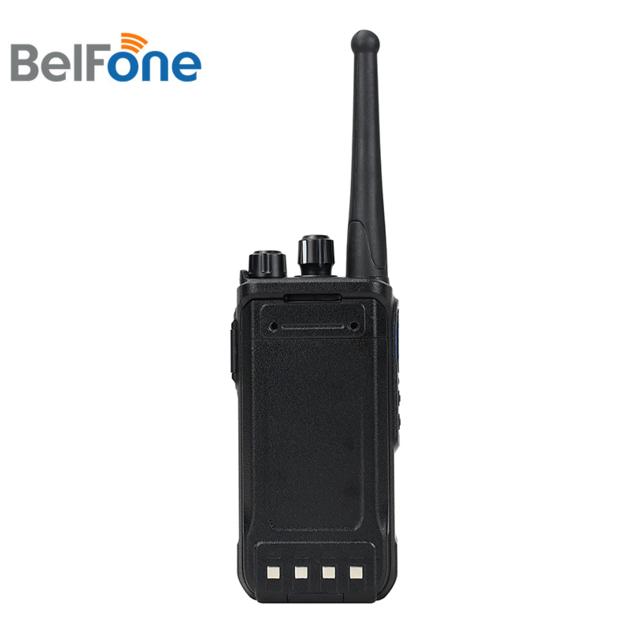

Belfone Newest Economic Dmr Digital Radio Walkie Talkie (BF-TD516)
| Price: | US$ 67 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen/Xiamen |
Product Details
| Model No.: | BF-TD516 | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General:
Frequency Range: VHF: 136-174MHz; UHF: 350-390 MHz/400-480 MHz/ 450-520MHz Channels: 32 Zones: 2 Channel Spacing: 12.5KHz/25KHz Working Voltage: DC7.4V (¯20％) Frequency Stability: ¯1.5ppm Antenna Impedance: 50Ω Battery Capacity: Real 1800mAh Battery Average Working Time: Digital 18 hours; Analog 13 hours Dimension: 59.7 (L)* 35 (W)* 114(H) mm Weight: 264g (including battery) Transmitter: Power Output: High power: 5W; Middle power: 3W; Low power: 1W 4FSK Modulation: 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation: 12.5KHz: 8K50FXD; 25KHz: 16KΦF3E Modulation Limitation: +/- 2.5KHz FM Noise: -40dB Spurious Emission: -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power: ≤-60dB Frequency Response: +1/-3dB Vocoder: AMBE+2™ Audio Distortion: ＜3% Receiver: Digital Sensitivity: 5% BER: 0.25 uV Analog Sensitivity: 0.25 uV (12 dB SINAD) Intermodulation: 65dB Adjacent Channel Selectivity: 60dB Spurious Suppression: 70dB FM Noise: -40dB Frequency Response: +1/-3 dB Audio Power: 500mW Audio Distortion: 3% (typical) Conduction Radiation: -57 dBm Environmental Specifications: Operating Temperature: -20℃~+60℃ Storage Temperature: -30℃~+85℃ Water Proof: IP54 Shock & Vibration: MIL-STD-810C/D/E/F |
Packaging & Delivery
| Packaging: | Standard Carton Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
BF-TD516 is a DMR entry-level portable designed to appeal to European citizens who want to enjoy radio communications without having to apply for licenses. With loud and crystal clear audio, a longer battery life, and of course a higher spectrum efficiency delivered by a 12.5KHz channel spacing, BF-TD516 gives you a whole package of basic digital features and promises a wonderful user experience.
Excellent Audio Quality
The FEC technology and AMBE+2TM vocoder deliver a clear and crisp audio.
Compatible with Motorola Audio Accessories
BF-TD516 is compatible with Motorola audio accessories. So, if you already have a Motorola analog earpiece or microphone, you can pair them with BelFone BF-TD516 and go hand-free.
Digital/Analog Mixed Mode
Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.
Small Size and Light Weight
BF-TD516 is small and light enough to be held easily and comfortably in a single hand. It is also very easy to operate.
Private Call, Group Call And All Call (programmable)
The versatile calling functions bring more efficiency to your teamwork.
Scan/Monitor (programmable)
At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.
|
