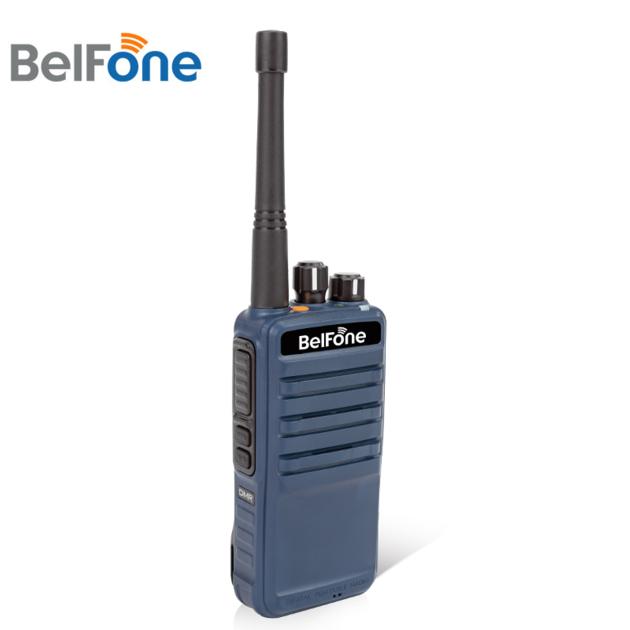

Belfone Intrinsically Safe Two Way Radios Explosion Proof Walkie Talkie BF-TD510Ex
| Price: | US$ 214 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen/Xiamen |
Product Details
| Model No.: | BF-TD510EX | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General:
Frequency Range: VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channels: 160 Zones: 32 Channel Spacing: 12.5KHz/ 25KHz Working Voltage: DC7.4V (¯20％) Frequency Stability: ¯1.5ppm Antenna Impedance: 50Ω Battery Capacity: 1500mAh Battery Average Working Time: Digital 16 hours; Analog 12 hours Dimension: 60.8(L)* 35.7(W)* 118.5(H) mm Weight: 250g (including battery pack) Transmitter: Power Output: High power: 3.5W; Low power: 1W 4FSK Modulation: 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation: 12.5KHz: 8K50F3E/ 25KHz: 16KφF3E Modulation Limitation: +/- 2.5KHz FM Noise: -40dB Spurious Emission: -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power: ≤-60dB Frequency Response: +1/-3dB Vocoder: AMBE++ Audio Distortion: ≤3% Receiver: Digital Sensitivity: 5% BER: 0.25 uV Analog Sensitivity: 0.25 uV (12 dB SINAD) Intermodulation: 60dB Adjacent Channel Selectivity: 60dB Spurious Suppression: 60dB FM Noise: -40dB Frequency Response: +1/-3 dB Audio Power: 1.5W Audio Distortion: 3% (typical) Conduction Radiation: -57dBm GPS Precision: Horizontal Accuracy ≤10m (with good signal) TTFF (first location) Cold Boot: ＜1 minute(with good signal) TTFF (first location) Hot Boot: ＜10 seconds (with good signal) Environmental Specifications: Operating Temperature: -30℃~+60℃ Storage Temperature: -40℃~+85℃ Water Proof: IP67 Shock & Vibration: MIL-STD-810C/D/E/F Explosion-Proof: Ex ib IIB T4 GB |
Packaging & Delivery
| Packaging: | Standard Carton Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
BF-TD510Ex are CNEX Ex in IIB T4 GB certified explosion-proof two-way radio designed for potentially explosive work environments in industries like oil and petroleum, chemicals, mining, emergency response, and firefighting and rescue. They also come with a rich feature kit to further empower the user to brave his work environment and complete his task. With TDMA 2 timeslots, built-in GPS, voice recording and more, BF-TD510Ex are your best explosion-proof radio solutions.
IIB T4 GB
BF-TD510Ex are two intrinsically safe DMR two-way radios with an explosion-proof circuit design as well as a shatter-resistant structure. Their optimal stability and safety easily meet the challenges of explosive work environments.
Voice Recording
With a 32G memory, BF-TD510 Ex can support over 400 hours' communications. These radios allow you to record and share your voice easily, replaying your communications during the operation. These are two explosion-proof radios with a good and long memory.
Advanced Encryption with ARC4 & AES256
The ARC4 Technology together with AES256 keeps your communications safe and private, optimizing your information safety.
GPS Positioning
With built-in GPS, the user can track the whereabouts of a radio whenever he wants. You can know where all your workers are in real-time.
DMO True 2-slots
In direct mode these radios support two voice calls simultaneously due to DMR two timeslots, which means two communication paths at one frequency with no extra costs.
Personnel Safety
If a worker slips or falls, the radio will immediately activate the integrated Mandown function and transmit a signal to other radios for help. The Lone Worker feature and Emergency Alarm are also available in case of any accident.
Digital/Analog Dual Modes
This enables BF-TD510Ex to receive both digital and analog signals on the same channel and can automatically switch into a matching mode for efficient communications.
IP67 Protection
BF-TD510Ex are tightly sealed against dust, spills, sprays and unexpected showers, ensuring outstanding performance in challenging environments.
|
