Belfone Explosion-Proof Dmr Two Way Radio Intrinsically Safe Walkie Talkie (BF-TD930Ex)
| Price: | US$ 403 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen/Xiamen |
Product Details
| Model No.: | BF-TD930Ex | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General:
Frequency Range: 350-400MHz;400-480MHz Channel Capacity: 1024 Zone: 128 Channel Spacing: 12.5KHz/25KHz Operating Voltage: DC 7.4V (¯20%) Battery Capacity: 3350 mAh Battery Average Working Time (5/5/90): 30 hours Frequency Stability: ¯0.5ppm Antenna Impedance: 50Ω Outline Dimension: 56（L）* 36(W)* 129(H)mm Weight: 360g(Including battery) Transmitter: RF Output Power: High Power：2.5W/Low Power：1.0W 4FSK Modulation: 12.5kHz(data only)：7K60FXD ; 12.5kHz (data and audio)：7K60FXE FM Modulation: 12.5 kHz：8K50F3E；25 kHz：16K0F3E； Modulation Restriction: ¯[email protected]；¯5.0kHz@25kHz FM Noise: [email protected]/45dB@25kHz Conducted Emission: -36dBm<1GHz/-30dBm>1GHz Adjacent Channel Power: ≤-60dB Audio Response: +1/-3 dB Audio Distortion: ≤5% Receiver: Digital Sensitivity: 5% BER：0.22uV Intermodulation Immunity: 65dB @ 12.5/25kHz Adjacent Channel Selectivity: 60dB @ 12.5kHz； Spurious Response: 70 dB@ 12.5/25kHz FM Noise: 40dB @ 12.5kHz；45dB @ 25kHz Audio Response: +1/-3 dB Rated Audio Output Power: 0.5W（8Ωload） Audio Distortion: ≤5% Conducted Spurious Emission: -57dBm Satellite Position Accuracy: Horizontal Accuracy ≤10m (with well signal) TTFF (Time To First Fix) cold start.: <60 Seconds (with well signal) TTFF (Time To First Fix) hot start: <10 Seconds (with well signal) Environmental Specifications: Working Temperature: -30℃—+70℃ ; -20℃—+40℃(explosion-proof environment) Storage Temperature: -40℃—+85℃ Damp Proof: MIL-STD-810C/D/E/F Impact And Vibration.: MIL-STD-810C/D/E/F Dustproof & waterproof: IP68 Gas Explosion-Proof Grade: Ex ib IIB T4 Gb Dust Explosion-Proof Grade: Ex ibD 21 T130℃ |
Packaging & Delivery
| Packaging: | Standard Carton Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description

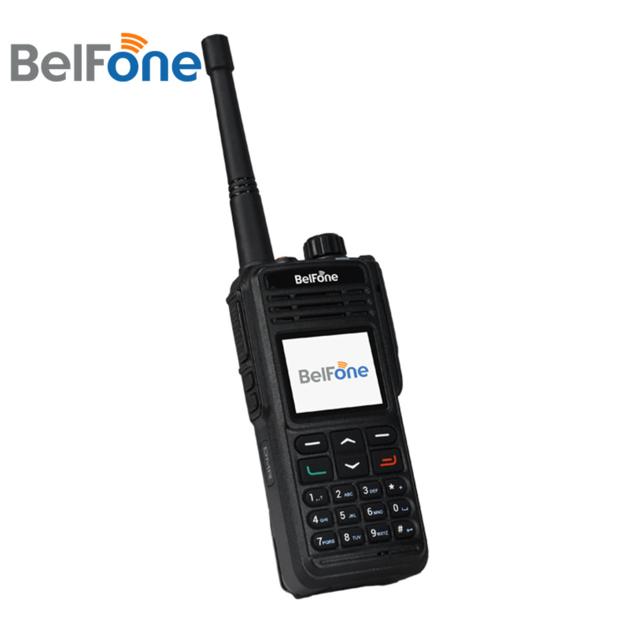

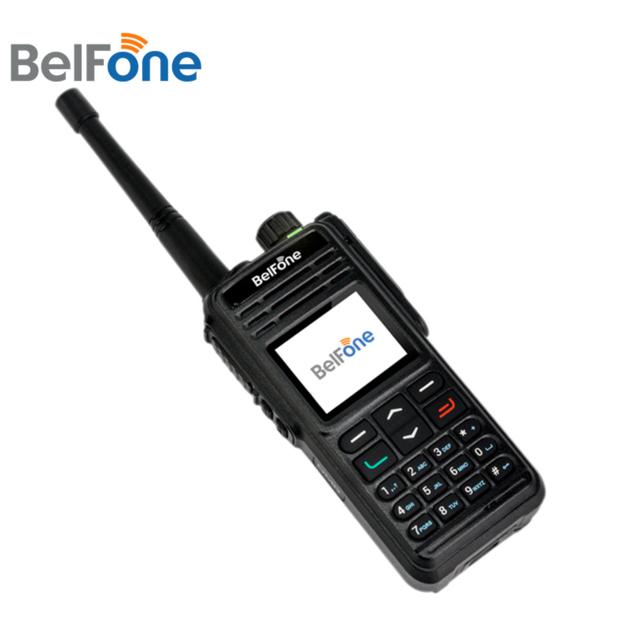

BF-TD930Ex Explosion-Proof digital two-way radio is a high-performance and multi-functional digital terminal product. It supports DMR conventional, DMR Trunking, analog conventional and other popular communication systems. Digital conventional supports rich personalized functions, including full duplex call, single frequency repeater, ad hoc network, and smart IP interconnection system. This device meets the testing requirements of the national military standard, the American Standard MIL-STD-810G, and passed the gas explosion-proof certification of ex IB IIB T4 GB and the dust explosion-proof certification of ex IBD 21 T130. The product adopts military standard design requirements and meets IP68 dust and water proof. The 1.77-inch IPS display makes it possible to be visible under strong light and to smooth the operations.
Double explosion certification
Five working modes
Full duplex call
Satellite positioning
Same frequency repeater (single frequency repeater)
Ad hoc network (optional)
Multiple alarm
IP68 protection
Intelligent IP interconnection system and RFID card punching
Voice encryption
Rich application functions
|
