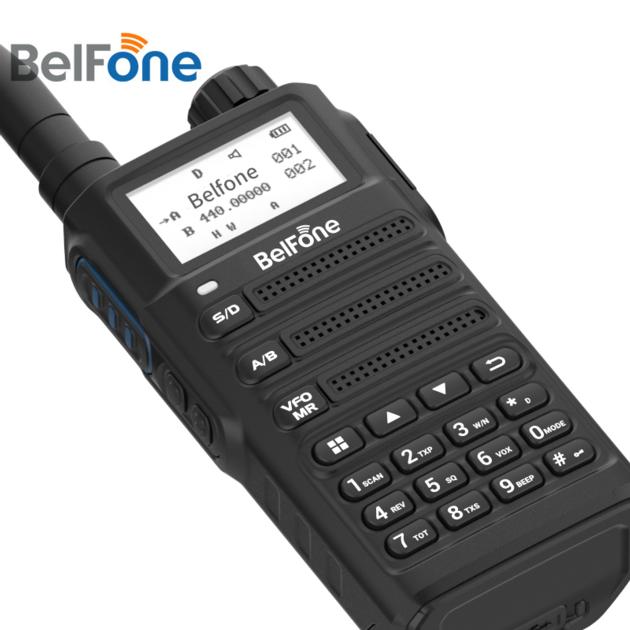

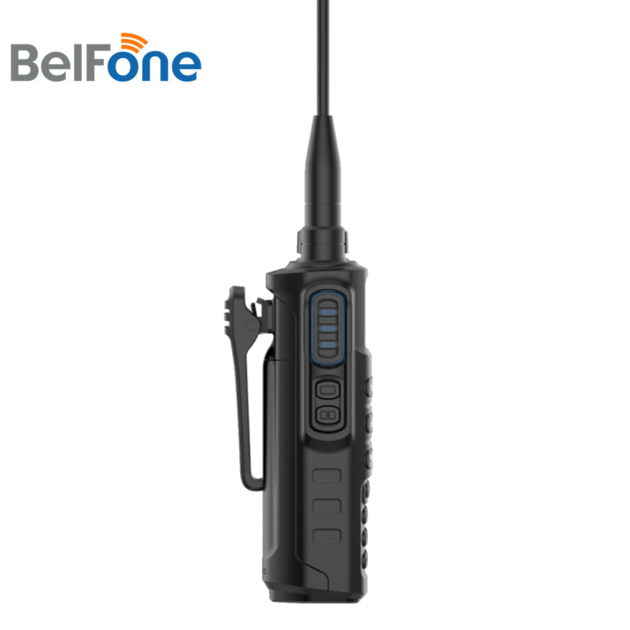

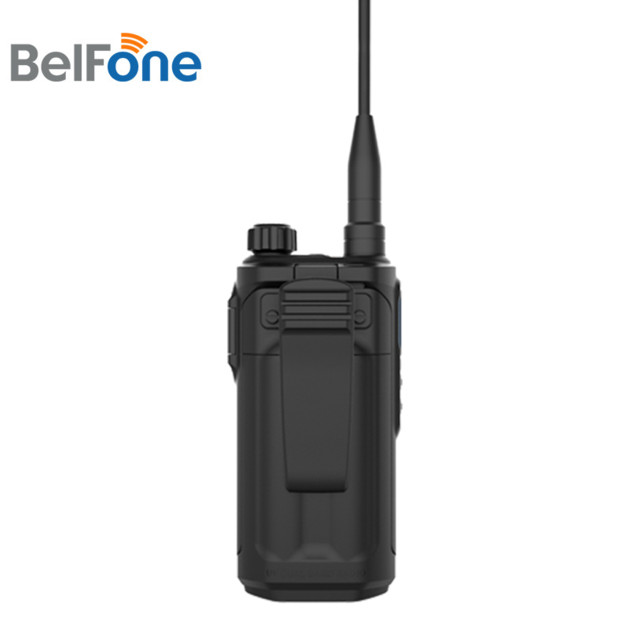

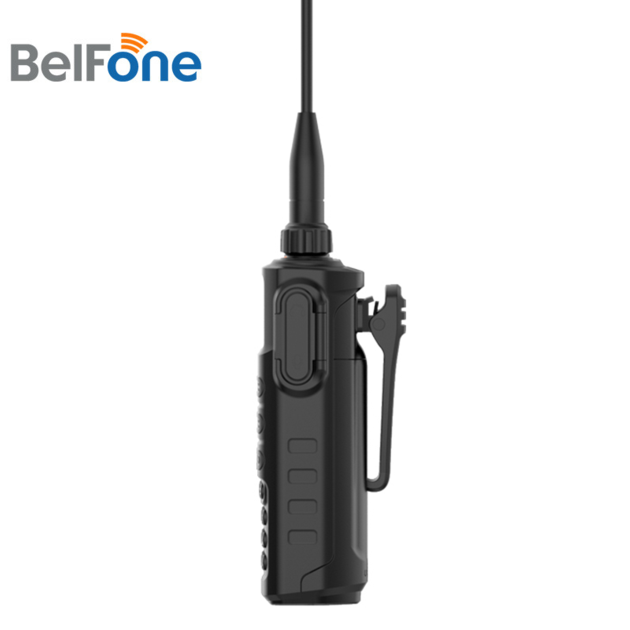

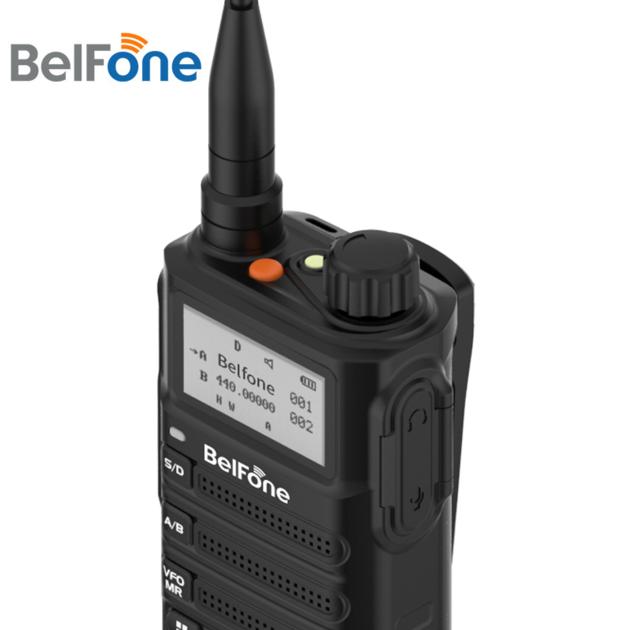

Belfone Dual Band Portable Two Way Radio VHF UHF Transceiver (BF-SC500UV)
| Price: | US$ 50 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | shenzhen/ Xiamen |
Product Details
| Model No.: | BF-SC500UV | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General:
Frequency Range: UHF:400-470MHz Channel Capacity: 16 Channel Spacing: 25KHz(width)/12.5KHz(narrow) Working Temperature: -20℃～＋60℃ Antenna Impedance: 50Ω Operating Voltage: DC 7.4V(¯20%) Battery Capacity: 2000mAh(Li-ion) Frequency Stability: ¯2.5ppm Dimensions: 61(L)×37(W)×132(H)mm Weight: 242g(including battery pack) Transmitter: Power Output: H: 7W L: 1W Modulation: 16K ￠F3E(width) 8K￠F3E(narrow) Rated Audio Distortion: 0.05 Adjacent Power: ≥65 dB(wide)/60 dB(narrow) Modulation Limitation: ≤5KHz(width)/2.5KHz(narrow) Receiver: Sensitivity: ≤-123dB（12dB SINAD） Adjacent Selectivity: ≥60dB(width)/ 55dB(narrow) Intermodulation Rejection Ratio: ≥60dB(width)/ 55dB(narrow) Spurious Suppression: ≥60dB(width)/ 55dB(narrow) Rated Audio Output Power: 500 mW Rated Audio Distortion: 0.05 |
Packaging & Delivery
| Packaging: | Standard Carton Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
UV Dual Bands
BF-SC500UV is capable of cross-band operation. When not transmitting, it can receive both VHF signals and UHF signals, although not simultaneously. The users can keep two talk groups at the same time, delivering more convenience.
Switchable Powers
The user can switch transmitting power (H:5W/ M:3W/ L:1W) according to his specific communication needs, which makes BF-SC500UV way more flexible and convenient than most.
VOX
With a paired microphone, the user can active the transmitting function through voice only and no longer needs to press the PTT button.
Lighting/ Flashlight
The built-in flashlight drives darkness away when the user is operating in a dark environment. BF-SC500UV brings more light into your work and life.
Wide/Narrow Bands Switchable
This function enables the user to set your bandwidth (two optional bandwidth, wide bandwidth: (25KHz)narrow bandwidth: (12.5KHz)). Screen display "W" means wide bandwidth& screen display "N" means narrow bandwidth.
CTCSS/CDCSS and STE
This can effectively prevent interferences from other conversations at the same frequency. Unwanted signals are filtered out
|
