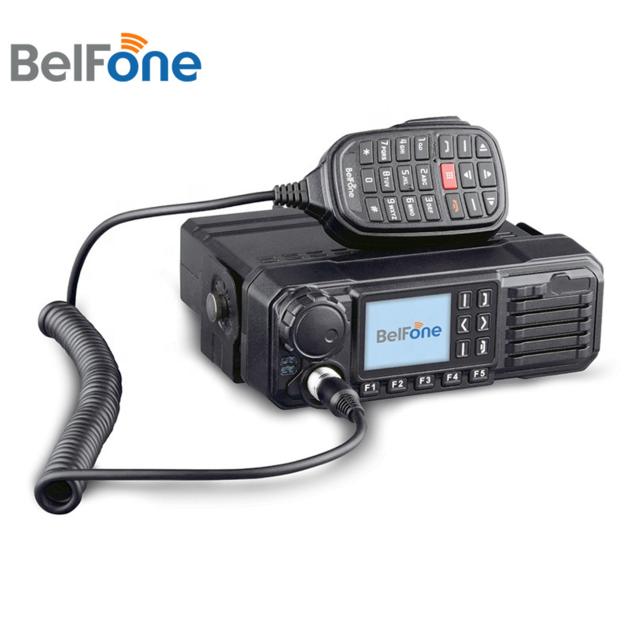

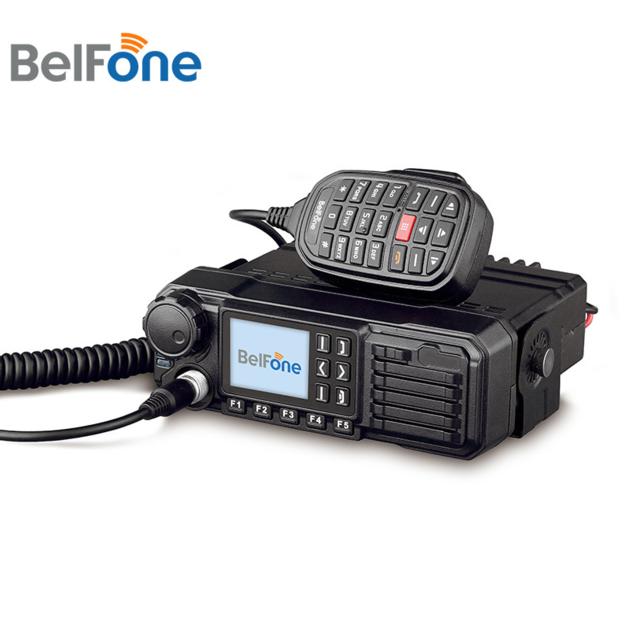

Belfone Best Mobile Walkie Talkie Two Way Radio for Car Mount (BF-TM8250)
| Price: | US$ 347 |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen/Xiamen |
Product Details
| Model No.: | BF-TM8250 | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General:
Frequency Range: VHF: 136-174MHz; UHF: 350-390MHz,UHF: 400-470MHz Zones: 128 Channel Capacity: 1024 Channel Spacing: 12.5KHz/25KHz Operating Voltage: DC 13.8V(¯20%) Frequency Stability: ¯1.5ppm Antenna Impedance: 50Ω Dimensions: Radio: 175(L)*175(W)*63(H) mm; Microphone: 130(L)*62(W)*25(H) mm Weight: 1448g Bluetooth: BT5.0 Transmitter: RF Output Power: High Power: 50W; Middle Power: 25W; Low Power: 10W 4FSK Modulation: Only Data: 7K60FXD; Data and Audio: 7K60FXE FM Modulation: 12.5 kHz: 8K50F3E; 25 kHz: 16KΦF3E; Modulation Limiting: +/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz FM Noise: -40dB Conducted Emission: -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power: ≤-60dB Audio Response: +1/-3 dB Audio Distortion: 0.03 Digital Voice coder Type: AMBE Receiver: Digital Sensitivity: 5% BER: 0.25 uV Analog Sensitivity: 0.28 uV (12 dB SINAD) Intermodulation: 65 dB Adjacent Channel Selectivity: 60 dB Spurious Response Rejection: 70 dB FM Noise: -45 dB Audio Response: +1/-3 dB Rated Audio Output Power: 3W(loudspeaker) Maximum Audio Output Power: 4.5W(loudspeaker) Audio Distortion: 3 %(Typical) Conducted Spurious Emission: -57dBm Positioning Accuracy: Horizontal Accuracy≤10m (with well signal) TTFF (Time To First Fix) Cold Start: < 1minuter(with well signal) TTFF (Time To First Fix) Hot Start: < 1minuter(with well signal) Environmental Specifications: Operating Temperature: -20℃—+60℃ Storage Temperature: -20℃—+70℃ Humidity: MIL-STD-810G Vibration & Shock: MIL-STD-810G |
Packaging & Delivery
| Packaging: | Standard Carton Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
DMR Tier II mobile radio TM8250 is designed to use in the smart dispatch patrol system which provides versatile voice and data service for critical communication. With a multi-sites roaming function, TM8250 creates wide area coverage and automatically roams from one coverage area to another with no manual intervention. Featured with superb audio, integrated GPS, text messaging TM8250 enables you to keep track of every organization member and keep in touch at all times. Voice announcement for different statuses frees users to concentrate on the work.
GPS Positioning and Tracking
You can track vehicles and assets without having to purchase, install or maintain additional equipment. It can send its GPS position to the dispatch system in real-time.
DMO True 2-Slot
Indirect mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths on 1 frequency at no extra costs or frequency license.
Multi Sites Roaming Function
Create wide coverage by automatically roaming from one coverage area to another without any manual operations.
Status Voice Prompt
This user-friendly function enables the driver to keep eyes on the road.
Radio Priority-based Interruption
This function enables a radio with a higher level to interrupt communications between radios with lower levels. This means better dispatching efficiency.
Bright, Color LCD Display
The built-in high contrast color display is easy to read in all kinds of light.
Power-on Password
Nobody can mess with your work.
Transmit Interrupt
This function enables a supervisor to interrupt a radio conversation in order to clear a channel for more important communications. This greatly facilitates dispatching work.
Compatible with BelFone SDP System
BF-TM8250 is fully compatible with our SDP system.
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | Fujian BelFone Communications Technology Co., Ltd. | ||
| City/State | Quanzhou, Fujian | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 1989 |
| Member Since: | 2023 | Contact Person | Jerome Xue |
