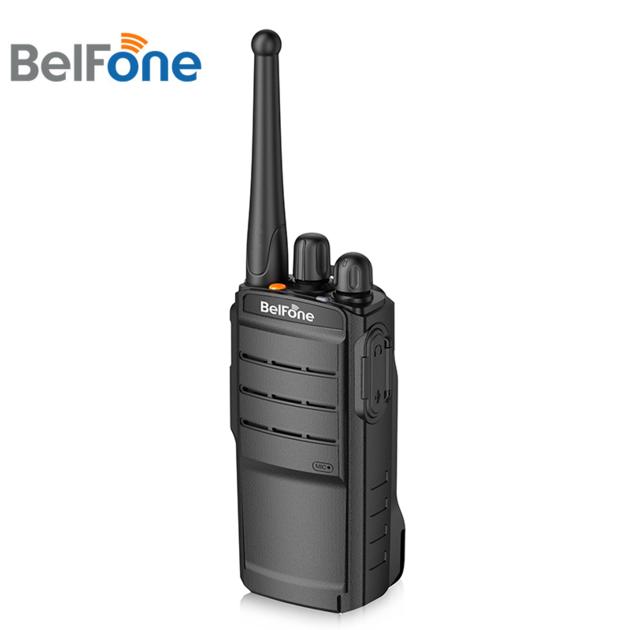

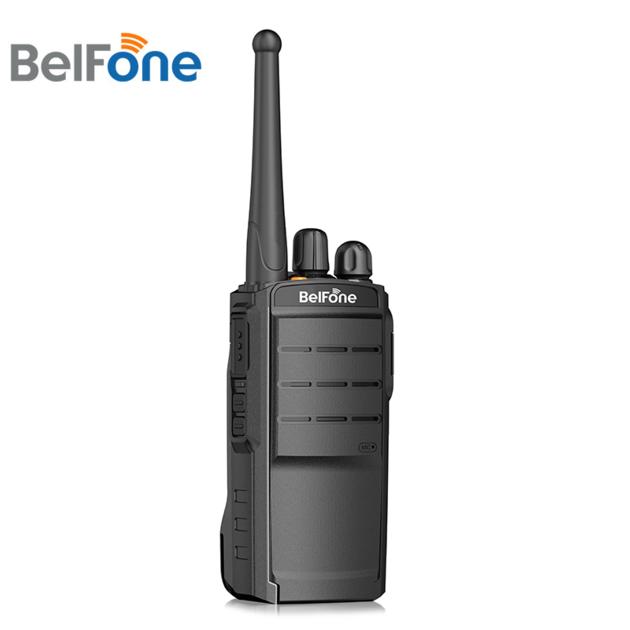

BelFone BF-TD520 DMR Cheap Price Ptt Radio Walkie Talkie
| Price: | US$ 52 / Piece |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T |
| Port of Export: | Xiamen |
Product Details
| Model No.: | BF-TD520 | Brand Name: | BelFone |
|---|
| Certification: | |
|---|---|
| Specification: |
General
Frequency Range VHF: 136-174MHz; UHF: 350-390 MHz/400-480 MHz/ 450-520MHz Channels 256 Zones 16 Channel Spacing 12.5KHz/25KHz Working Voltage DC7.4V (¯20%) Frequency Stability ¯1.5ppm Antenna Impedance 50Ω Battery Capacity Real 2000mAh Battery Average Working Time Digital 20 hours; Analog 15 hours Dimension 60(L)* 40(W)* 117(H) mm Weight 274g (including battery) Transmitter Power Output High power: 5W; Middle power: 3W; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50FXD; 25KHz: 16KΦF3E Modulation Limitation +/- 2.5KHz FM Noise -40dB Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE+2™ Audio Distortion <3% Receiver Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.25 uV (12 dB SINAD) Intermodulation 65dB Adjacent Channel Selectivity 60dB Spurious Suppression 70dB FM Noise -40dB Frequency Response +1/-3 dB Audio Power 500mW Audio Distortion 3% (typical) Conduction Radiation -57 dBm Environmental Specifications Operating Temperature -20ºC~+60ºC Storage Temperature -30ºC~+85ºC Water Proof IP54 Shock & Vibration MIL-STD-810C/D/E/F |
Packaging & Delivery
| Packaging: | Standard Carton Box Packaging |
|---|---|
| Delivery/Lead Time: | 15 Days |
| Production Capacity: | 100000 Pieces/Month |
Product Description
As an entry level DMR handheld two-way radio, BF-TD520 is a perfect analog replacement for small businesses. BF-TD520 delivers a basic set of digital features such as superb audio, long battery life, higher spectrum efficiency, enabling the user to experience digital communications and a smooth transition from analog to digital. This is the most cost-effective two-way radio for restaurants, hotels, shops other indoor users.
Digital/Analog Dual Modes
BF-TD520 gives you a smooth transition from the analog world to the digital.
A Longer Battery Life
BF-TD520 can function longer than any conventional analog radios, meeting the battery needs of a long-day operation.
Excellent Audio Quality
The integrated SELP vocoder delivers clear and crisp audio.
Private Call, Group Call And All Call (Programmable)
The versatile calling functions bring more efficiency to your teamwork.
Scan/ Monitor (Programmable)
At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.
Compatible with Motorola Audio Accessories
BF-TD520 is compatible with Motorola audio accessories. So, if you already have a Motorola analog earpiece or microphone, you can pair them with BelFone BF-TD520 and go hand-free.
TDMA 2-slots
In repeater mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.
Digital/Analog Mixed Mode
Receive both analog and digital signals on a single channel and can automatically switch into the relevant mode for efficient communications.
|
