Battery Pack Monitoring Module for Unmanned Rooms and Scenes
| Price: | US$ 95 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | BMS100 | Brand Name: | BLIIoT |
|---|
| Certification: | |
|---|---|
| Specification: | Battery pack monitoring module BMS100 is specially developed for battery pack monitoring in unmanned rooms and unattended scenes. It adopts 9-60VDC wide voltage power supply and can measure 12 single battery voltages of 2V, 6V and 12V, and can measure battery packs in groups, up to 6 groups, the total battery pack voltage that can be measured is 300V, and 2 analog inputs are reserved for measuring Battery pack total current total voltage and battery pack temperature. It can be connected to BLIIoT IOT cloud and seamlessly connected to SCADA. |
Packaging & Delivery
| Packaging: | - |
|---|---|
| Delivery/Lead Time: | 1-7days |
| Production Capacity: | 9999 pieces per week |
Product Description

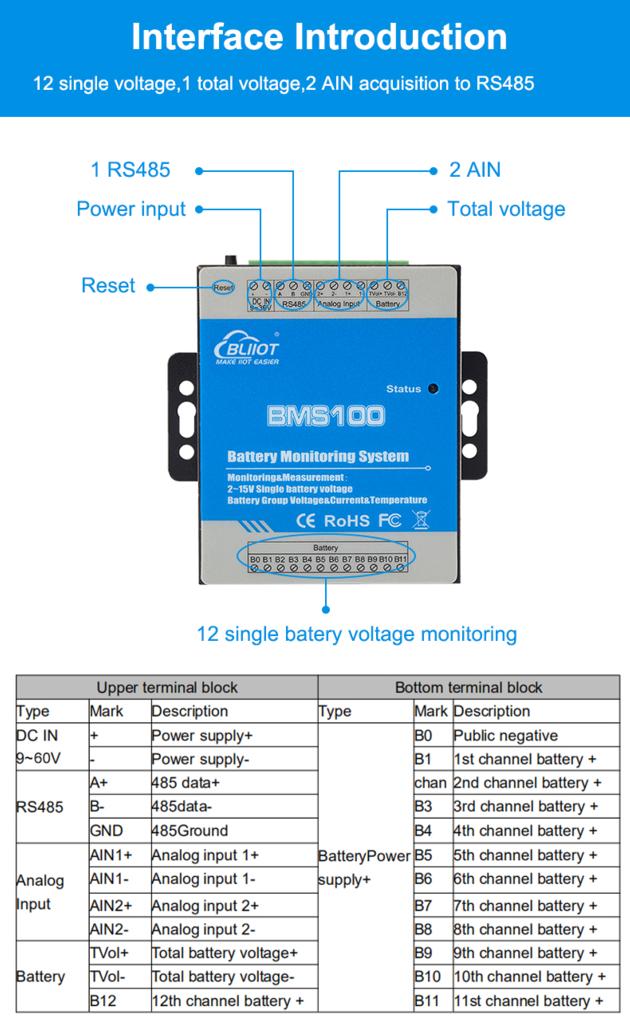

1.Can measure 12 way basic voltage, 1 way total voltage; support 12 sections of 2V, 6V, 12V single battery voltage monitoring, total voltage Max. 300VDC;
2.Support 2 analog inputs, optional 4-20mA or 0-5V, plus the corresponding instrument supports battery pack total current, total voltage, temperature real-time measurement;

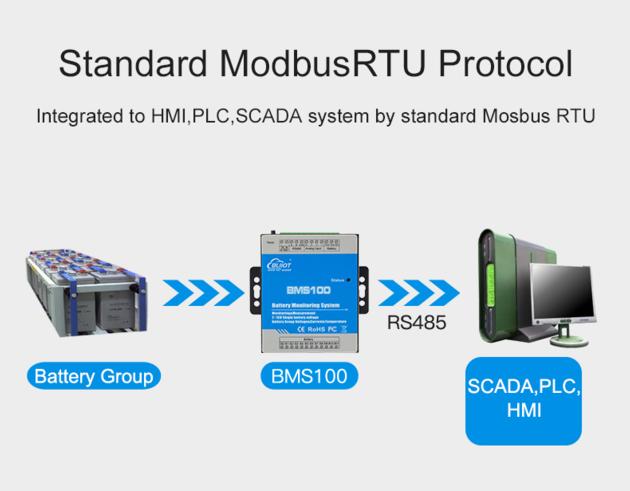

3.1 ESD protection RS485 serial port , support Modbus RTU protocol, add BLIIoT Modbus gateway can upload all the data of the device to the cloud, and realize SMS, phone and WeChat alarm for over limit threshold;
4.Support battery series, cascade, parallel, grouping a variety of wiring methods;
5.Cascade to monitor small battery packs of more than 12 cells;
6.Support group monitoring of battery pack voltage, up to 6 groups.
|
